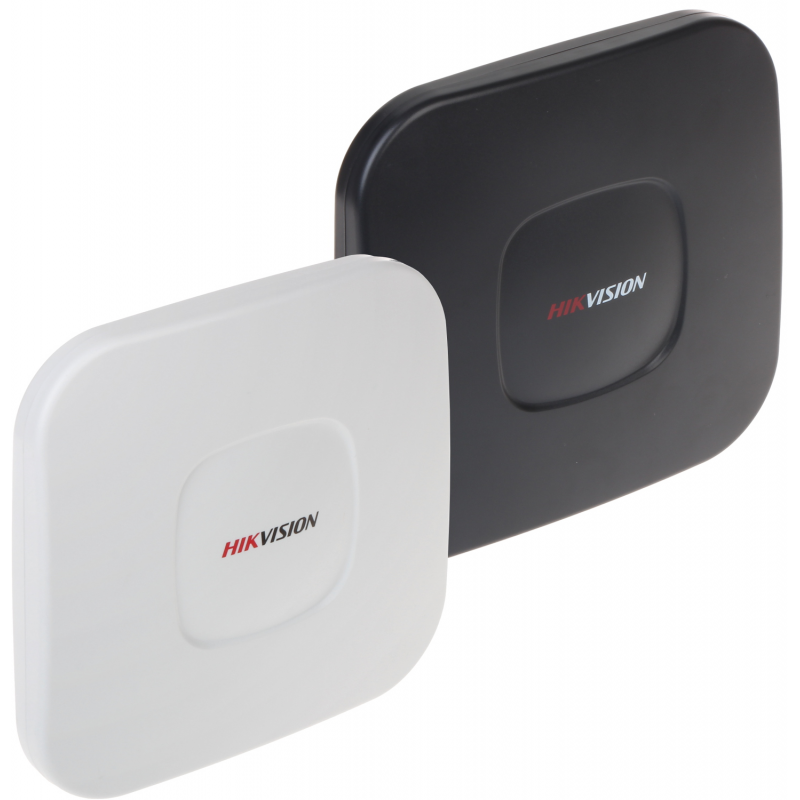

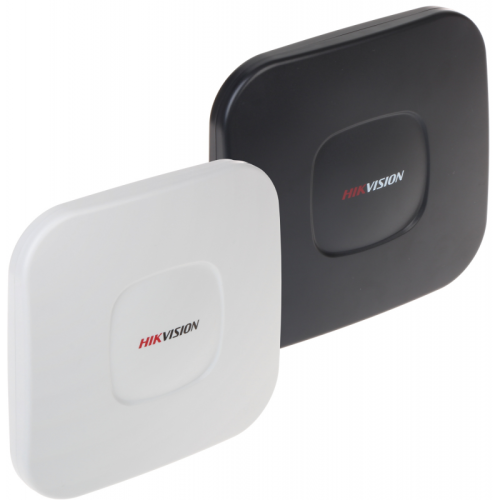

DS-3WF01C-2N/O

Most bezprzewodowy zewnętrzny. Wbudowana antena 12dBi, H: 60st., V: 30st.. Przepustowość 20 M/40 MHz. Odległość transmisji bezprzewodowej do 3 km. Zasilanie za pomocą dołączonego adaptera poprzez pasywny PoE. Szeroki zakres temperatur: -30st.~60st., waga 0.80 kg, wymiary 270mm x 94.86mm x 67.5mm...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3WF01C-2N/O
Wireless Bridge

DS-3WF01C-2N/O wireless bridge can be applied in
industries, such as wireless video surveillance for elevator,
tower cranes, community, factories, park and farm. With
IEEE 802.11n standard, it can achieve up to 150 Mbps
wireless video/data transmission speed at 2.4 GHz.



Feature and Function
• Up to 3 km wireless transmission distance
• 150 Mbps 802.11n wireless
• Built-in 12 dBi high gain antenna
• Point-to-Point, Point-to-Multipoint
• Passive PoE power supply for easy installation

Package Content
• DS-3WF01C-2N/O
• Power Adapter (12V, 1A)
• PoE Injector
• Pole Mounting Straps
• Quick Start Guide







Specification
Model DS-3WF01C-2N/O
Wireless
Standard IEEE 802.11 b/g/n
Operating frequency 2.4 GHz (Note: Available channel may vary depending on local regulations)
Antenna Internal, Gain: 12 dBi, Horizontal: 60° Vertical: 30°
Output power
27 dBm (Note: Maximum output power may vary in different channels
depending on local regulations)
Receive sensitivity -96±1.5 dBm@1 Mbps, -72±1.5 dBm@MCS7
Wireless link rate 150 Mbps
Maximum power consumption 4.3 W
Installation Pole or wall mounting
Hardware
Power supply 12 V/1 A Passive PoE
Passive PoE power supply distance Up to 60 meters with Cat.5e or better
Interface 10/100 Mbps Base-TX x 2
Reset button 1
Operating temperature -30°C ~ 60°C (-22°F ~140°F)
Storage temperature -30°C ~ 70°C (-22°F ~158°F)
Operating humidity 10% - 90% RH (non-condensing)
Dimensions 270mm x 94.86mm x 67.5mm
LED Indicator 1 x PoE/LAN LED, 3 x Signal strength LEDs(LED1, LED2, LED3)
Net Weight 0.74 kg
Gross Weight 0.80 kg
Software
Encryption WPA-PSK, WPA2-PSK
Transparent Bridge Support
SSID Hide Support
SSID Quantity 1
Default Login IP Default IP 192.168.1.36
Diagnostics Tool Signal Scanning
Device Management HTTPS, SSH
Default User Name Admin
Log Function System log check
Configuration Management Support web configuration
Firmware Update Support firmware update by web page
Bandwidth 20 M/40 MHz



Physical Interface

SN Port/Button Description
①
RST
Reset Button. After the device is powered on for about 1 minute, hold down this button for about 8
seconds, then release it. When all the LED indicators light up, the device is restored to factory settings.
②
LAN
10/100 Mbps automatic negotiation RJ45 port.
Used to connect to a switch, computer, or other wired devices.
③
PoE/LAN/WAN
It is used to supply power or transmit data.
Use the included PoE injector to supply power to the device.
④ - Ethernet cable inlet.

Indicator Description

Indicator Status Description
PoE/LAN
Solid on
The power is supplied to the device properly, and no data is being transmitted
over the port.
Blinking Data is being transmitted over the port.
Off No power is supplied to the device.
LED1/LED2/LED3
Received signal
strength indicator
Solid on
Bridged successfully.
 LED1, LED2 and LED3 are solid on: Good signal
 LED1 and LED2 are solid on, and LED3 is off: Fair signal
 LED1 is solid on, and LED2 and LED3 are off: Weak signal. Please adjust the
direction or location of your devices.
Off
The received signal strength does not reach the minimum threshold of the signal
strength LED indicators.





Available Model
• DS-3WF01C-2N/O

Dimension (unit: mm)





Typical Application
