DS-3E1510P-SI

Switch 8 kanałowy PoE Gigabit ; inteligentne zarządzanie: zarządzanie topologią sieci, alarmy push, monitoring stanu sieci ; zasięg PoE do 300m ; ochrona przed spięciem do 6KV ; automatyczny restart kamer nie odpowiadających ; porty: 8x gigabit PoE, 2x Gigabit światłowodowe ; typ portów: RJ45 port, full duplex, MDI/MDI-X adaptive ; standard PoE: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z ; Metoda transmisji: store-and-forward ; tryb pracy: standardowy(domyślny), rozszerzony ; przepustowość 20 Gbps ; Porty PoE:1-8 ; max moc na porcie 30W ; budżet mocy 110W ; obudowa: metal, model bez wiatraka ; waga bez opakowania: 1.21kg ; wymiary: 217.6 mm × 108.55 mm × 27.8 mm ; temperatura pracy: -10°C do 55°C ; zasilanie 48 VDC, 2.5 A ; pobór mocy: 7-120 W ; storm control ; port mirroring ; QoS: WRR i SP ; 4094 VLAN ; STP i RSTP ; SNMPv1 i SNMPv2 ;...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

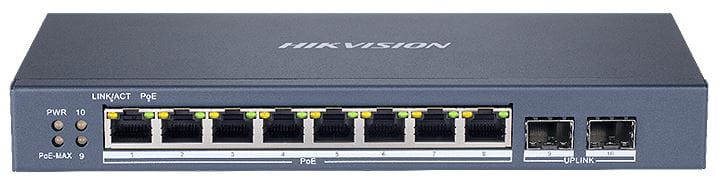

DS-3E1510P-SI
Smart Managed 8-Port Gigabit PoE Switch


Smart managed switches are developed by Hikvision,
featuring in easy management and maintenance. You can
easily deploy, monitor and expand your security system
anytime and anywhere with our software platforms. You
can view the network topology, monitor the health of the
network and receive device alarms in real time, which
greatly reduces the cost of network operation and
maintenance.




 8 x gigabit PoE ports, and 2 x gigabit fiber optical ports.
 IEEE 802.3at/af standard for PoE ports.
 Network topology management, alarm push, network health monitor.
 6 KV surge protection for PoE ports.
 AF/AT camera can reach up to 300 m in extend mode.
 PoE watchdog to auto detect and restart the cameras that do not respond.
 Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.





 Specification
Model DS-3E1510P-SI
PoE Power
Supply
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port PoE: Ports 1 to 8
Max. Port Power Port 1 to 8: 30 W
PoE Power Budget 110 W
Network
Parameters
Port Number 8 x gigabit PoE port, and 2 x gigabit fiber optical port
Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding Mode Store-and-forward switching
Working Mode
Standard mode (default)
Extend mode
MAC Address Table 8 K
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
Internal Cache 4.1 Mbits
Software
Function
Device Maintenance
Remote upgrade, default parameters recovery, logs viewing, basic network
parameters configuration, import and export configuration, time sync
Port Configuration Port rate configuration, flow control, and ports enabling
Long Range Up to 300 m transmission
PoE Configuration
PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not
respond.
PoE enabling: Support
Port Rate-Limiting Rate-limiting for ingress and egress ports
Storm Control Storm control of unknown unicast, multicast and broadcast
Port Mirroring Support
Link Aggregation Static link aggregation supported
Port Isolation Ports in isolation group cannot communicate with each other.
QoS WRR and SP scheduling and port priority
VLAN 4094 VLANs
STP STP and RSTP protocols
SNMP
SNMPv1 and SNMPv2c supported for obtaining node information of the
system and interfaces
LLDP
LLDP protocol supported for port configuration, global configuration and
neighbor discovery
General
Shell Metal material
Net Weight 1.21 kg (2.67 lb)
Gross Weight 1.3 kg (2.87 lb)
Dimension (W x H x D) 217.6 mm x 108.55 mm x 27.8 mm (8.57” x 4.27” x 1.09”)
Operating Temperature -10°C to 55°C (14°F to 131°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)



Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 48 VDC, 2.5 A
Max. Power Consumption 120 W
Power Consumption in Idle 7 W
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC
61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1:
2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32:
2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC
62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009
+A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)
No.1907/2006)





 Physical Interface











 Available Model
DS-3E1510P-SI



 Dimension (unit: mm)





















 Typical Application
