DS-3E1510P-E

Switch zarządzalny PoE, posiadający 8 portów x Gigabit PoE, 2 porty światłowodowe x Gigabit SFP , typ portów: RJ45 port, Full duplex, MDI/MDI-X adaptive; standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z ; Przepustowość: 20 Gbps; Szybkość przekazywania pakietów: 14.88Mpps; Wymiary: 217.6 mm x 108.55 mm x 27.8 mm; Waga: 1.3kg; Temperatura pracy: -10 st.C to 55 st.C; Zasilanie: 48 VDC,2.5 A, Zasięg transmisji do 300m, PoE watchdog, Port mirroring, VLAN, QoS, SNM, Kontrola systemowa...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3E1510P-E
Gigabit Web-Managed PoE Switch


Key Feature
• 8 x gigabit PoE ports, and 2 x gigabit fiber optical ports.
• IEEE 802.3at/af standard for PoE ports.
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• PoE output power management.
• Gigabit network access design.
• Wire-speed forwarding.
• Store-and-forward switching.
• Various layer 2 management protocols such as STP/RSTP, VLAN, link aggregation, SNMP, QoS and so on.
• Port management.
• Web management.
• Solid high-strength metal shell.
• Reliable fan-free design.




DS-3E1510P-E switches are layer 2 PoE switches,
providing advanced PoE power supply technology and
Gigabit networks design on the basis of high-
performance access. The switches support Web
management, various layer 2 management protocols
such as STP/RSTP, VLAN, link aggregation, SNMP, QoS
and so on to ensure the data is uploaded steadily.





Specification
Model DS-3E1510P-E
Network
parameters
Port number 8 x gigabit PoE ports, and 2 x gigabit fiber optical ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
MAC address table 8 K
Switching capacity 20 Gbps
Packet forwarding rate 14.88 Mpps
Internal cache 4.1 Mbits
PoE power
supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin Ethernet cables 1/2/3/6 provide power supply.
PoE port Ports 1 to 8
Max. port power 30 W
PoE power budget 110 W
General
Shell Metal material, fan-free design
Net weight 1.21 kg (2.67 lb)
Gross weight 1.3 kg (2.87 lb)
Dimension (L x H x D) 217.6 mm x 108.55 mm x 27.8 mm (8.57” x 4.27” x 1.09”)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Relative humidity 5% to 95% (no condensation)
Power supply 48 VDC, 2.5 A
Power source 120 W
Max. power consumption 120 W
Power consumption in
idle
7 W
Software
function Device maintenance
Support remote upgrade, recovering default parameters, viewing logs,
configuring basic network parameters, import and export
configuration, time sync.
Port configuration
Support the configuration of port rate and slow control, and ports
enabling.
Long range Support up to 300 m transmission.
PoE watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
Port rate-limiting Support rate-limiting for ingress and egress ports..
Storm control
Support the storm control of unknown unicast, multicast and
broadcast.
Port mirroring Support port mirroring function.
QoS Support WRR and SP scheduling and port priority.
VLAN Support 128 VLANs.
STP Support STP and RSTP.
SNMP
Support SNMPv1 and SNMPv2c, the node information for system and
interfaces acquisition.
PoE Support IEEE 802.3at/af power supply.




Physical Interface

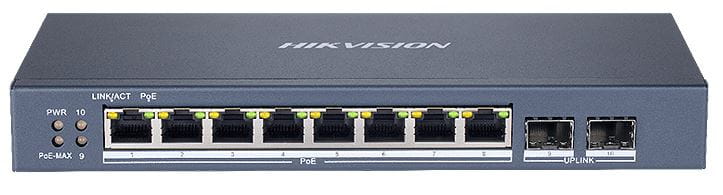

Front panel:

Back panel:


Available Model
DS-3E1510P-E

Dimension (unit: mm)






Typical Application
