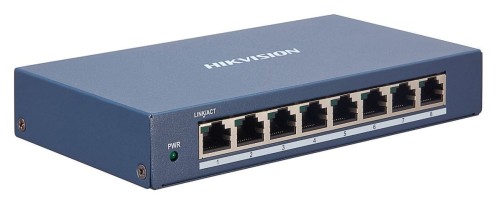

DS-3E1508-EI

Switch serii smart manager, można zarządzać topologią sieci, monitorować stan sieci; posiadający 8 portów gigabit RJ45; typ portu: RJ45 port, full duplex, MDI/MDI-X adaptive; standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab; Tryb przekazywania: Store-and-forward switching; Tryb pracy: Standard (default); Tablica adresów MAC 4K; Przepustowość: 16 Gbps; Szybkość przekazywania pakietów 11.904 Mpps; Wewnętrzna pamięć podręczna 1.5 Mbits; Waga:0.36kg; wymiary: 170 mm x 27.6 mm x 93.1 mm; Temperatura pracy -10st.C do 55st.C; zasilanie: 5 VDC, 1 A; Funkcje software: Konserwacja (Obsługa zdalnej aktualizacji, odzyskiwanie domyślnych parametrów, przeglądanie dzienników(log), konfigurowanie podstawowych parametrów sieci), wyświetlanie topologii, konfiguracja portów, link aggregation, zarzadzanie siecią, statystka portów....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS -3E 15 08 -EI
Smart Managed 8-Port Gigabit Switch








Key Feature
• 8 x gigabit fiber optical ports.
• Gigabit network access design.
• Network topology management, alarm push, network health monitor.
• Solid high-strength metal shell.
• Reliable fan -free design.



Smart managed switches are developed by Hikvision,
featuring in easy management and maintenance. You
can easily deploy, monitor and expand your surveillance
system anytime and anywhere with our software
platforms. You can view the network topology, monitor
the health of the network and receive device alarms in
real time, which greatly reduces the cost of network
operation and maintenance.




Visualized Topology Management
Network Health Monitor

Real-Time Alarm Push
Video Control and Preview


Specification
Model DS -3E1508-EI
Network
parameters
Port number 8 x gigabit fiber optical ports
Port type RJ45 port, full duplex, MDI/MDI -X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab
Forwarding mode Store -and-forward switching
Working mode Standard mode (default )
MAC address table 4 K
Switching capacity 16 Gbps
Packet forwarding rate 11.904 Mpps
Internal cache 1.5 Mbits
General
Shell Metal material, fan -free design
Weight 0.36 kg (0.79 lb)
Dimension (L x H x D) 170 mm x 27.6 mm x 93.1 mm (6.69” x 1.09” x 3.67” )
Operating temperature -10 °C to 55 °C (14°F to 131° F)
Storage temperature -40 °C to 85°C (-40 °F to 185°F)
Operating humidity 5% to 95% (no condensation)
Relative humidity 5% to 95% (no condensation)
Power supply 5 VDC, 1 A
Power source 5 W
Max. power consumption 5 W
Software
function
Device maintenance
Support remote upgrade, recovering default parameters, viewing logs,
configuring basic network parameters.
Typology display Support typology display.
Port configuration Support rate, flow control, and switch configuration
Link aggregation
Support static link aggregation with up to 2 aggregation groups and up
to 4 ports in each group.
Device status alarm Support the device status alarm.
Network management Support client management.
Port statistics
Support port transmitting/receiving real -time rate statistics, 7-day
transmitting/receiving peak rate statistics.
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE -EMC (EN 55032: 2015, EN 61000-
3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM
(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950 -1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE -LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry CE -RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)
No 1907/2006)





Physical Interface
Front panel:

Rear panel:


Available Model
DS -3E15 08 -EI

Dimension (unit: mm)




Typical Application
