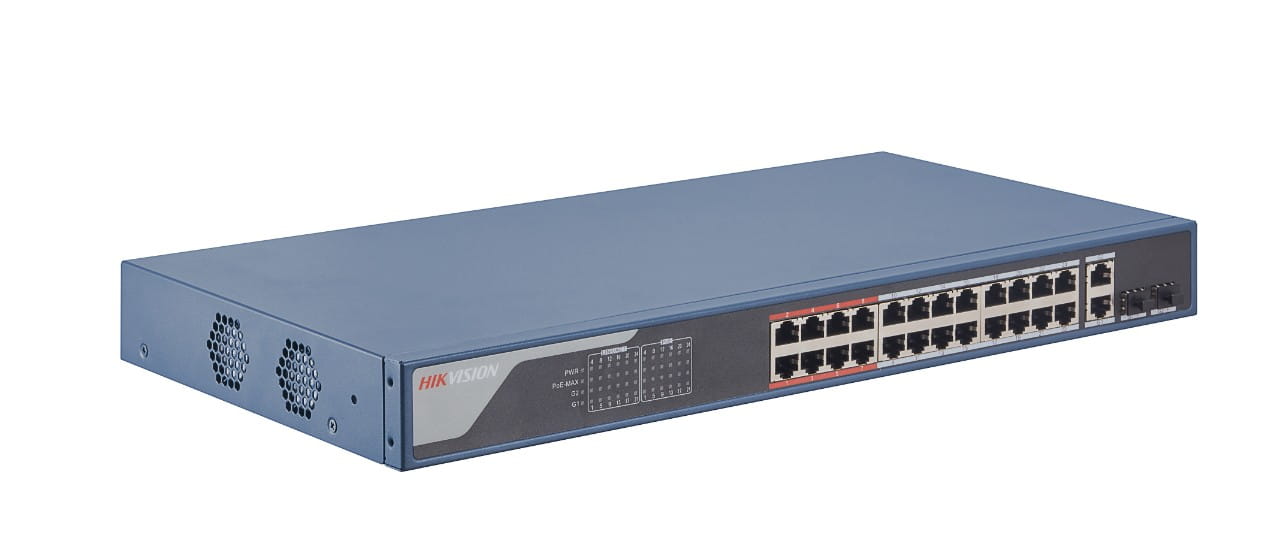

DS-3E1326P-EI

Dostępność: 101-500
Cena: 1 414,00 zł 1414.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 301802305

Opis

Switch serii smart manager, można zarządzać topologią sieci, monitorować stan sieci ; posiadający 24 × 100 Mbps PoE RJ45 ports, and 2 × gigabit combos.; typ portu: RJ45 port, full duplex, MDI/MDI-X adaptive; standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab i IEEE 802.3z; Porty 1-24 do transmisji na duże odległości; wysoki priorytet dla portów 1-8; Tryb przekazywania: Store-and-forward switching; Tryb pracy: Standard mode (default), Extend mode; Tablica adresów MAC 16K; Przepustowość: 8.8Gbps; Szybkość przekazywania pakietów 6.5472 Mpps; Wewnętrzna pamięć podręczna 4 Mbits; Waga:2.83kg; wymiary: 440 mm × 44 mm × 221 mm; Temperatura pracy -10st.C do 55st.C; zasilanie: 100~240 VAC, 50/60Hz, Max. 6.5 A; Funkcje software: Konserwacja (Obsługa zdalnej aktualizacji, odzyskiwanie domyślnych parametrów, przeglądanie dzienników(log), konfigurowanie podstawowych parametrów sieci), wyświetlanie topologii, konfiguracja portów, funkcje PoE, porty VIP, link aggregation, zarzadzanie siecią, statystka portów. ZASILANIE PoE: standard PoE dla portów 1-24 IEEE 802.3af, IEEE 802.3at; max .moc portu:30W; max budżet mocy: 370 W...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-3E1326P-EI
Smart Managed 24-Port 100 Mbps PoE Switch







Key Feature
• 24 x 100 Mbps PoE RJ45 ports, 2 x gigabit combos.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode.




Smart managed switches are developed by Hikvision,
featuring in easy management and maintenance. You
can easily deploy, monitor and expand your surveillance
system anytime and anywhere with our software
platforms. You can view the network topology, monitor
the health of the network and receive device alarms in
real time, which greatly reduces the cost of network
operation and maintenance.





Visualized Topology Management
Network Health Monitor

Real-Time Alarm Push
Video Control and Preview


Specification
Model DS-3E1326P-EI
Network
parameters
Port number 24 x 100 Mbps PoE RJ45 ports, and 2 x gigabit combos.
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab and IEEE 802.3z
Forwarding mode Store-and-forward switching
Working mode Standard mode (default), Extend mode
High priority ports Ports 1 to 8
Ports for long-distance
transmission
Ports 1 to 24
MAC address table 16 K
Switching capacity 8.8 Gbps
Packet forwarding rate 6.5472 Mpps
Internal cache 4 Mbits
PoE power
supply
PoE standard Ports 1 to 24: IEEE 802.3af, IEEE 802.3at
PoE power pin
Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply
simultaneously.
PoE port Ports 1 to 24
Max. port power 30 W
PoE power budget 370 W
Software
function
Device maintenance
Support remote upgrade, recovering default parameters, viewing logs,
configuring basic network parameters.
Typology display Support typology display.
Port configuration Support rate, flow control, and switch configuration
PoE function IEEE 802.3at/af device provides power supply.
VIP ports function Support data of ports in red area forwarded in priority.
Link aggregation Support G1, G2 port static link aggregation
Device status alarm Support the device status, PoE_MAX and PoE status alarm.
Network management Support client management.
Port statistics Support port transmitting/receiving real-time rate statistics, 7-day
transmitting/receiving peak rate statistics.
General
Shell Metal material, fan-free design
Net Weight 2.83 kg (6.24 lb)
Dimension (L x H x D) 440 mm x 44 mm x 221 mm (4.76” x 3.47” x 1.09”)
Operating temperature -10°C to 55°C (14°F to 131°F)
Storage temperature -40°C to 85°C (-40°F to 185°F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 100~240 VAC, 50/60Hz, Max. 6.5 A
Max. power consumption 400 W
Power source 400 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-
3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM
(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-
LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)
No 1907/2006)



Physical Interface
Front panel:

Rear panel:


Available Model
DS-3E1326P-EI

Dimension (unit: mm)





Typical Application
