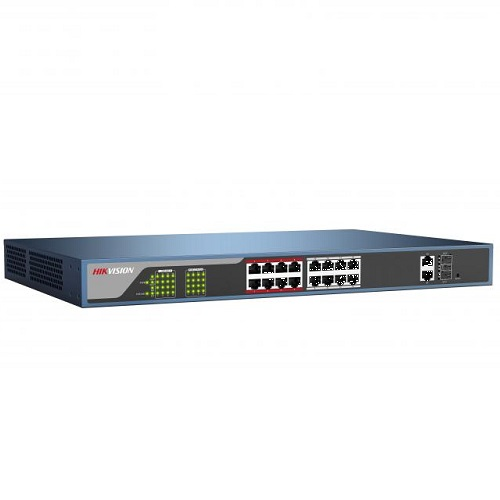

DS-3E1318P-E

Dostępność: 1-5
Cena: 1 436,00 zł 1436.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 301800859

Opis

Switch L2, zarządzanie WWW, 16 x port 100M PoE, 2 x port 1000M combo, 802.3af/at, budżet PoE 230W...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:



DS -3E 131 8 P - E
Web-Managed PoE Switch


• 802.3af/at PoE Standard
• VLAN configurable,
• STP, multicast, port mirroring, QoS, and SNMP
• Extend mode: cable transmission distance up to 820 ft (250 m)
• Guaranteed video data transmission due to buffer optimization



The DS-3E1310P-E is a 10/100 Mbps
web-managed switch that is designed for
IP surveillance applications. Easily
configured via a Web interface, users can
setup VLANs, port mirroring, SNMP, and
more. Or, they can just as easily use
default settings, while still taking advantage
of unique hardware features, such as
outdoor power surge protection, optimized
VIP ports, and extended power mode for
longer cable runs to IP cameras. Hikvision
we b -managed switches provide the right
mix of features to help reduce the cost of
installation and maintenance.

Available Model: D S-3E 1 318 P-E (16 100M PoE
electrical ports and 2 1000M COMBO ports)

















Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St -Laurent, Quebec, Canada, H4R 2P1
Tel: +1-909 -895 -0400 • Toll Free in USA: +1 -866 -200 -6690 • E -Mail: sales.usa@hikvision.com • www.hikvision.com
© 201 7 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 051817 NA 

Specifications

DS-3E01318P-E

Ports
10/100M RJ45 16
10/100/1000M RJ45 2
1000M SFP 2 (multiplex)
High Priority Ports Port 1 of 8
Performance
Store-and-Forward Support
MAC Address Table 4K
MAC Address Learning Automatic learning / aging
Backplane Bandwidth 7.2 Gbps
PoE
PoE Standard IEEE 802.3af, IEEE802.3at
PoE Cable Core Supports 8-core power supply and simultaneous power supply via the 1236 and 4578 line order
PoE Port Ports 1 to 16
Port Maximum Power 30 W
Switch Max. Power 230W
Lightning Protection
Grade
For Port 4 kV
For Power Supply 6 kV
Operating Environment
Working Environment Temperature: 32° F to 104° F (0° C to 40° C); Humidity: 10 % to 90 % (relative humidity, without
condensation)
Storage Environment Temperature: -40° F to 158° F (-40° C to 70° C); Humidity: 5 % to 90 % (relative humidity, without
condensation)
General
Power Supply 100 to 240 VAC, 170 W
Data Transfer Rate Ethernet: 10 Mbps (half-duplex) / 20 Mbps (full-duplex); Fast Ethernet: 100 Mbps (half-duplex) / 200
Mbps (full-duplex); Gigabit Ethernet: 2000 Mbps (full-duplex)
Network Media Ethernet: UTP/STP of CAT3 or above; Fast Ethernet: UTP/STP of CAT5 or above; Gigabit Ethernet:
Recommended UTP/STP with CAT5e or CAT6 ;1000 Base -SX: MMF (Multi -Mode Fiber) ;1000
Base-LX: MMF (Multi-Mode Fiber) or SMF (Single Mode Fiber)
Network Standard IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3af, IEEE802.3at, IEEE 802.3x, IEEE802.3z
Port When Extend mode is enabled, the maximum data transmission (for 10 Mbps full / half duplex
communication only) and power supply distance can be extended to 820 ft (250 m) via a CAT5e
twisted pair, or higher.
PoE IEEE 802.3at/IEEE 802.3af; Enable / Disable PoE; PoE over-temperature protection; Display power
supply status and output power of the PoE port; Dynamic power supply of the PoE port. Power supply
priority (Port 1 > Port 2 > … > Port 16… > Port 24)
Security Feature MAC address binding
VLAN One-key enable VLAN; Port VLAN (Max. 18/26 groups can be configured); IEEE 802.1Q VLAN
(maximum 31 groups can be configured)
Port Trunk 3 groups: Port 1, 2, 3, and 4; Port 5, 6, 7, and 8; Port G1 / G1-F and G2 / G2-F
STP (Spanning Tree)
IEEE 802.1d Spanning Tree Protocol; IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Multicast
IGMP Snooping and IGMP v1 / v2
Mirroring
N: 1 port mirroring
QoS
FIFO (First-in First-out); SP (Strict Priority); WP (Weighted Priority)
MAC Address
Management
MAC address aging and static MAC address configuration
Loading and Upgrade
HTTP upgrade; Import / export configuration file
Management and
Maintenance
SNMP v1 / v2; WEB management

Landmark




No. Description
1 LEDs
2 PoE Port
3 Uplink Ports
4 SFP Ports
