DS-3E1310P-SI

Switch serii smart manager, można zarządzać topologią sieci, monitorować stan sieci; posiadający 8 × 100 Mbps PoE RJ45 ports, and 2 × gigabit network RJ45 port; typ portu: RJ45 port, full duplex, MDI/MDI-X adaptive; standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab; Porty 1-6 do transmisji na duże odległości do 300m;Tryb przekazywania: Store-and-forward switching; Tryb pracy: Standard mode (default), Extend mode; Tablica adresów MAC 16K; Przepustowość: 3.6Gbps; Szybkość przekazywania pakietów 2.6784 Mpps; Wewnętrzna pamięć podręczna 4 Mbits; Waga:0.35kg; wymiary: 170 mm × 27.6 mm × 93.1 mm; Temperatura pracy 0°C do 40°C; zasilanie: 48 VDC, 2.5 A; Funkcje software: Konserwacja (Obsługa zdalnej aktualizacji, odzyskiwanie domyślnych parametrów, przeglądanie dzienników(log), konfigurowanie podstawowych parametrów sieci), wyświetlanie topologii, konfiguracja portów, funkcje PoE, porty VIP, zarzadzanie siecią, statystka portów. ZASILANIE PoE: standard PoE dla portów 1-8 IEEE 802.3af, IEEE 802.3at; max .moc portu:30W; max budżet mocy: 110 W...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

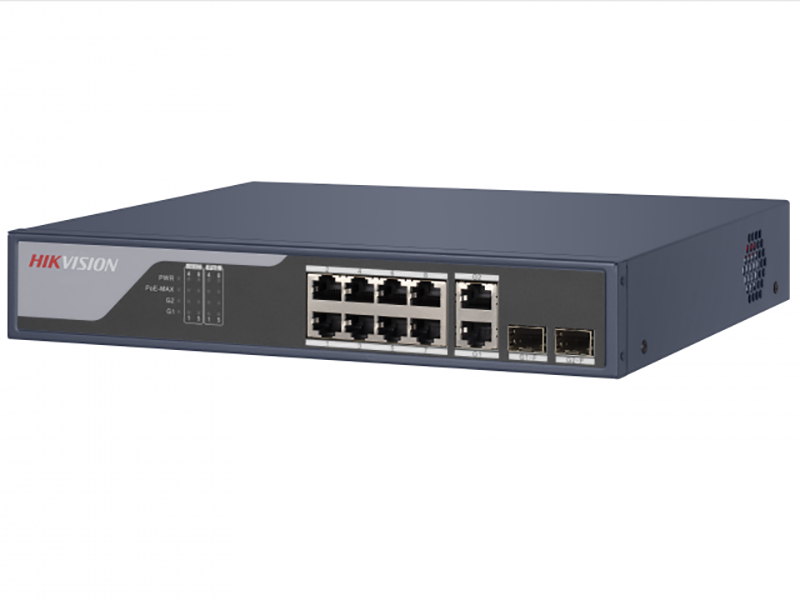

DS-3E1310P-SI
Smart Managed 8-Port 100 Mbps PoE Switch



Smart managed switches are developed by Hikvision,
featuring in easy management and maintenance. You can
easily deploy, monitor and expand your surveillance system
anytime and anywhere with our software platforms. You
can view the network topology, monitor the health of the
network and receive device alarms in real time, which
greatly reduces the cost of network operation and
maintenance.






 Key Feature
• 8 x 100 Mbps PoE RJ45 port, 2 x gigabit combo.
• IEEE 802.3at/af standard for PoE ports.
• Network topology management, alarm push, network health monitor.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 300 m in extend mode.



 Specification
Model DS-3E1310P-SI
Network
Parameters
Port Number 8 x 100 Mbps PoE RJ45 port, and 2 x gigabit combo
Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE
802.3z
Forwarding Mode Store-and-forward switching
Working Mode
Standard mode (default)
Extend mode
MAC Address Table 16 K
Switching Capacity 5.6 Gbps
Packet Forwarding
Rate
4.1664 Mpps
Internal Cache 4 Mbits
PoE Power Supply
PoE Standard IEEE 802.3af, IEEE 802.3at
PoE Power Pin
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port Ports 1 to 8
Max. Port Power 30W
PoE Power Budget 125 W
Software Function
Device Maintenance
Remote upgrade, default parameters recovery, logs
viewing, basic network parameters configuration, import
and export configuration, time sync
Port Configuration Port rate configuration, slow control, and ports enabling
Long Range Up to 300 m transmission
PoE Configuration
PoE watchdog: Ports 1 to 8 auto detect and restart the
cameras that do not respond.
PoE enabling: Support
Port Rate-Limiting Rate-limiting for ingress and egress ports
Storm Control Storm control of unknown unicast, multicast and broadcast
Port Mirroring Support
Link Aggregation Static link aggregation supported for G1 and G2 port
Port Isolation
Ports in isolation group cannot communicate with each
other.
QoS WRR and SP scheduling and port priority
VLAN 4094 VLANs
STP STP and RSTP protocols
SNMP
SNMPv1 and SNMPv2c supported for obtaining node
information of the system and interfaces
LLDP
LLDP protocol supported for port configuration, global
configuration and neighbor discovery
General
Shell Metal material
Net Weight 1.72 kg (3.79 lb)
Gross Weight 2.20 kg (4.85 lb)


Dimension (W x H x D) 266 mm x 44.5 mm x 220.8 mm (10.47" x 1.75" x 8.69")
Operating
Temperature
-10°C to 55°C (14°F to 131°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5% to 95% (no condensation)
Power Supply 100 VAC~240 VAC, 50/60 Hz, Max. 1.5 A
Max. Power
Consumption
150 W
Power Consumption in
Idle
5 W
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015,
EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN
50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003:
Issue 6); RCM (AS/NZS CISPR 32: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009,
AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD
(EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2:
2013, EN 62368-1: 2014+A11: 2017)
Chemistry
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach
(Regulation (EC) No.1907/2006)



 Typical Application


 Available Model
DS-3E1310P-SI



 Physical Interface



 Dimension (Unit: mm)
