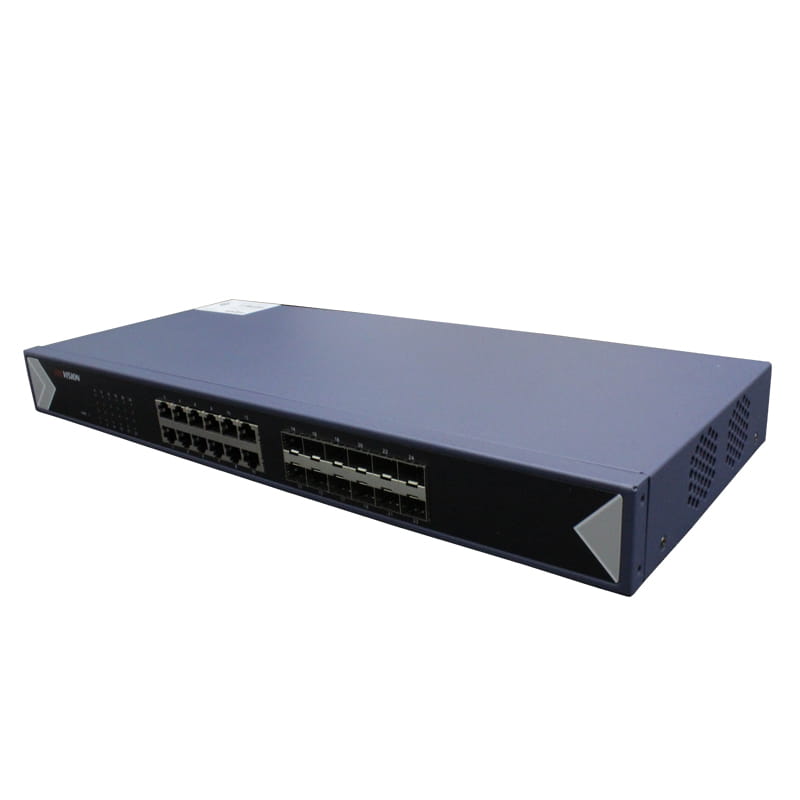

DS-3E0524TF

Switch L2,Unmanaged, 12 10/100/1000Mbps port, 12 1000M SFP,Back plane bandwidth: 48Gbps...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3E0524TF
Switch

*
Gigabit network data-exchange
*
12 Gigabit Ethernet electrical ports and 12 Gigabit Ethernet
SFP fiber optical port
*
10/100/1000M BaseT (X)(RJ45 ports)
*
IEEE802.3, IEEE802.3u and IEEE802.3x network standards
available
*
Store-and-forward switch
*
Delay of data-exchange less than 5us
*
Wide temperature Range: -5 ~ 50 ˚C
*
Solid metal chassis of high strength
*
19 Inches 1U standards rack installation
Features and Functions

Introduction

The Hikvision DS-3E0524TF Series Unmanaged Switch is layer 2
network switches, providing 12 Gigabit Ethernet electrical ports
and 12 Gigabit SFP fiber optical port. It is reliable, easy to install
and maintain, and equipped with rapid switch function. It has
multiple access ports, and is applicable for access or
aggregation and upload of small-scale LAN devices. It applies to
center area and can access to camera and NVR, in charge of
small-scale core data exchange.

Applicable Models
* DS-3E0524TF





Model DS-3E0524TF
Network parameters
Port number 12 Gigabit Ethernet electrical ports and 12 Gigabit SFP fiber optical port
Port type
Electrical ports: RJ45, Full/half duplex, MDI/MDI-X self-adptive
Fiber optical port: SFP packaging
Standard IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Processing type Store-and-forward switching
Priority queue 8
Mac address
table
16 K
Switching
bandwidth
48 Gbps
Packet
forwarding rate
35.7 Mpps
Internal cache 12 Mbit
Mechanical structure
Shell Metal material
Weight 2.5 kg
Dimensions
(L x H x D)
440 x 44.5 x 186.5 mm
(17.3 x 1.8 x 7.3 inch)
Environment
Operating
temperature
-5 ˚C to +50 ˚C (+23 ˚F to +122 ˚F)
Storage
temperature
-40 ˚C to +85 ˚C (-40 ˚F to +185 ˚F)
humidity 5% to 95% (no condensation)
Power supply
Power supply 220 VAC
Consumption ≤ 30 W
Safety and reliability
ElectroSTatic
Discharge (ESD)
Contact discharge：±7 KV
Air discharge：±9 KV
Surge
immunity(Surge)
Power port：line-ground ±2 KV，line-line 1 KV
Network port：line-ground ±2 KV
Electrical fast
transient(EFT)
Power port：±2 KV
Network port：±1 KV
Specifications





0100001071127

Typical Application

Decoder
Client

IP
IP
Network


Network
KeyboardVideoWall


NVR
IPC
DS-3E0524TF
Ethernet Switch


……
Access Switch
Access Switch
