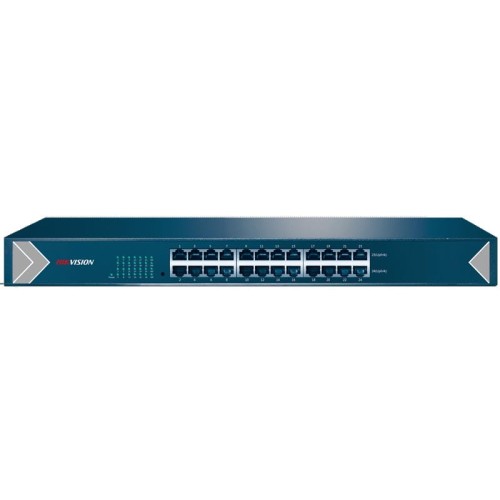

DS-3E0524-E(B)

Switch niezarządzalny DS-3E0524-E(B) warstwy 2 (L2), posiadający 24 porty x 1000M Ethernet; typ portu: RJ45 port, full duplex, MDI/MDI-X adaptive; Standardy: IEEE 802.3, IEEE 802.3u, IEEE 802.3x; Tryb przekazywania: Store-and-forward switching; Tablica adresów MAC 8K; Przepustowość: 48 Gbps; Szybkość przekazywania pakietów 35.712 Mpps; Wewnętrzna pamięć podręczna 4.1 Mbits; Wymiary: 335 mm x 44.5 mm x175.8 mm; Waga:1.6kg; Temperatura pracy: 0˚C do 40˚C; Zasilanie: 220 VAC,50/60 Hz,Max. 0.7 A...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3E0524-E(B)
24-Port Gigabit Unmanaged Ethernet Switch


DS-3E0524-E(B) switch is a layer 2 Gigabit Ethernet
switch, providing 24 x Gigabit Ethernet ports to upload
data via the convergence switch. The switch is reliable,
easy to install and maintain, and equipped with rapid
switching functions. With multiple access ports, the
switch is applicable for access or aggregation and upload
of small-scale LAN devices.




Feature and Function
• 24 x Gigabit Ethernet ports.
• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
• 1000 Mbps network access.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.
















Specification
Model DS-3E0524-E(B)
Network
parameters
Port number 24 x Gigabit Ethernet ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
MAC address table 8 K
Switching capacity 48 Gbps
Packet forwarding rate 35.712 Mpps
Internal cache 4.1 Mbits
General
Shell Metal material, fan-free design
Gross weight 2.31 kg (5.09 lb)
Net weight 1.6 kg (3.5 lb)
Dimension (L x H x D) 335 mm x 44.5 mm x 175.8 mm (13.2” x 1.8” x 6.9”)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 220 VAC, 50/60 Hz, Max. 0.7 A
Power consumption 24 W

Physical Interface
Front panel:

Back panel:


Available Model
• DS-3E0524-E(B)







Dimension (unit: mm)







Typical Application
