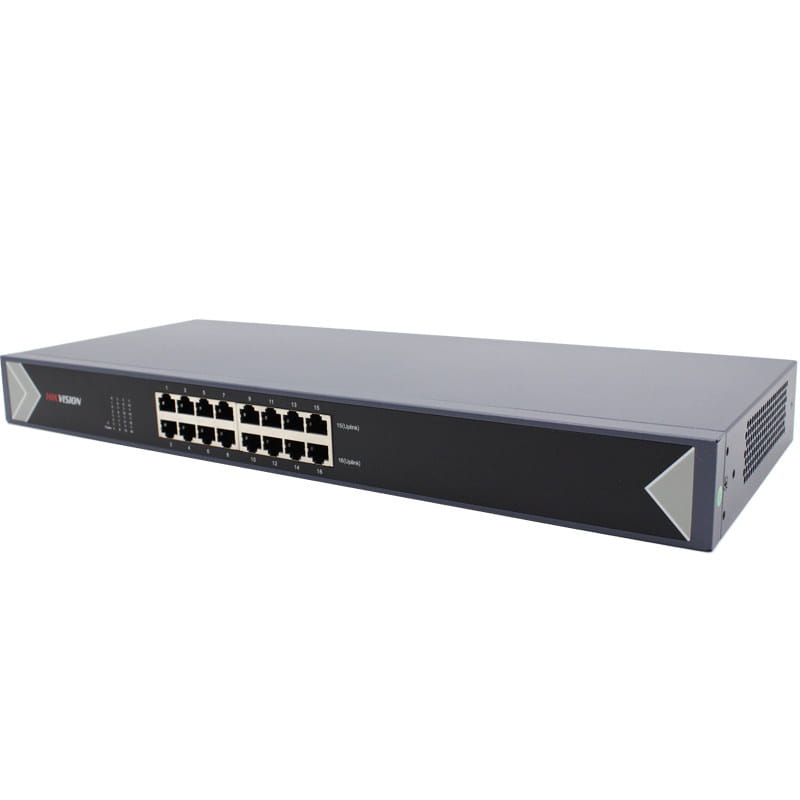

DS-3E0516-E(B)

Switch niezarządzalny DS-3E0516-E(B) warstwy 2 (L2), posiadający 16 portów x 1000M Ethernet; typ portu: RJ45 port, full duplex, MDI/MDI-X adaptive; Standardy: IEEE 802.3, IEEE 802.3u, IEEE 802.3x; Tryb przekazywania: Store-and-forward switching; Tablica adresów MAC 8K; Przepustowość: 32 Gbps; Szybkość przekazywania pakietów 23.808 Mpps; Wewnętrzna pamięć podręczna 4.1 Mbits; Wymiary: 257 mm x 44.5 mm x175.8 mm; Waga: 1.2kg; Temperatura pracy: 0˚C do 40˚C; Zasilanie: 220 VAC,50/60 Hz, Max. 0.3 A...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3E0516-E(B)
16-Port Gigabit Unmanaged Ethernet Switch


DS-3E0516-E(B) switch is a layer 2 Gigabit Ethernet switch,
providing 16 x Gigabit Ethernet ports to upload data via
the convergence switch. The switch is reliable, easy to
install and maintain, and equipped with rapid switching
functions. With multiple access ports, the switch is
applicable for access or aggregation and upload of small-
scale LAN devices.



Feature and Function
• 16 x Gigabit Ethernet ports.
• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
• 1000 Mbps network access.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.
















Specification
Model DS-3E0516-E(B)
Network
parameters
Port number 16 x Gigabit Ethernet ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
MAC address table 8 K
Switching capacity 32 Gbps
Packet forwarding rate 23.808 Mpps
Internal cache 4.1 Mbits
General
Shell Metal material, fan-free design
Gross weight 1.96 kg (4.32 lb)
Net weight 1.2 kg (2.6 lb)
Dimension (L x H x D) 257 mm x 44.5 mm x 175.8 mm (10.1” x 1.8” x 6.9”)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 220 VAC, 50/60 Hz, Max. 0.3 A
Power consumption 12 W

Physical Interface
Front panel:

Back panel:


Available Model
• DS-3E0516-E(B)







Dimension (unit: mm)







Typical Application
