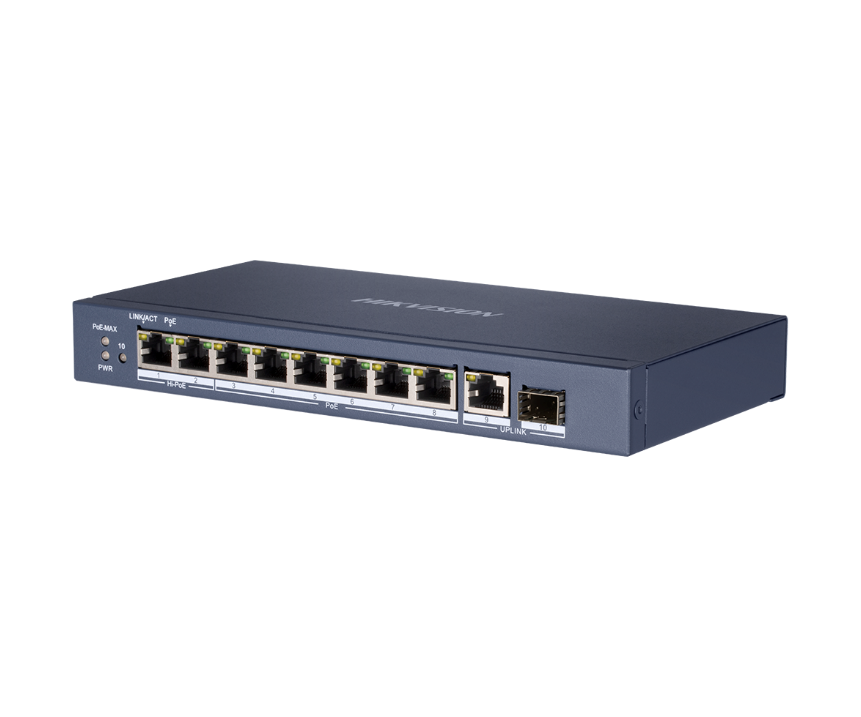

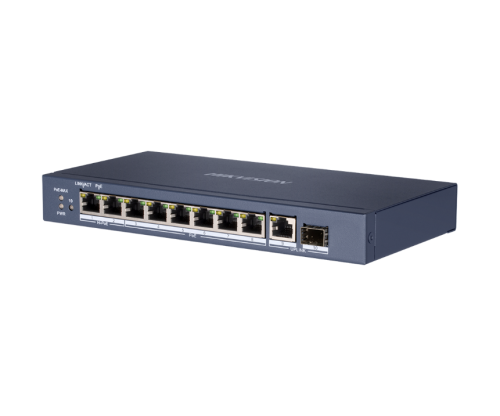

DS-3E0510HP-E

Switch niezarządzalny Hi-PoE DS-3E0510HP-E warstwy 2 (L2), posiadający 6 portówx gigabit PoE, 2 porty x gigabit Hi-PoE, 1 port x gigabit RJ45, 1 port gigabitowy światłowodowy SFP; typ portu: RJ45 port, full duplex, MDI/MDI-X adaptive; Standardy: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z; Tryb przekazywania: Store-and-forward switching; Tryb pracy: Standard (default), Extend, Isolation, PoE watchdog ; Porty przeznaczone do transmisji na duże odległości (do 300m): porty od 7 do 8; Tablica adresów MAC 4K; Przepustowość: 20 Gbps; Szybkość przekazywania pakietów 14.88 Mpps; Wewnętrzna pamięć podręczna 1.5 Mbits; Standard PoE: Port 1-2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Porty od 3 do 8: IEEE 802.3af, IEEE 802.3at; Port PoE: 1-8; porty Hi-PoE: 1-2; Budżet mocy PoE: 110W; Warunki pracy : -10 st.C to 40 st.C, Zasilanie: 54 VDC, 2.22 A; Wymiary: 217.6 mm x 108.55 mm x 27.8 mm; Waga 0.59kg...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3E0510HP-E
10-Port Gigabit Unmanaged Hi-PoE Switch


Key Feature
• 6 x gigabit PoE ports, 2 x gigabit Hi-PoE ports, 1 x gigabit RJ45 port, and 1 x gigabit fiber optical port.
• IEEE 802.3at/af/bt standard for Hi-PoE ports (Max. 90 W PoE output).
• IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Port isolation to improve network security.
• Gigabit network access design.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.






DS-3E0510HP-E switches are layer 2 Hi-PoE switches,
providing advanced PoE power supply technology and
Gigabit networks design on the basis of high-
performance access to ensure stable data upload. The
switches support Hi-PoE, long range, port isolation, and
PoE watchdog function.






Specification
Model DS-3E0510HP-E
Network
parameters
Port number
6 x gigabit PoE ports, 2 x gigabit Hi-PoE ports, 1 x gigabit RJ45 port,
and 1 x gigabit fiber optical port
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
Forwarding mode Store-and-forward switching
Working mode
Standard mode (default), Extend mode, Isolation mode, PoE
watchdog mode
Ports for long-distance
transmission
Ports 7 and 8
MAC address table 4 K
Switching capacity 20 Gbps
Packet forwarding rate 14.88 Mpps
Internal cache 1.5 Mbits
PoE power
supply
PoE standard
Ports 1 and 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 3 to 8: IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports 3 to 6: Ethernet cables 1/2/3/6 provide power supply.
Ports 1, 2, 7 and 8: Ethernet cables 1/2/3/6 and 4/5/7/8 provide
power supply simultaneously.
PoE port Ports 1 to 8
Hi-PoE port Ports 1 and 2
Max. port power
Ports 1 and 2: 90 W
Ports 3 to 8: 30 W
PoE power budget 110 W
Dialing function Long range Ports 7 and 8: up to 300 m; and the speed rate of the port is 10 Mbps.
Port isolation Ports 1 to 8: port isolation mode to improve network security.
PoE watchdog Ports 1 to 8: auto detect and restart the cameras that do not respond.
General
Shell Metal material, fan-free design
Net Weight 0.59 kg (1.30 lb)
Dimension (L x H x D) 217.6 mm x 108.55 mm x 27.8 mm (8.57” x 4.27” x 1.09”)
Operating temperature -10 °C to 40 °C (14 °F to 104 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 54 VDC, 2.22 A
Power consumption in idle < 10 W
Max. power consumption 120 W
Power source 120 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-
3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM
(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-
LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)
No 1907/2006)




Physical Interface
Front panel:

Back panel:


Available Model
DS-3E0510HP-E





Dimension (unit: mm)





Typical Application
