DS-3E0508D-E

Switch 8-portowy. 8 portów 10/100/1000 Mbps, standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, tablica adresów MAC 4 K, obsługa ADI/ADIX. Wymiary 142 x 90 x 23 mm. Waga 0.065 kg. Temp. pracy 0st.C do 40st.C. Zasilanie 9 VDC, 0.6A....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

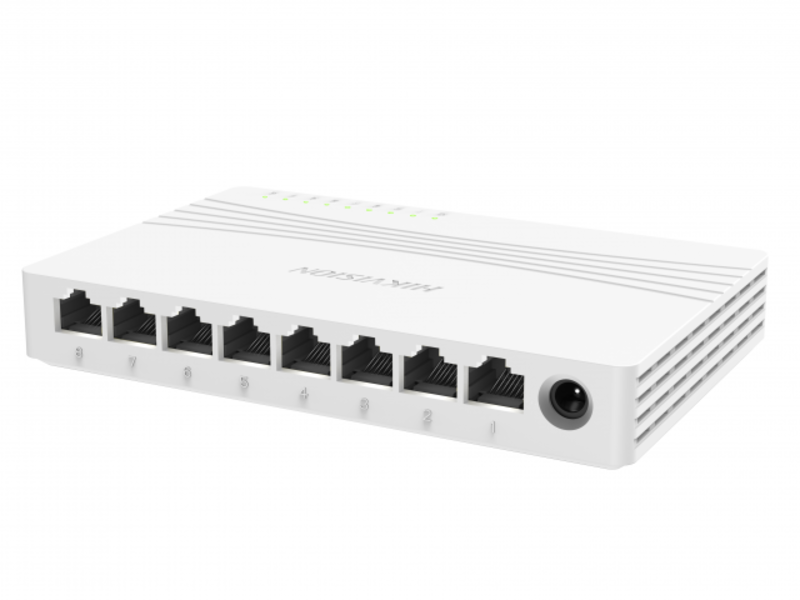

DS-3E0508D-E 10/100/1000 Mbps Ethernet Switch
* DS-3E0508D-E: 8 x 10/100/1000 Mbps adaptive Ethernet
ports
* Support ADI/ADIX
* Store-and-forward switching
* Support MAC address auto-learning and aging
* Simple and mini exquisite body
* Support desktop and wall-mounting
* Plug & play, and easy to use
Feature and Function

DS-3E0508D-E provides 8 x 10/100/1000 Mbps Ethernet
ports which support line speed forwarding. With simple and
mini exquisite body, the switch is plug and play and easy to
use, suitable for home, school, dormitory, office, small
monitoring and other simple network environments.










Model DS-3E0508D-E
Network parameters
Port number 8
Port type 10/100/1000 Mbps RJ45 ports
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Forwarding mode Store and forward
MAC address table 4 K
Switching capacity 16 Gbps
Packet forwarding rate 11.904 Mpps
General
Shell ABS
Weight 0.065 kg
Dimensions (L x H x D) 142 x 90 x 23 mm
Operating temperature 0°C~40°C
Storage temperature -40°C~70°C
Operating humidity 10%~90% RH non-condensing
Storage humidity 5%~90% RH non-condensing
Power supply 9 V DC, 0.6 A
Specification



Physical Interface
Front panel:


Side panel:


Available Model
DS-3E0508D-E
Accessories
Power adapter x 1, User manual x 1, Switch x 1
Dimension






Typical Application
