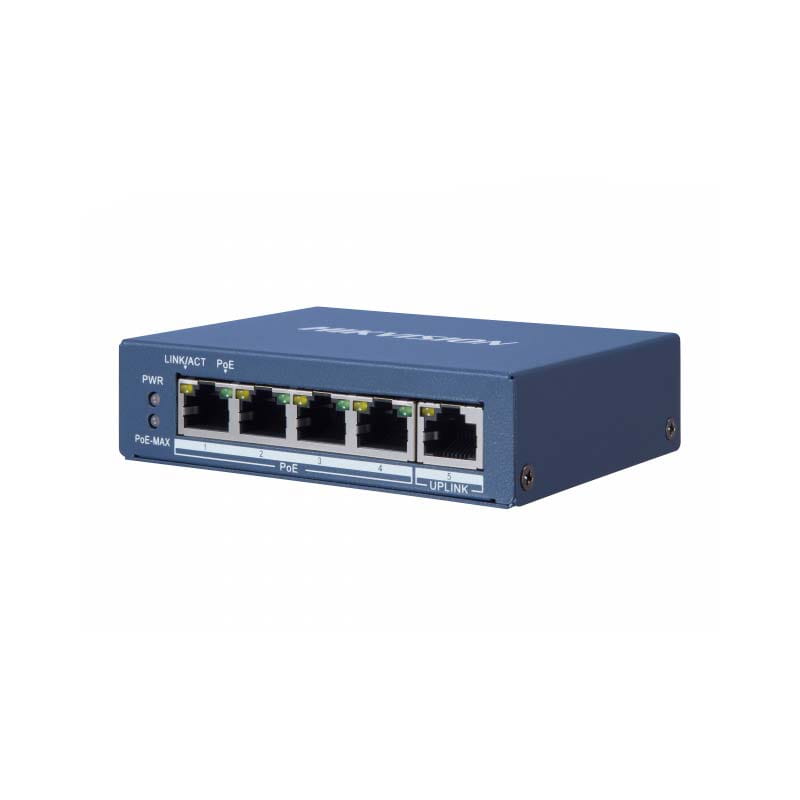

DS-3E0505P-E

Switch PoE 5-portowy. 4 porty gigabit PoE, 1 port gigabit RJ45. Standart PoE port IEEE802.3af/at (max. 30W). Tablica adresów MAC: 2K. Maksymalna moc: 60W Zasilanie 48 VDC, 1.35A. Wymiary 105x27.6x83.1 mm. Waga 0.26 kg. Temp. pracy 0st.C do 40st.C....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3E0505P-E
4-Port Gigabit Unmanaged PoE Switch


Feature and Function
• 4 x gigabit PoE ports, and 1 x gigabit RJ45 port.
• IEEE 802.3at/af standard.
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard.
• PoE port with 6 KV surge protection.
• PoE output power management.
• Gigabit network access.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Fan-free design with high reliability.




DS-3E0505P-E switches are layer 2 gigabit unmanaged
PoE switches, providing 4 gigabit PoE ports, and one
10/100/1000 Mbps RJ45 port. The switches provide
advanced PoE technology and connect other devices
with high performance. Meanwhile, all gigabit ports
guarantee stable transmission of data.




Specification
Model DS-3E0505P-E
Network
parameters
Port number 4 x gigabit PoE ports, and 1 x gigabit RJ45 port
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding mode Store-and-forward switching
MAC address table 2 K
Switching capacity 10 Gbps
Packet forwarding rate 7.44 Mpps
Internal cache 1 Mbits
PoE power
supply
PoE standard IEEE 802.3af, IEEE 802.3at
PoE power pin
Support 4-core power supply, and Ethernet cable 1/2/3/6 provide
power supply.
PoE port Ports 1 to 4
Max. port power 30 W
PoE power budget 60 W
Max. power consumption 65 W
General
Shell Metal material, fan-free design
Weight 0.26 kg (0.57 lb)
Dimensions (L x H x D) 105 mm x 27.6 mm x 83.1 mm (4.1” x 1.1” x 3.3”)
Operating temperature 0˚C to 40˚C (32˚F to 104˚F)
Storage temperature –40˚C to 85˚C (–40˚F to 185˚F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 1.35 A
Power consumption 65 W










Physical Interface
Front panel:

Back panel:


Available Model
• DS-3E0505P-E

Dimension (unit: mm)






Typical Application
