DS-3E0326P-E

Switch L2, niezarządzalny, 24 x port 100M PoE, 1 x port 1000M combo, 802.3af/at, budżet PoE 370W...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

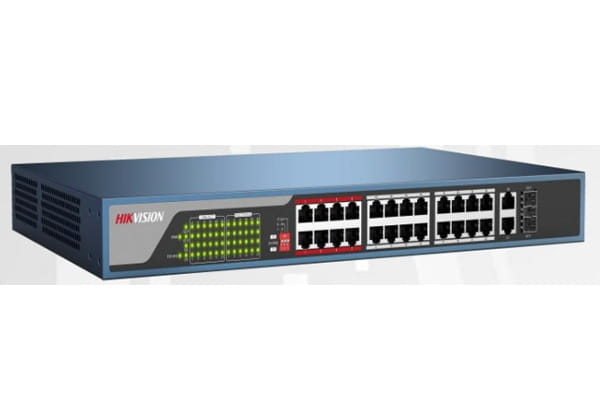

DS-3E0326P-E
24-Port 100 Mbps Unmanaged PoE Switch


• Optional 820 ft (250 m) Extended Transmission Mode
• 24 x 10/100 Mbps Auto-MDIX Ports
• IEEE 802.3at/af PoE Compliant
• Up to 30 W per PoE Port, PoE Power Budget 370 W
• 4 kV Surge Protection
• IEEE 802.3x Flow Control Support
• Plug-and-Play Installation
• 8.8 Gbps Switching Fabric
• 2.75 Mbits RAM Data Buffer
• 4K MAC Address Entries
• Sturdy Metal Enclosure

DS-3E01318P-E is a 10/100 Mbps unmanaged
switch that requires no configuration and
provides 24 PoE (Power over Ethernet) ports. It
can automatically detect and supply power to all
IEEE 802.3af/at compliant powered devices. In
these situations, electrical power is transmitted
alongside data in one single cable, allowing
network expansion where there are no power
lines or outlets, for devices such as IP cameras,
IP phones, etc.
Available Models: DS-3E0326P-E















Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4485 Dobrin, St-Laurent, Quebec, Canada, H4R 2L8
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2016 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 100716NA
Specifications
DS-3E0326P-E

Ports
Network Ports 26
PoE Ports 24 x 10/100 Mbps RJ-45 ports
Uplink Ports 2 x 1000M combo port
Standard
Network Protocols IEEE802.3, 802.3u, 802.3x, 802.3af, 802.3at
Performance
Switching Capacity 8.8 Gbps
Max. Forwarding Rate 6.55 Mpps
High Priority Ports Ports 1-8
Forwarding Mode Store-and-Forward
MAC Address Table 4k
Flow Control IEEE802.3x full duplex
Power over Ethernet
PoE Standard 24 ports IEEE802.3af (up to 15.4 W per port) or 12 ports IEEE802.3at (up to 30 W per port)
PoE Power Budget 370 W
Working Mode
Extend on: 25 0m, 10 M, CAT 5e
Extend off: 100 m
General
Power Supply 100 to 240 VAC, 50/60 Hz
Power Consumption ≤440 W
Surge Protection 4 kV
Working Temperature 32° F to 104° F (0° C to 40° C)
Working Humidity 10% to 90% , non-condensing
Storage Temperature -40° F to 158° F (-40° C to 70° C)
Storage Humidity 5% to 90%, non-condensing
Weight 9.46 lbs (4.29 kg)
Dimension 17.32" x 11.22" x 1.69" (440 mm x 285 mm x 43 mm)
Accessories
SFP Modules (Optional) HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20 km
HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber, 20 km

Landmarks



No. Description
1 LEDs
2 Extend Mode
3 PoE Port
4 Uplink Ports
5 SFP Ports
