DS-3E0318P-E

Switch L2, niezarządzalny, 16 x port 100M PoE, 1 x port 1000M combo, 802.3af/at, budżet PoE 230W...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3E0318P-E
16-ports 100Mbps Unmanaged PoE Switch
IEEE 802.3at and IEEE 802.3af Power
over Ethernet (PoE) compliant
16x10/100Mbps Auto-MDIX PoE ports
Provides up to 30 watts per PoE port
Supports PoE power up to 230W for
all PoE ports
4 KV surge protection for PoE ports
IEEE 802.3x flow control support
Plug-and-play installation
7.2 Gbps switching fabric
2.75 Mbits RAM Data Buffer
4K MAC address entries
Sturdy metal enclosure
Limited lifetime warranty
Features
Overview

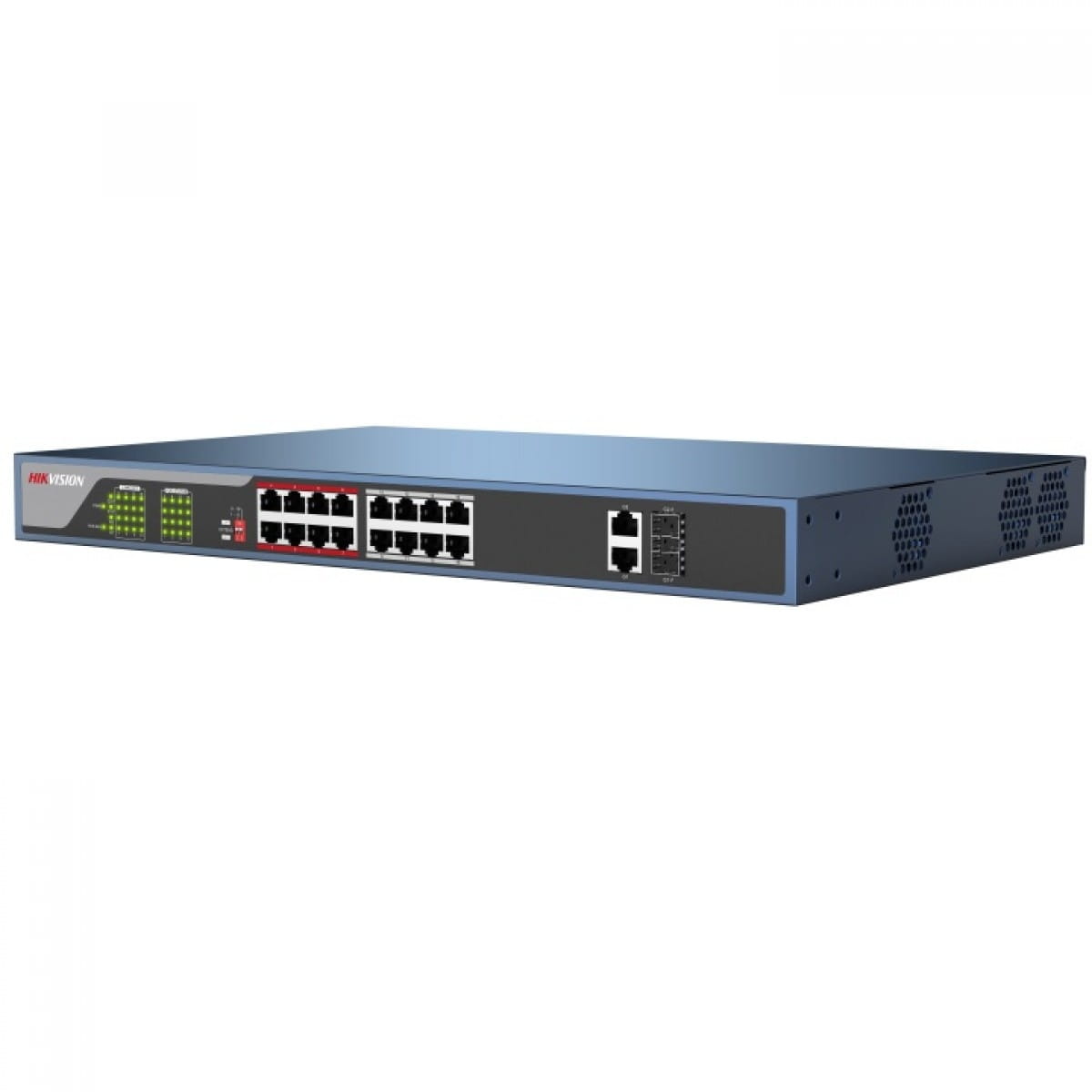

DS-3E0318P-E is an 16 10/100Mbps ports unmanaged
switch that requires no conguration and provides 16
PoE (Power over Ethernet) ports. It can automatically
detect and supply power with all IEEE 802.3af/at
compliant Powered Devices (PDs). In this situation, the
electrical power is transmitted along with data in one
single cable allowing you to expand your network to
where there are no power lines or outlets, where you
wish to fix devices such as IP Cameras or IP Phones,
etc.

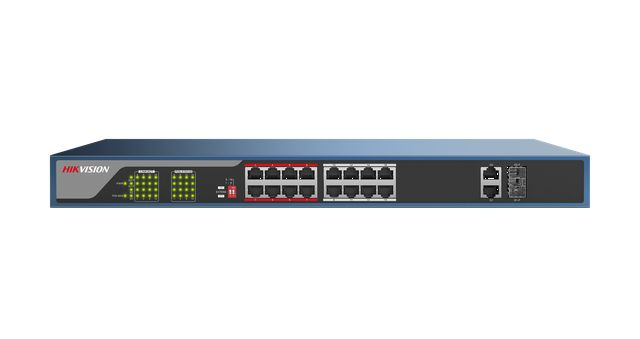

NO. Description
1 LEDs
2 Extend mode
3 PoE port
4 Uplink ports
5 SFP ports

1 2 5 4 3


Model DS-3E0318P-E
Ports
Network Ports 18
Standard
Network Protocol IEEE802.3,802.3u,802.3x, 802.3af, 802.3at
Performance
Switching Capacity 7.2Gbps
Uplink Port 1000M Combo Port,2
Max. Forwarding Rate 5.36Mpps
High Priority Ports Ports 1-8
Forwarding Mode Store-and-forward
MAC Address Table 4k
Flow Control IEEE802.3x full duplex
Power Over Ethernet
PoE Port 16
PoE Standard 802.3af, 802.3at
PoE Power Budget 230W
Working Mode Supports 8 pins powering
General
Power Supply 100-240V AC, 50/60Hz
Power Consumption ≤250W
Surge Protection 4KV
Working Temperature Temperature: 0℃-40℃
Working Humidity Humidity: 10%-90% , non-condensing
Storage Temperature Temperature: -40℃-70℃
Storage Humidity Humidity: 5%-90% , non-condensing
Weight 3.72kg
Dimension 440mm*285mm*43mm
Accessories
SFP modules (Optional)
HK-1.25G-20-1550: 1000M SFP module,
TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
HK-155M-20-1550: 100M SFP module,
TX1550nm/RX1310nm, LC, single-mode single-fiber, 20km
Specifications
DS-3E0318P-E
16-ports 100Mbps Unmanaged PoE Switch
