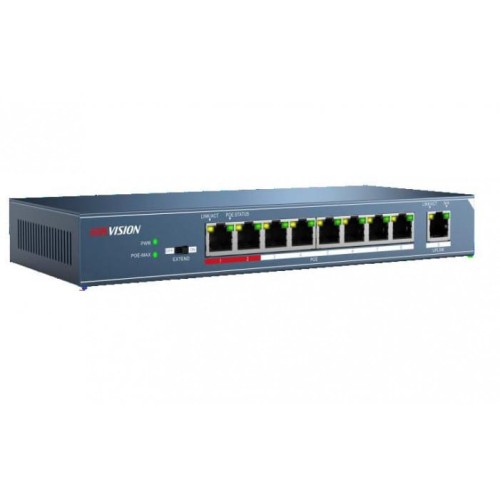

DS-3E0109P-E(C)
Opis
Switch niezarządzalny 8 portów 10 / 100M RJ45 PoE, 1 port uplink 10 / 100M RJ45, 802.3af / at, budżet mocy PoE 115W, max. Transmisja na odległość 250 m, ochrona przeciwprzepięciowa 6KV...
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:
DS-3E0109P-E/M(B)
100M PoE Switch
* 8 x 100M PoE ports and 1 x 100M Ethernet port.
* Supports IEEE802.3at/af.
* Supports IEEE 802.3, IEEE 802.3u and IEEE 802.3x.
* Supports high priority ports.
* Supports 8-core power supply.
* Up to 250 m transmission distance.
* PoE port with 6 KV surge protection.
* Supports PoE output power management.
* 100M network access.
* Wire-speed forwarding and non-blocking design.
* Store-and-forward switching.
* Solid high-strength metal shell.
* Fan-free design with high reliability.
Feature and Function
DS-3E0109P-E/M(B) is a layer 2 100M PoE switch. Based on wire-
speed forwarding, the switch supports Ethernet PoE power
supply and extend mode. The power supply distance reaches as
long as 250 m. It also supports prior and stable transmission of
the important surveillance area video when connected to the
high priority ports.
Model DS-3E0109P-E/M(B)
Network parameters
Port number 8 x 100M PoE ports, 1 x 100M Ethernet port.
Port type RJ45 port, Full duplex, MDI/MDI-X adaptive
Standard IEEE802.3, IEEE802.3u, IEEE802.3x
Processing type Store-and-forward switching
Ports with high
priority
1 to 2 ports
Ports for long-
distance
transmission
1 to 8 ports
MAC address
table
2 K
Exchange
capacity
1.8 Gbps
Packet
forwarding rate
1.339 Mpps
Internal cache 1 Mbits
PoE power supply
Power supply
standard
IEEE 802.3af, IEEE 802.3at
Power supply
cable core
Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous
power supply
PoE port 1 to 8
Max. port power 30 W
Max. machine
power
60 W
Mechanical structure
Shell Metal material, fan-free design
weight 0.35 kg (0.77 lb)
Dimensions
(L x H x D)
170 mm x 27.6 mm x 93.1 mm
(6.7” x 1.1” x 3.7”)
Environment
Operating
temperature
0 ˚C to 40 ˚C (32 ˚F to 104 ˚F)
Storage
temperature
–40 ˚C to 85 ˚C (–40 ˚F to 185 ˚F)
Relative
humidity
5% to 95% (no condensation)
Power supply
Power supply
specification
48 VDC, 1.35 A
Specification
Physical Interface
Front panel:
Back panel:
Available Model
DS-3E0109P-E/M(B)
Dimension
Typical Application
