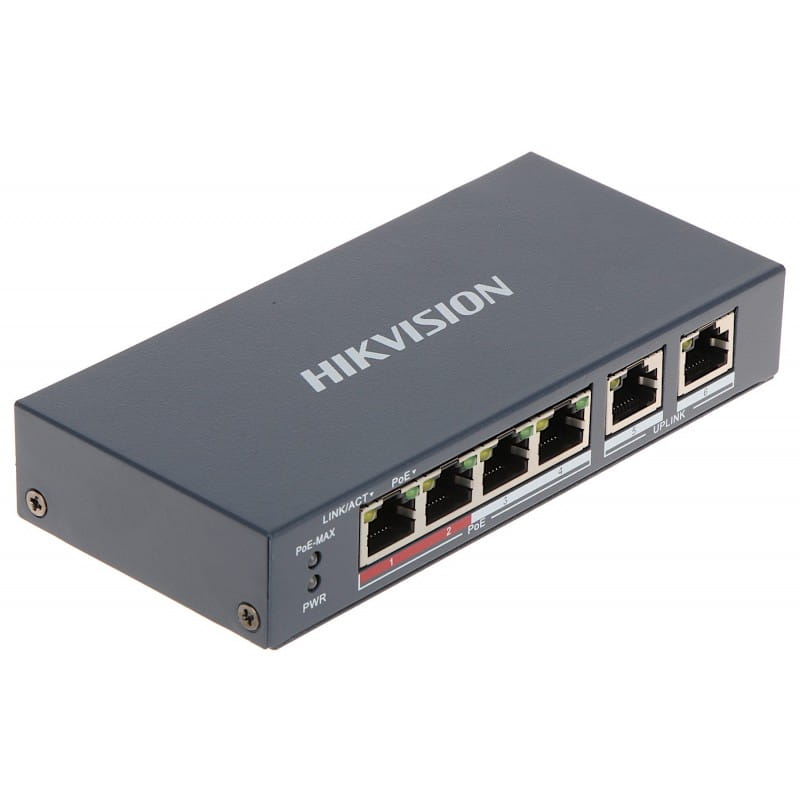

DS-3E0106P-E/M

Dostępność: >1000
Cena: 214,00 zł 214.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 301801715

Opis

Switch L2, Unmanaged, 4 10/100M RJ45 PoE ports, 2 10/100M RJ45 uplink port, 802.3af/at, PoE power budget 35W, max. 300m long distance transmission, 6KV surge protection...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-3E0106P-E/M
4-Port Unmanaged PoE Switch


Key Feature
• 4 x 10/100Mbps PoE ports, and and 2 x 10/100Mbps RJ45 ports.
• IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
• 6 KV surge protection for PoE ports.
• Up to 300 m long-range transmission.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.






DS-3E0106P-E/M switches are layer 2 unmanaged PoE
switches, providing advanced PoE power supply
technology on the basis of high-performance access to
ensure stable data upload. The switches support long
range function.





Specification
Model DS-3E0106P-E/M
Network
parameters
Port number 4 x 10/100Mbps PoE ports, and and 2 x 10/100Mbps RJ45 ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default), Extend mode
High priority ports Ports 1 and 2
Ports for long-distance
transmission
Ports 1 to 4
MAC address table 4 K
Switching capacity 1.6 Gbps
Packet forwarding rate 0.8928 Mpps
Internal cache 768 Kbits
PoE power
supply
PoE standard Ports 1 to 4: IEEE 802.3af, IEEE 802.3at
PoE power pin
Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power
supply simultaneously.
PoE port Ports 1 to 4
Max. port power Ports 1 to 4: 30 W
PoE power budget 35 W
Dialing function Long range Ports 1 to 4: up to 300 m.
General
Shell Metal material, fan-free design
Gross weight 0.52 kg (1.15 lb)
Net weight 0.265 kg (0.58 lb)
Dimension (L x H x D) 145 mm x 68.45 mm x 25.6 mm (5.71” x 2.69” x 1.01”)
Operating temperature -10°C to 40°C (14°F to 104°F)
Storage temperature -40°C to 85°C (-40°F to 185°F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 0.8 A
Power consumption in idle < 5 W
Max. power consumption 38 W
Power source 38 W
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-
3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM
(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-
LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC)
No 1907/2006)





Physical Interface
Front panel:

Back panel:


Available Model
DS-3E0106P-E/M

Dimension (unit: mm)





Typical Application
