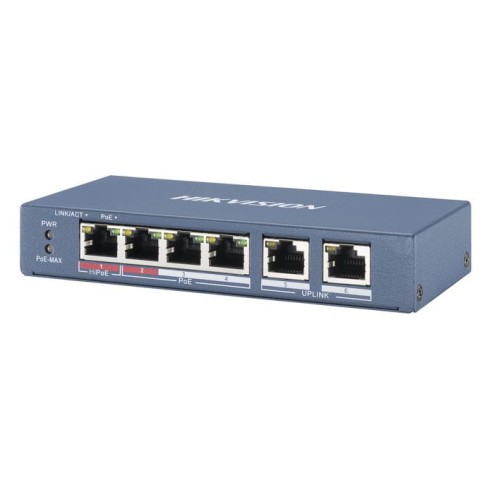

DS-3E0106HP-E

Switch PoE 6-portowy. 1 port 10/100 Mbps HiPoE, 3 porty 10/100 Mbps PoE, 2 porty 10/100 Mbps RJ45. Zasięg transmisji: 250 m dla kamer AF/AT, 150m dla kamer HiPoE, standart: HiPoE port IEEE802.3af/at/bt (max. 60W), PoE port IEEE802.3af/at (max. 30W). Tablica adresów MAC: 2K. Maksymalna sumaryczna moc: 60W Zasilanie 48 VDC, 1.35A. Wymiary 145x25.6x68.45 mm. Waga 0.24 kg. Temp. pracy 0st.C do 40st.C....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3E0106HP-E
4-Port 100 Mbps Long-Range Unmanaged PoE Switch


Feature and Function
• 1 x 10/100 Mbps Hi-PoE port, 3 x 10/100 Mbps PoE ports, and 2 x 10/100 Mbps RJ45 ports.
• IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W port power).
• IEEE 802.3at/af standard for PoE ports.
• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
• 6 KV surge protection for PoE ports.
• AF/AT camera can reach up to 250 m in extend mode. Hi-PoE camera can reach up to 150 m.
• High priority ports.
• PoE power management.
• Dual uplink network design.
• Wire-speed forwarding and non-blocking design.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.




DS-3E0106HP-E switches are layer 2 100 Mbps long-range
PoE switches, providing 1 x 10/100 Mbps Hi-PoE port, 3 x
10/100 Mbps PoE ports, and 2 x 10/100 Mbps RJ45 ports.
The switches provide advanced Hi-PoE/PoE technology and
support extend mode with long-range access up to 250 m.
The prior and stable transmission of the important
surveillance area videos can also be guaranteed when
connected to the high priority ports. Meanwhile, the 2 x
10/100 Mbps RJ45 uplink ports guarantee applications of
multiple network solutions.






Specification
Model DS-3E0106HP-E
Network
parameters
Port number
1 x 10/100 Mbps Hi-PoE port, 3 x 10/100 Mbps PoE ports, and 2 x
10/100 Mbps RJ45 ports
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store-and-forward switching
Working mode Standard mode (default); Extend mode
High priority port Ports 1 to 2
Ports for long-distance
transmission
Ports 1 to 4
MAC address table 2 K
Switching capacity 1.2 Gbps
Packet forwarding rate 0.893 Mpps
Internal cache 768 Kbits
PoE power
supply
PoE standard
Port 1: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ports 2 to 4: IEEE 802.3af, IEEE 802.3at
PoE power pin
Support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8
provide power supply simultaneously.
PoE port Ports 1 to 4
Max. port power
Port 1: 60 W
Ports 2 to 4: 30 W
PoE power budget 60 W
Max. power consumption 65 W
General
Shell Metal material, fan-free design
Weight 0.24 kg (0.53 lb)
Dimension (L x H x D) 145 mm x 25.6 mm x 68.45 mm (5.7” x 1.0” x 2.7”)
Operating temperature 0˚C to 40˚C (32˚F to 104˚F)
Storage temperature –40˚C to 85˚C (–40˚F to 185˚F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 1.35 A
Power consumption 65 W










Physical Interface
Front panel:

Back panel:


Available Model
DS-3E0106HP-E

Dimension (unit: mm)






Typical Application
