DS-3E0105D-E
Opis
Switch 5-portowy. 5 portów 10/100 Mbps, standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, tablica adresów MAC 1 K, obsługa ADI/ADIX. Wymiary 82 x 52 x 22.4 mm. Waga 0.025 kg. Temp. pracy 0st.C do 40st.C. Zasilanie 5 VDC, 0.6A....
Gwarancja: 36 mies.
Karta katalogowa
Tekstowa zawartość karty katalogowej PDF:

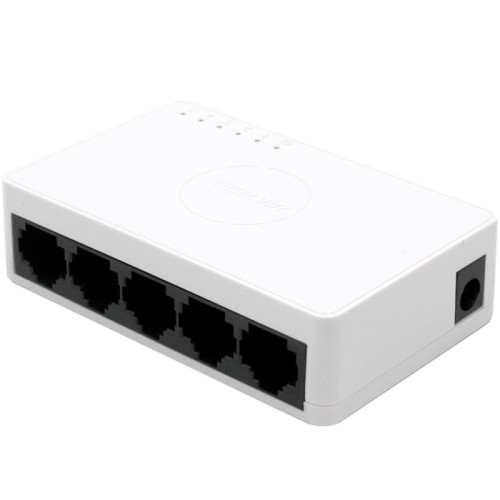

DS-3E0105D-E 10/100 Mbps Ethernet Switch
* DS-3E0105D-E: 5 x 10/100 Mbps adaptive Ethernet ports
* Support ADI/ADIX
* Store-and-forward switching
* Support MAC address auto-learning and aging
* Simple and mini exquisite body
* Support desktop and wall-mounting
* Plug & play, and easy to use
Feature and Function
DS-3E0105D-E provides 5 x 10/100 Mbps Ethernet ports
which support line speed forwarding. With simple and mini
exquisite body, the switch is plug and play and easy to use,
suitable for home, school, dormitory, office, small monitoring
and other simple network environments.
Model DS-3E0105D-E
Network parameters
Port number 5
Port type 10/100 Mbps RJ45 ports
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode Store and forward
MAC address table 1 K
Switching capacity 1 Gbps
Packet forwarding rate 0.744 Mpps
General
Shell ABS
Weight 0.025 kg
Dimensions (L x H x D) 82 x 52 x 22.4 mm
Operating temperature 0°C~40°C
Storage temperature -40°C~70°C
Operating humidity 10%~90% RH non-condensing
Storage humidity 5%~90% RH non-condensing
Power supply 5 V DC, 0.6 A
Specification
Physical Interface
Front panel:
Side panel:
Available Model
DS-3E0105D-E
Accessories
Power adapter x 1, User manual x 1, Switch x 1
Dimension
Typical Application
