DS-3D2208P

Switch L2, Full managed, 8 100M PoE port, 2 1000M combo port, 802.3af/at, PoE power budget 150W...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-3D2000 Multiservice Gigabit
Ethernet PoE Switch Series

Overview
Adopting Broadcom chip, DS-3D2000 PoE switch series is a
two-layer network switch designed for video data
transmission. They support all kinds of connections varying
from 10/100M to 1000M for the flexible network
configuration. The device supports various network
management standards such as SNMP, Telnet, RMON and CLI.
It can be managed by different network management
platforms for a safe surveillance environment with high-
bandwidth and high-performance.
DS-3D2000 PoE switches support 802.3af and 802.3at power
supply modes with the maximum power supply on each port
reaching up to 30W. The product is capable of distributing
power automatically according to each port’s load
characteristic, which is ideal for video surveillance application.

key Features
Excellent performance
•64Gbps backplane capacity; non-blocking design; video
streaming forwarding at full speed;
•Gigabit optical-fiber transmission with up to 120Km
distance;
High security and reliability
•Providing multiple user authentication modes such as
802.1x authentication;
•Port-MAC-IP bind;
•Special ARP invasion detection to effectively stop ARP
cheat;
Flexible and various managements
•Adopt cluster technology, support device stacking and use
an unified IP address for management;
•Multiple management modes such as Console port, Telnet,
Web and SNMP;
Powerful flow and broadcast management
•Automatically detecting and controlling broadcast storms,
monitoring IGMP packets and effectively preventing
broadcast packet's flooding;
•Flow control in full-duplex mode or half-duplex mode;








•The rate limitation in a minimum step of 64K is
supported on the Ethernet port;
•IP multicast and QoS;
Varied protocols
•802.3af power supply on all ports;
•802.3at power supply with the maximum power
supply on each port reaching up to 30W;
•Configurable power supply priority guarantees,
continuous power supply at key network nodes;
•Configurable power consumption to save power
and users' cost.


DS-3D2000 Multiservice Gigabit
Ethernet PoE Switch Series

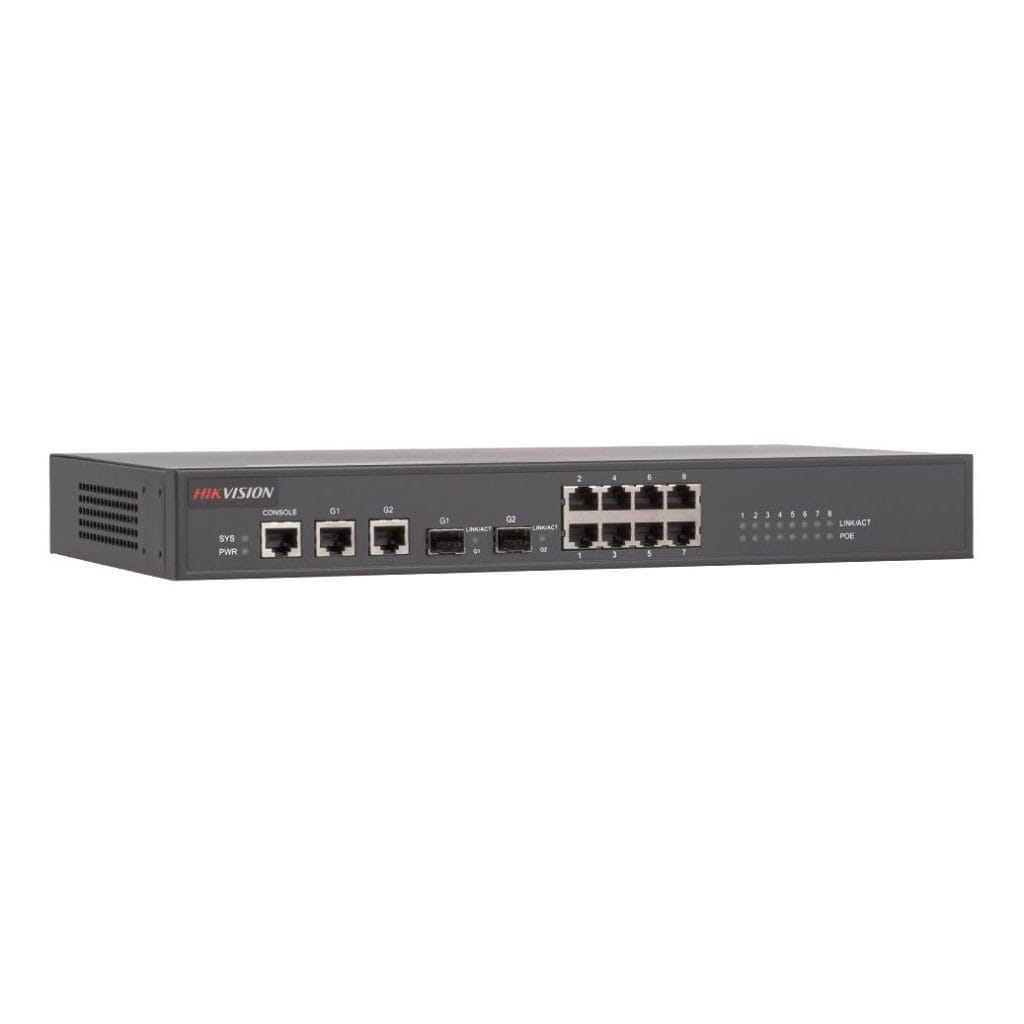

Model DS-3D2208P DS-3D2228P
Port
8 100M Ethernet Ports
2 1000M Ethernet Ports
2 1000M SFP Optical Multiplex Ports
1 Console Port
24 100M Ethernet Ports
4 1000M Ethernet Ports
4 1000M SFP Optical Multiplex Ports
1 Console port
Backplane
Capacity
64Gbps
Switching
Bandwidth
32Gbps
Forwarding 4.2Mpps 9.6Mpps
MAC Table 8K
Video
Buffering
64MB

STP
IEEE 802.1D STP
IEEE 802.1w RSTP
IEEE 802.1s MSTP
VLAN
Port-based VLAN
802.1Q VLAN
GVRP
VLAN No. 4K (any division)
QinQ Support
QoS Support
Flow Control Backpressure is adopted for half-duplex, while IEEE802.3x is adopted for full-duplex.
Multicast IGMP Snooping
Network
Management

SNMP, Telnet, RMON, CLI, support multiple SNMP network management software
Network
Security
IEEE 802.1x
Port access control
IP ACL, MAC ACL and VLAN ACL
DHCP snooping
DAI and static/dynamic ARP prevention
RADIUS


Dimension
340mmx250mmx44mm
(13.39”x9.84”x1.73”)
442mmx315mmx44mm
(17.40”x12.40”x1.73”)

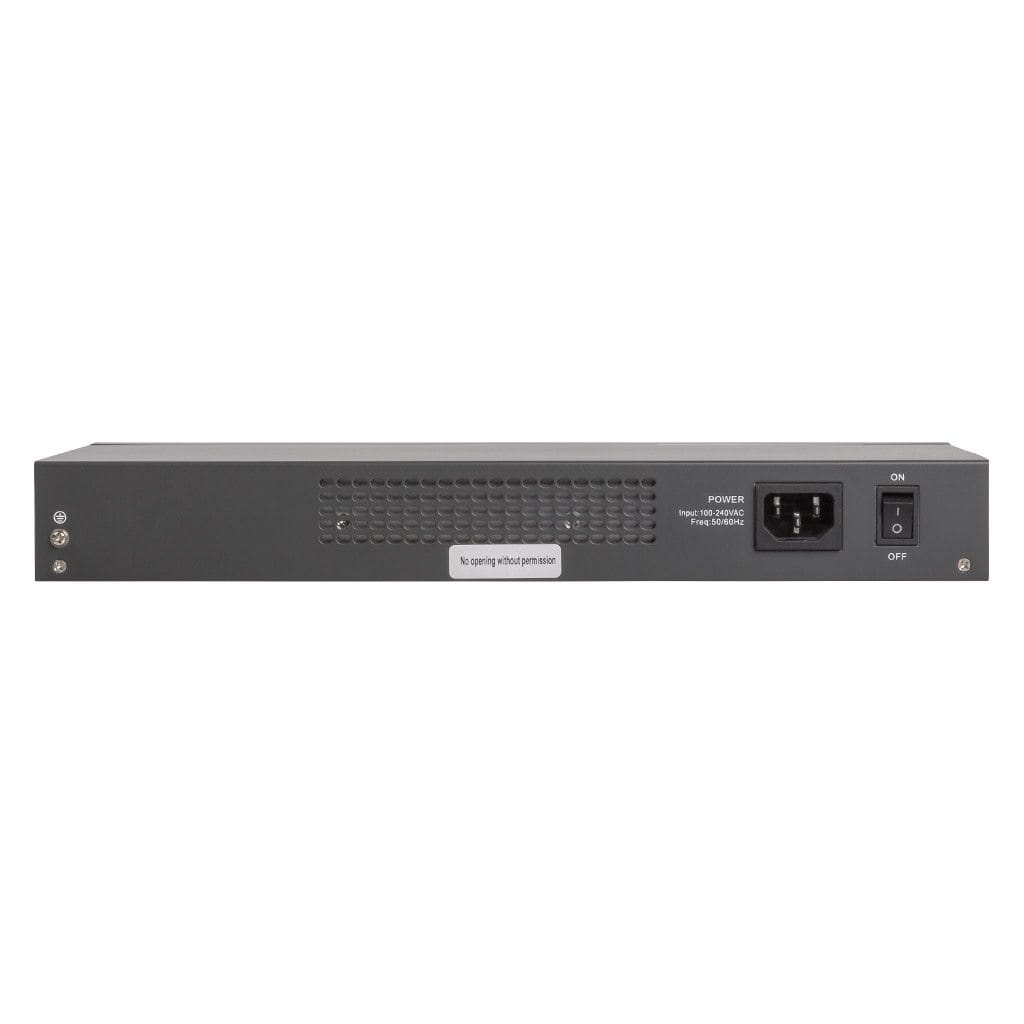

Power Source
110-240VAC (self-adaptive), 47-63Hz, 1A/230V
PoE/PoE+ power supply
Power
Consumption
Max. 170W (including PoE power supply) ,
support 802.3af power supply on 8 ports or
802.3at power supply on 5 ports
Max. 400W (including PoE power supply),
support 802.3af power supply on 24 ports
or 802.3at power supply on 12 ports
Indicator Power indicator, system indicator, connection/data forwarding indicator, 10/100M indicator
Environment
Working temperature: 0 °C ~55 °C (32 °F ~ 131 °F)
Humidity: 0-90% (no condensation)
SFP modules
(Optional)
HK-1.25G-20-1550: 1000M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber,
20km
HK-155M-20-1550: 100M SFP module, TX1550nm/RX1310nm, LC, single-mode single-fiber,
20km
