DS-2TP31B-3AUF

Kamera termowizyjna IP Hikvision typu ręczna, rozdzielczość termowizyjna: 160x120 ; dokładność: +/-0.5st.C; zasięg: 30-45st.C; zakres temperatur pracy: 10-35st.C; wysokość montażu: 1.5m; dystans od twarzy: 1.0m...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

R


DS-2TP31B-3AUF

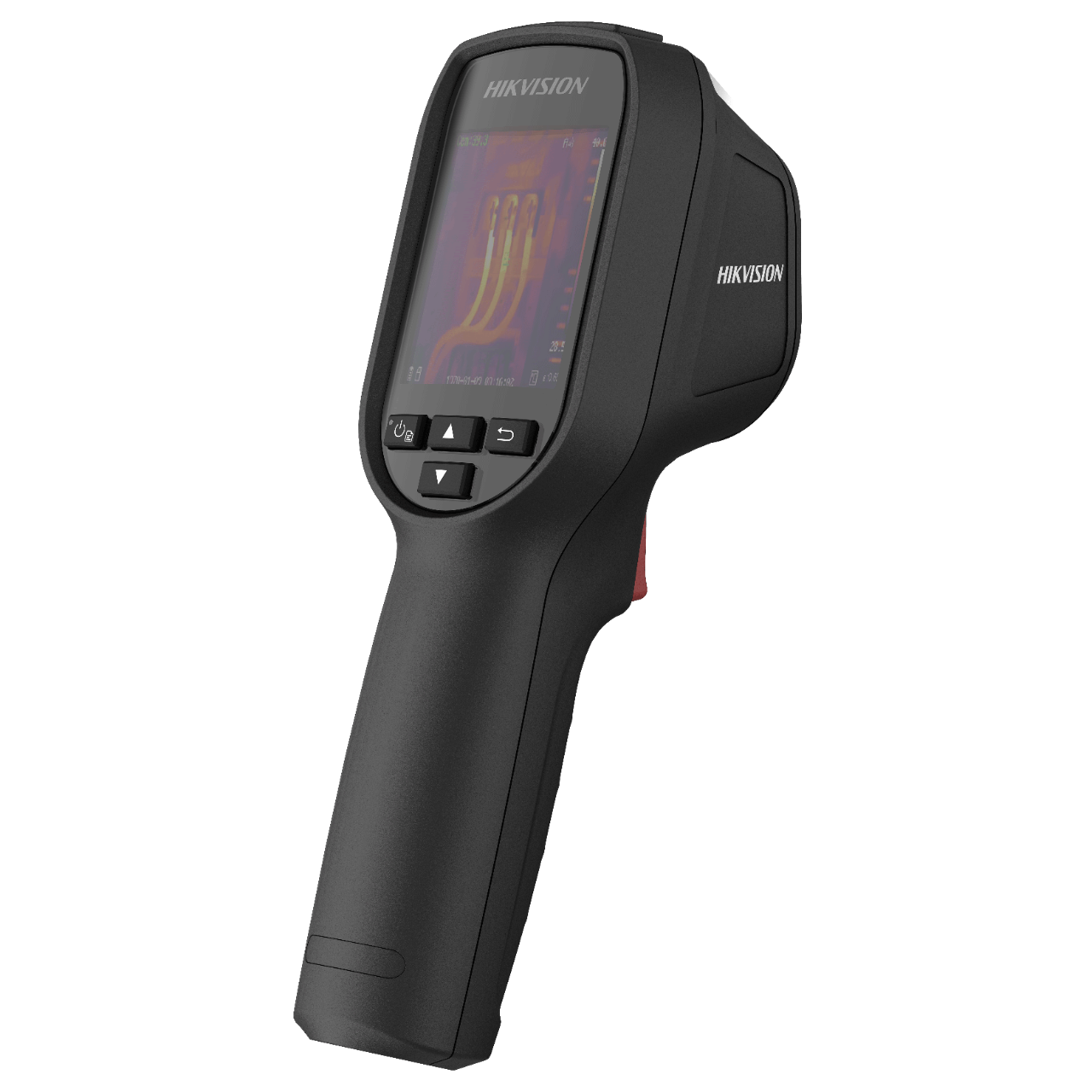

Body Temperature Measurement Camera






The handheld thermal camera, specially designed for body temperature measurement. It’s equipped with a
160x120 resolution thermal detector. It helps to quickly detect fever

Key Features
 160 x 120 resolution
 Thermographic accuracy up to ±0.5 °C
 320 x 240 resolution 2.4’’ LCD display
 Built-in rechargeable Li-ion battery
 Up to 8 hours continuous running

Functions
Thermography
Device detects the real-time temperature, and display it on the screen.
Storage
Device is equipped with replaceable memory card to store recorded captured snapshots, and important data.
Palette
Device supports 4 palettes.








Specification
Model
Parameter
DS-2TP31B-3AUF
Handheld Thermography Camera
Thermal
Module
Image sensor Uncooled Focal Plane Arrays
Max. Resolution 160 x 120
Pixel Pitch 17μm
Response waveband 8μm to 14μm
NETD < 40mK (@ 25 °C,F#=1.0)
Field of View 37.2° x 50 °
Focal length 3.1 mm
IFOV (mrad) 5.48 mrad
Min. Focus Length ≥ 150 mm
Aperture F 1.1
Image Display
Monitor 320 x 240 resolution 2.4’’ LCD display
Palettes Black hot, White hot, Rainbow, Ironbow
Thermography
Rules
3 thermometry points: Max. Temperature; Min.
Temperature; Center Temperature
Thermographic Range 30°C to 45 °C
Thermographic Accuracy ±0.5 °C
Battery
Battery Type Rechargeable Lithium Battery
Battery Operating Time 8 hours continuous running
Storage
Replaceable memory card (default 8G, support up to
128G storage)
Photo Thermal image
Video N.A.
Language English
General
Power 3.7 V DC/0.4 A
Power Consumption Less than 1.2 W
Hardware Interface micro USB
Working Temperature -10 °C to 50 °C (14 °F to 122 °F)
Protection level IP54
Drop Test Height 2 m (6.56 feet)
Dimension 196 mm x 117 mm x 59 mm (7.7 ″ x 4.6 ″ x 2.3 ″)
Weight Approx. less than 350 g (0.77 lb)
Accessory
Power Adaptor, USB cable, 8GB memory card, User
manual, Disk, Wrist Strap



Order Models
DS-2TP31B-3AUF


Box Content

DISK





User Manual (x1) Disk (x1) USB Cable (x1)
power Adapter
(x1)
Wrist Strap (x1)









1000001090123

Dimension
59mm(2.32")
117mm（4.61")
196
mm
(
7
.72
")
