DS-2TD2617-3/V1

Dostępność: 0
Cena: 4 264,00 zł 4264.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 305400683

Opis

Kamera Thermal Bi-spectrum Network Bullet Camera, VOx UFPA 160x120 pixels, Pixel pitch 17 um, NETD< 40mk, 25fps thermal frame rate, Support contrast adjustment, shutter adjustment in various modes,15 palettes of color adjustable, smart features, support bi-spectrum image fusion. Thermometric accuracy (Measurement range): +/-8st.C (-20~150st.C), Support picture in picture preview. Darkfighter Ultra low light, 1/2.8" CMOS sensor, 4mm/6mm fixed lens, up to 40m IR range, Support rotate mode, WDR, BLC 3D DNR, ROI codec, Dual-stream, Streaming in H.265/H.264/MJPEG, H.265+ /H.264+, Up to 20-ch simultaneous live view, Support Micro SD/SDHC/SDXC Card up to 128G, Audio & Alarm I/O, Open-ended API, Power in DC12V or PoE(802.3at), IP66, Thermal Lens (FOV) 3mm (50.00st. x 37.20st.)...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2TD2617-3/PA

Kod produktu zamiennego: 305400843

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2TD2617-3/V1

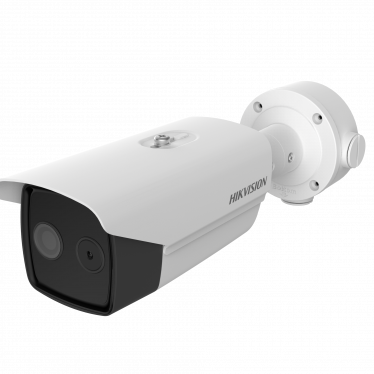

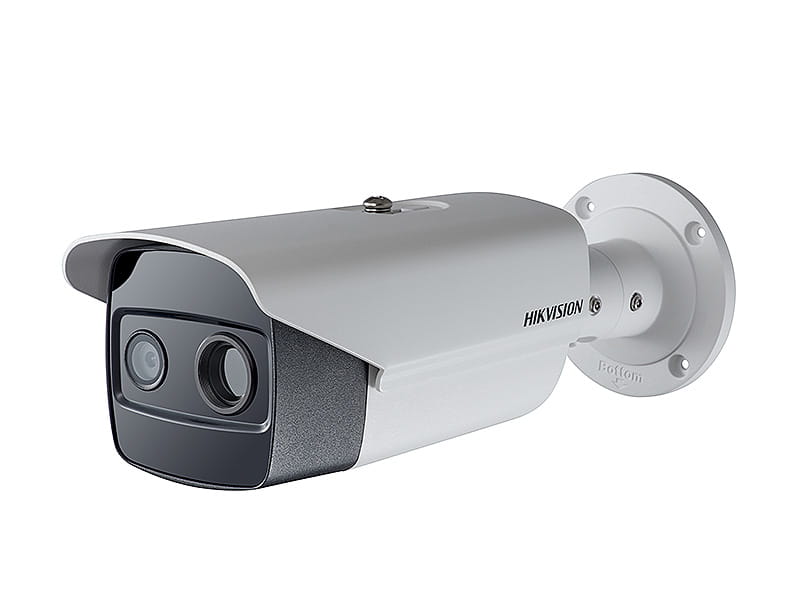

Thermal & Optical Network Bullet Camera



Hikvision DS-2TD2617-3/V1 Thermal Bi-spectrum Network Bullet Camera equipped with built-in GPU which support
intelligent behavior analysis algorithm, can realize high precision VCA detection and real-time alarm. It is applied to
perimeter defense and fire-prevention purposes in critical infrastructures such as: community, villa, construction site,
factory, 4S stores, and so on. The pre-alarm system helps you discover unexpected events immediately and protects you
from property loss.

Smart Function (Thermal Imaging)

• Leading image processing technology: Adaptive AGC, DDE, 3D DNR, NETD less than 40 mk (@25°C,F#=1.1)
• Powerful behavior analysis function, based on deep learning algorithm: Line crossing, Intrusion, Region Entrance & Exit
• Reliable temperature exception alarm function
• Advanced fire detection algorithm
• Bi-spectrum image fusion, picture in picture preview

Thermal Imaging Module Function

• 160 x 120 (the resolution of output image is 320 x 240) resolution sensor, high sensitivity sensor, support contrast
adjustment
•Shutter adjustment in various modes
• 3D DNR, 15 palettes of color adjustable, image detail enhancement
• Mirror image, digital zoom x2, x4, x8, and local output


Specification

Thermal Module
Image SensorVanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution160 x 120 (the resolution of output image is 320 x 240)
Pixel Interval17μm
Response Waveband8μm to 14μm
NETDless than 40 mk (@25°C,F#=1.1)
Lens (Focal Length)3.1 mm
MRAD5.48 mrad
Field of View50° x 37.2° (H x V)
Min. Focusing Distance0.2 m
ApertureF1.1
Optical Module
Max. Image Resolution1920 x 1080
Image Sensor1/2.8” Progressive Scan CMOS
Min. IlluminationColor: 0.002 Lux @(F1.5,AGC ON), B/W: 0.0002 Lux @(F1.5, AGC ON)
Shutter Speed1s to 1/100,000s
Lens (Focal Length)4 mm
Field of View87° x 46.2°(H x V)
WDRDigital WDR
Day & NightIR cut filter with auto switch
Image Function
Bi-spectrum Image FusionFusion view of thermal view and overlaid details of the optical channel

Picture in Picture
Combins details of thermal and optical image PIP, overlay thermal image on optical

Smart Function
VCA (Video Content Analysis)
4 VCA rule types (Line Crossing, Intrusion, Region Entrance, and Region Exiting), up to 8
VCA rules.

Temperature Measurement3 temperature measurement rule types, 21 rules (10 points, 10 areas, and 1 line).
Temperature Range-20 °C to +150 °C (-4 °F to +302°F)
Temperature Accuracy± 8 °C (± 14.4 °F)
Fire detectionDynamic fire point detection, up to 10 fire points detectable.
Infrared
IR DistanceUp to 40 m
IR Intensity and AngleAutomatically adjusted


Network

Main Stream
Visible Light: 50Hz: 25fps (1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
Visible Light: 60Hz: 30fps (1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Thermal: 25fps (160 x 120 (the resolution of output image is 320 x 240))

Sub Stream
Visible Light: 50Hz: 25fps (704 x 576), 25fps (352 x 288), 25fps (176 x 144)
Visible Light: 60Hz: 30fps (704 x 480), 30fps (352 x 240), 30fps (176 x 120)
Thermal: 25fps (160 x 120 (the resolution of output image is 320 x 240))

Video CompressionH.265/H.264/MJPEG, H.265+/H.264+ encoding with Baseline/Main/High Profile
Audio CompressionG .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Simultaneous Live ViewUp to 20
User/Host levelUp to 32 users, 3 levels: Administrator, Operator, User

Security Measures
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x
access control, IP address filtering

Integration
Alarm Input2-ch inputs (0-5vDC)
Alarm Output2-ch relay outputs, alarm response actions configurable
Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input1 3.5mm Mic in/Line in interface. Line input: 2-2.4V[p-p], output impedance:1KΩ±10%
Audio OutputLinear Level; Impedance: 600Ω
Reset1 Reset Button
Ethernet1 RJ45 10M/100M Self-adaptive Ethernet interface, 1 RS-485 interface

SD Memory Card
Built-in Micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128G), support
manual/alarm recording

Analog Video Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
Application ProgrammingOpen-ended API, support ISAPI, HIKVISION SDK and third-party management platform
ClientiVMS-4200
Web BrowserIE9+, chrome31-chrome44, Firefox 30-Firefox51, Safari 5.02+(mac)
General
Menu languageEnglish

Power
12 VDC± 20%
PoE (802.3af, class 4)

Power Consumption
12 VDC ± 20%: max. 12W
PoE (802.3af, class 4)

Working Temperature/Humidity-40 °C to 60 °C (-40 °F to 140 °F), 90% or less

Protection Level
IP66 Standard
TVS 6000V Lightning protection, surge protection, voltage transient protection

Dimensions352.4 mm x 113.5 mm x 114.7 mm (13.9" x 4.5" x 4.5 ")
WeightApprox. 1.5Kg (3.3lb)


Detection Range Table

*
The table is only for reference, the performance may vary from camera to camera.
Smart functions Range

Different targets trigger the VCA events within different range limits.

VCA Range
(Vehicles:
1.4x4.0m)
VCA Range
(Humans:
1.8x0.5m)
Temperature
Measurement
(Object:2x2 m)
Temperature
measurement
(Object:1x1 m)
Fire Detection
(Object:2x2 m)
Fire Detection
(Object:1x1 m)

63 m21 m66 m33 m180 m90 m
Wide Range Coverage

There is range limit for detecting, recognizing, and identifying human/vehicle targets.

Detection Range
(Vehicles:
1.4x4.0m)
Detection Range
(Humans:
1.8x0.5m)
Recognition
Range (Vehicles:
1.4x4.0m)
Recognition
Range (Humans:
1.8x0.5m)
Identification
Range (Vehicles:
1.4x4.0m)
Identification
Range (Humans:
1.8x0.5m)

280 m91 m70 m23 m35 m11 m

Available Model
DS-2TD2617-3/V1
Dimension
