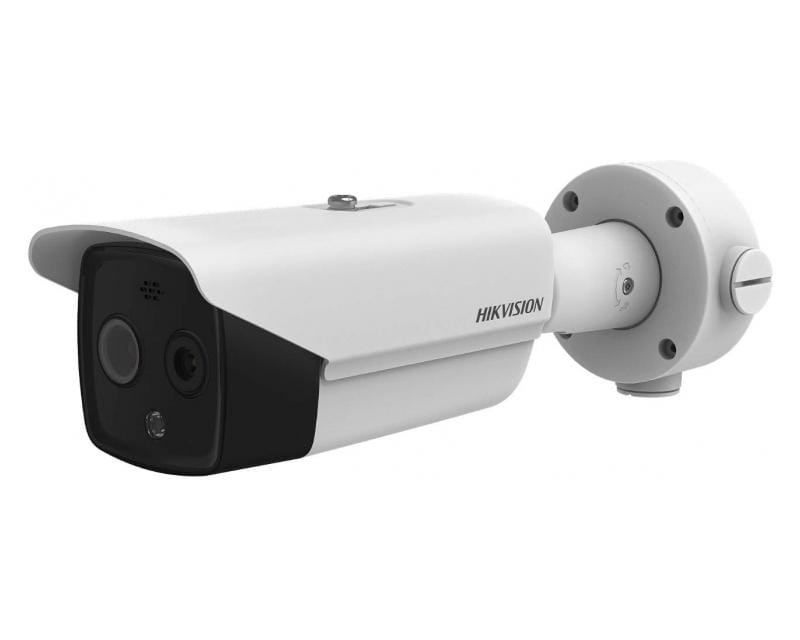

DS-2TD2617-10/PA

Dostępność: 51-100
Cena: 4 264,00 zł 4264.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 305400853

Opis

Kamera IP termowizyjna DS-2TD2617-10/PA wyposażona w układ GPU, który obsługuje inteligentne algorytmy zachowań, dzięki czemu osiąga się wyższą dokładność detekcji VCA. Moduł termowizyjny: przetwornik obrazu VOx UFPA, max. rozdzielczość 160 × 120, NETD ≤ 40 mk (@25 °C,F# = 1.1), zakres widmowy: 8 μm do 14 μm, obiektyw 9.7 mm, FOV 15.96° × 12° (H × V); min. Zakres ostrzenia: 1.2 m; F.1.1; Moduł optyczny: rozdzielczość 2688 × 1520, przetwornik obrazu: 1/2.7" Progressive Scan CMOS; Min. Oświetlenie: 0.0089 Lux @(F1.6, AGC ON), Cz/B: 0.0018 Lux @(F1.6, AGC ON), obiektyw 8 mm, FOV 39.42° × 22.14° (H × V), WDR 120 dB; Funkcje obrazu: Fuzja obrazów, obraz w obrazie; Funkcje SMART: 4 typy reguł VCA, zakres temperaturowy: -20 °C do + 150 °C, dokładność temperaturowa ± 8 °C; Zasięg IR do 40 m; Dwa strumienie, kompresja wideo: H.265/H.264/MJPEG; 2/2 wejścia/wyjścia alarmowe; przycisk resetu; zasilanie 12VDC, temperatura pracy: : -40 °C do 65 °C; Wymiary: 358.3 mm × 113.5 mm × 115.2 mm; Waga 1.76 kg...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2TD2617-10/PA
Thermal & Optical Network Bullet Camera












Hikvision DS-2TD2617-10/PA Thermal Bi-spectrum Network Bullet Camera, equipped with built-in GPU which supports
intelligent behavior analysis algorithm, can realize high-precision VCA detection and real-time alarm. It is applied to
perimeter defense and fire-prevention purposes in critical infrastructures such as community, villa, construction site, factory,
4S stores, and so on. The pre-alarm system helps you discover unexpected events immediately and protects your property.
Smart Function (Thermal Imaging)
● Image processing technology: adaptive AGC, DDE, 3D DNR, NETD ≤ 40 mk (@25 °C,F# = 1.1)
● Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance & exit
● Temperature exception alarm
● Fire detection algorithm
● Bi-spectrum image fusion, picture in picture preview
● Strobe light and audio alarm
Thermal Imaging Module Function
● 160 x 120 (the resolution of output image is 320 x 240) resolution sensor, and high sensitivity sensor
● 3D DNR, 15 palettes of color adjustable, image detail enhancement, and contrast adjustment
● Mirror image, digital zoom x2, x4, x8



Specification

Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 160 x 120 (the resolution of output image is 320 x 240)
Pixel Interval 17μm
Response Waveband 8 μm to 14 μm
NETD (Noise Equivalent
Temperature Difference)
≤ 40 mk (@25 °C,F# = 1.1)
Lens (Focal Length) 9.7 mm
IFOV 2.74 mrad
Field of View 15.96° x 12° (H x V)
Min. Focusing Distance 1.2 m
Aperture F 1.1
Optical Module
Max. Image Resolution 2688 x 1520
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)
Shutter Speed 1 s to 1/100,000 s
Lens (Focal Length) 8 mm
Field of View 39.42° x 22.14° (H x V)
WDR 120 dB
Day & Night IR cut filter with auto switch
Image Function
Bi-spectrum Image Fusion Fusion view of thermal view and overlaid details of the optical channel
Picture in Picture
Combines details of thermal and optical image PIP, overlay thermal image on optical
Smart Function
VCA (Video Content Analysis)
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8
VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
line).
Temperature Range -20 °C to + 150 °C (-4 °F to + 302°F)
Temperature Accuracy ± 8 °C (± 14.4 °F)
Fire Detection Dynamic fire point detection, up to 10 fire points detectable.
Infrared
IR Distance Up to 40 m
IR Intensity and Angle Automatically adjusted



Network
Main Stream
Visible Light: 50Hz: 25fps (2688 x 1520), 25fps (1920 x 1080), 25fps (1280 x 720)
Visible Light: 60Hz: 30fps (2688 x 1520), 30fps (1920 x 1080), 30fps (1280 x 720)
Thermal: 1280 x 720, 704 x 576, 640 x 480, 352 x 288, 320 x 240
Sub-stream
Visible Light: 50Hz: 25fps (704 x 576), 25fps (352 x 288), 25fps (176 x 144)
Visible Light: 60Hz: 30fps (704 x 480), 30fps (352 x 240), 30fps (176 x 120)
Thermal: 704 x 576, 352 x 288, 320 x 240
Video Compression H.265/H.264/MJPEG
Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x
access control, IP address filtering
Integration
Alarm Input 2-ch inputs (0-5 VDC)
Alarm Output 2-ch relay outputs, alarm response actions configurable
Alarm Action
SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white
light alarm
Audio Input
1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ
± 10%
Audio Output Linear level, impedance: 600 Ω
Reset 1, Reset Button
Communication Interface 1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface
SD Memory Card
Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128 GB)
Supports manual/alarm recording
Analog Video Output 1.0 V [p-p]/75 Ω, PAL/NTSC
Application Programming Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform
Client iVMS-4200, Hik-Connect
Web Browser IE9+, Chrome 31-44, Firefox 30-51, Safari 5.02+(mac)
General
Menu language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power
12 VDC ± 20%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption
12 VDC ± 20%: 0.65 A, max. 7.5 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W
Working Temperature/Humidity
Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 95% or less



Protection Level
IP66 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions 358.3 mm x 113.5 mm x 115.2 mm (14.10" x 4.47" x 4.53")
Weight Approx. 1.76 kg (3.88 lb)




Detection Range Table
* The table is only for reference and the performance may vary from camera to camera.
Smart Functions Range
Different targets trigger the VCA events within different range limits.

VCA Range
(Vehicles: 1.4 x
4.0 m)
VCA Range
(Humans: 1.8 x
0.5 m)
Temperature
Measurement
(Object: 2 x 2 m)
Temperature
Measurement
(Object: 1 x 1 m)
Fire Detection
(Object: 2 x 2 m)
Fire Detection
(Object: 1 x 1 m)
210 m 70 m 235 m 118 m 588 m 294 m

Wide Range Coverage
There is range limit for detecting, recognizing, and identifying human/vehicle targets.

Detection Range
(Vehicles: 1.4 x
4.0 m)
Detection Range
(Humans: 1.8 x
0.5 m)
Recognition
Range (Vehicles:
1.4 x 4.0 m)
Recognition
Range (Humans:
1.8 x 0.5 m)
Identification
Range (Vehicles:
1.4 x 4.0 m)
Identification
Range (Humans:
1.8 x 0.5 m)
875 m 285 m 219 m 71 m 109 m 36 m

Available Model
DS-2TD2617-10/PA
Dimension
358.3 mm (14.10")
337.2 mm (13.27")
113.5 mm (4.47")
115
.2
mm
(4
.35
")

Dane techniczne

Rozmiar przetwornika 1/2.7
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Szczelność IP66
Typ kamery Bullet, Tulejowa, Tubowa
Zakres dynamiki (WDR) WDR 120dB
Slot na karty Tak
