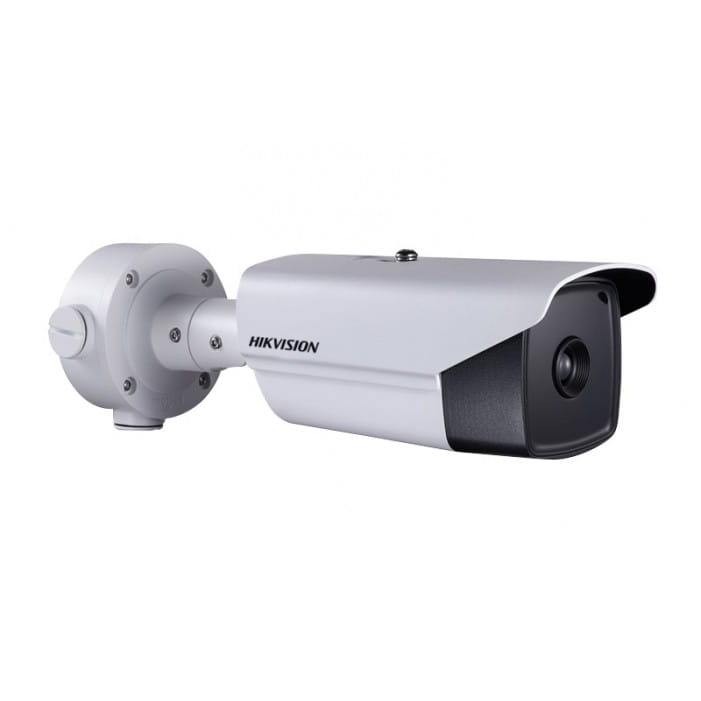

DS-2TD2117-3/PAI

Dostępność: 0
Cena: 3 693,00 zł 3693.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 305401112

Opis

Kamera termowizyjna kamera IP Hikvision typu bullet, VOx UFPA 160x120 pikseli, raster pikseli 17 um, NETD <40 mk, strumień główny / podrzędny / trzeci w maksymalnej rozdzielczości przy 25 fps, wsparcie regulacji kontrastu, 15 palet z regulacją kolorów, inteligentne funkcje, DeepinView, dokładność termograficzna (zakres pomiaru): +/- 8 st. (-20 ~ 150 st.) Alarm świetlny i dźwiękowy, transmisja strumieniowa w H.265 / H.264 / MJPEG, jednoczesny podgląd na żywo do 20 kanałów, obsługa karty Micro SD / SDHC / SDXC do 128G, audio i alarm I / O, Open-ended API, Power in DC12V lub PoE (802.3af), IP66, Panel złączy...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2TD2117-3/PAI
Thermal Network Bullet Camera













Hikvision DS-2TD2117-3/PAI Thermal Network Bullet Camera, equipped with built-in GPU which supports intelligent behavior
analysis algorithm, can realize high-precision VCA detection and real-time alarm. It is applied to perimeter defense and
fire-prevention purposes in critical infrastructures such as community, villa, construction site, factory, 4S stores, and so on.
The pre-alarm system helps you discover unexpected events immediately and protects your property.
Smart Function (Thermal Imaging)
● Image processing technology: adaptive AGC, DDE, 3D DNR, NETD ≤ 40 mK (25 °C, F# = 1.1)
● Behavior analysis function, based on deep learning algorithm: line crossing, intrusion, region entrance & exit
● Temperature alarm for fire prevention
● Fire detection algorithm
● Strobe light and audio alarm
Thermal Imaging Module Function
● 160 x 120 (the resolution of output image is 320 x 240) resolution sensor, and high sensitivity sensor
● Support 3D DNR, 15 palettes of color adjustable, image detail enhancement, and contrast adjustment
● Mirror image, digital zoom x2, x4, x8



Specification

Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution 160 x 120 (the resolution of output image is 320 x 240)
Pixel Interval 17 μm
Response Waveband 8 μm to 14 μm
NETD (Noise Equivalent
Temperature Difference)
≤ 40 mK (25 °C, F# = 1.1)
Lens (Focal Length) 3.1 mm
IFOV 5.48 mrad
Field of View 50° x 37.2° (H x V)
Min. Focusing Distance 0.2 m
Aperture F 1.1
Smart Function
VCA (Video Content Analysis)
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8
VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
line).
Temperature Range -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy ± 8 °C (14.4 °F)
Fire Detection Dynamic fire point detection, up to 10 fire points detectable.
Network
Main Stream 25 fps (1280 x 720, 704 x 576 , 640 x 480 , 352 x 288 ,320 x 240)
Sub-stream 25 fps (704 x 576, 352 x 288 ,320 x 240)
Third Stream 25 fps (1280 x 720 , 704 x 576 ,352 x 288 ,320 x 240)
Video Compression H.265/H.264/MJPEG
Audio Compression G.711u/G.711a/G.722.1/MP2L2/G.726/PCM
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live View Up to 20
User/Host Level Up to 32 users, 3 levels: Administrator, Operator, User
Security Measures
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x
access control, IP address filtering
interface
Alarm Input 1-ch inputs (0-5 VDC)
Alarm Output 1-ch relay outputs, alarm response actions configurable
Alarm Action
SD card record/relay output/smart capture/FTP upload/email linkage /audio
alarm/white light alarm
Audio Input
1, 3.5 mm Mic in/Line in interface. Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ±
10%
Audio Output Linear level, impedance: 600 Ω



Communication Interface 1, RJ45 10M/100M self-adaptive Ethernet interface.
SD Memory Card
Built-in MicroSD card slot, supporting MicroSD/SDHC/SDXC card (up to 256 GB)
Supports manual/alarm recording
Application Programming
Open-ended API, supporting ISAPI, HIKVISION SDK, and third-party management
platform
ONVIF (Profile S, Profile G, Profile T)
Client iVMS-4200, Hik-Connect
Web Browser IE 8-11, Chrome 41-44, Firefox 30-51
General
Menu Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power 12 VDC± 25%, two-core terminal block
PoE (802.3af, class 3)
Power Consumption
9 VDC to 15 VDC:0.4A, max. 4.5 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 5.0 W
Working Temperature/Humidity
-40 °C to 65 °C (-40 °F to 149 °F)
95% or less
Protection Level
IP66 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions 354 mm x 144.1 mm x 156.7 mm (13.94" x 5.67" x 6.17")
Weight Approx. 1.71 kg (3.77 lb)




Detection Range Table
* The table is only for reference and the performance may vary from camera to camera.
Smart Functions Range
Different targets trigger the VCA events within different range limits.

VCA Range
(Vehicles: 1.4 x
4.0 m)
VCA Range
(Humans: 1.8 x
0.5 m)
Temperature
Measurement
(Object: 2 x 2 m)
Temperature
Measurement
(Object: 1 x 1 m)
Fire Detection
(Object: 2 x 2 m)
Fire Detection
(Object: 1 x 1 m)
63 m 21 m 66 m 33 m 180 m 90 m

Wide Range Coverage
There is range limit for detecting, recognizing, and identifying human/vehicle targets.

Detection Range
(Vehicles: 1.4 x
4.0 m)
Detection Range
(Humans: 1.8 x
0.5 m)
Recognition
Range (Vehicles:
1.4 x 4.0 m)
Recognition
Range (Humans:
1.8 x 0.5 m)
Identification
Range (Vehicles:
1.4 x 4.0 m)
Identification
Range (Humans:
1.8 x 0.5 m)
280 m 91 m 70 m 23 m 35 m 11 m

Available Model
DS-2TD2117-3/PAI
Dimension

354 mm (13.94")
333.1 mm (13.11")144.1 mm(5.67")
156
.7
mm
(6
.17
")

Dane techniczne

Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Szczelność IP66
Typ kamery Bullet, Tulejowa, Tubowa
Slot na karty Tak
