DS-2TD1228-3/QA

Dostępność: 11-50
Cena: 3 448,00 zł 3448.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 305401565

Opis

Kamera IP termowizyjna Bispektralna typu Turret z algorytmem deeplearning, klasyfikacja człowiek/pojazd; dla modułu termowizyjnego: Vanadium Oxide Uncooled Focal Plane Arrays, 256 × 192, NETD < 40 mK (25°C, F1.1), ogniskowa: 3.6 mm; IFOV 3.33 mrad; Kąt widzenia: 50.0°(H) x37.3°(V), min. Zasięg ostrości 0.4 m, F1.0, cyfrowy zoom: ×2, ×4: Dla modułu optycznego: 1/2.7" Progressive Scan CMOS, 2688 × 1520, Kolor: 0.0176 Lux @ (F2.25, AGC ON), Cz/B: 0.0035 Lux @ (F2.25, AGC ON); Ogniskowa 4.3 mm, Pole widzenia 84.0°(H) x43.1°(V) ,F1.6, WDR 120dB; Zasięg IR do 15m, zasięg światła białego do 30m, alarm wizualny i dźwiękowy; Funkcje SMART: 4 typy reguł VCA (przekroczenie linii, wtargnięcie, wejście do regionu i wyjście z regionu); 3 typy reguł pomiaru temperatury; Zakres temperatury 20°C do 150°C, dokładność ± 8°C (± 14.4°F), dwa strumienie, H.265/H.264; ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G); 1/1 we/wyj alarmowe; 1 we alarmowe, wyjście alarmowe; Zasilanie: 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3); Temperatura pracy: -40°C do 65°C; IP66; Wymiary: 138.3 mm × 138.3 mm × 123.1mm; Waga: 940 g...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

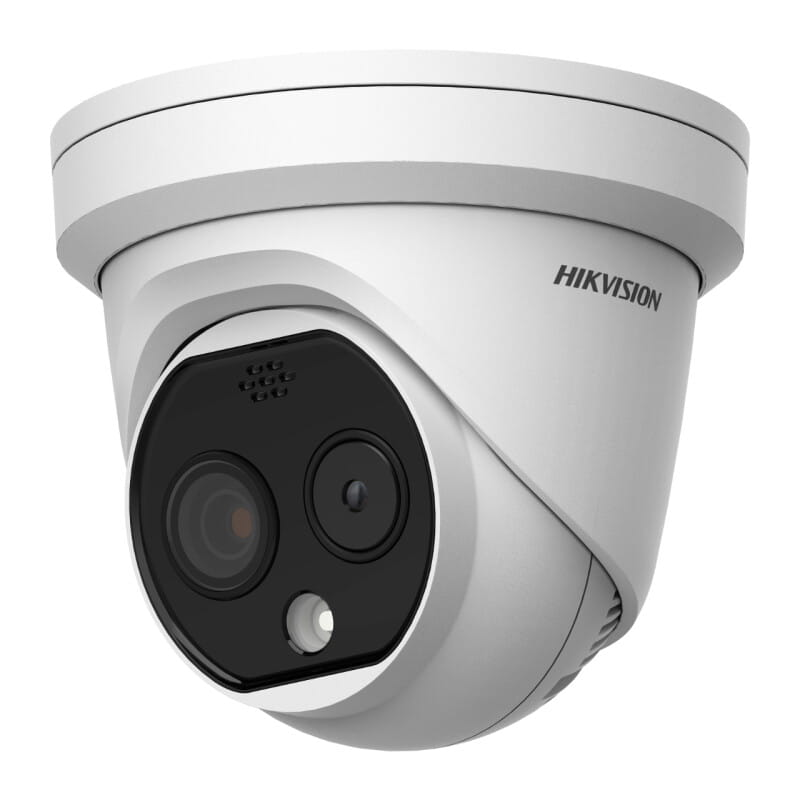

DS-2TD1228-3/QA
Thermal & Optical Bi-spectrum Network Turret Camera









Hikvision DS-2TD1228-3/QA Thermal & Optical Bi-spectrum Network Turret Camera supports video analysis for perimeter
protection, and also temperature exception alarm for early fire prevention. With the deep learning algorithm, it can
realize high precision VCA detection and real-time alarm. These camera series can be widely applied to villas,
communities, parking lots, warehouses, construction sites, waste incineration plants, manufacturing workshops, etc.

 Key Feature
 256 x 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
 Video content analysis: vehicle/human classification
 Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
 Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
 High quality detector with 10 years guarantee




 Specification
Thermal Module
Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 x 192
Pixel Pitch 12 μm
Spectral Range 8 μm to 14 μm
NETD < 40 mK (25°C, F1.1)
Focal Length 3.6 mm
IFOV 3.33 mrad
Field of View 50.0°(H) x37.3°(V)
Min. Focusing Distance 0.4 m
Aperture F1.0
Digital Zoom x2, x4
Optical Module
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 x 1520
Min. Illumination Color: 0.0176 Lux @ (F2.25, AGC ON), B/W: 0.0035 Lux @ (F2.25, AGC ON)
Shutter Speed 1 s to 1/100,000 s
Focal Length 4.3 mm
Field of View 84.0°(H) x43.1°(V)
Aperture (Range) F1.6
WDR 120 dB
Image Effect
Target Coloration Yes. Supported in white hot and black hot mode.
Illuminator
IR Distance Up to 15 m
IR Intensity and Angle Automatically adjusted
Audible and Visual Alarm
White Light Range Up to 30 m
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
Audio alarm
Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types)
Smart Function
VCA
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8
VCA rules in total.
Temperature Measurement
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
line)
Temperature Range -20°C to 150°C (-4°F to 302°F)
Temperature Accuracy ±8°C (±14.4°F)



Video and Audio
Main Stream
Thermal:
25 fps (1280 x 720, 704 x 576, 640 x 512, 320 x 240)
Optical:
50 Hz: 25 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
60Hz: 30 fps (2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-stream
Thermal:
25 fps (704 x 576, 640 x 512, 320 x 240)
Optical:
50 Hz: 25 fps (704 x 576, 352 x 288)
60 Hz: 30 fps (704 x 480, 352 x 240)
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP
Network Storage
MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto
Network Replenishment (ANR)
API
ISAPI, HIKVISION SDK, and third-party management platform, Open Network Video
Interface (Profile S, Profile G)
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security
User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE
802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
Client iVMS-4200, Hik-Connect
Web Browser
Live view (plug-in allowed) : Internet Explorer 11
Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +
Local service : Chrome 57.0+, Firefox 52.0 +
Interface
Alarm Input 1, alarm input (0-5 VDC)
Alarm Output 1, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex)
General
Web Client Language
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3)




Power Consumption
12 VDC ± 25%: 0.5 A, Max. 6 W
PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max. 6.5 W
Working Temperature/Humidity
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less
Protection Level
IP66 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
Dimensions 138.3 mm x 138.3 mm x 123.1 mm (5.45" x 5.45" x 4.85")
Weight 940 g (2.07 lb)






DRI Range Table
* The table is only for reference and the performance may vary according to different environment.
* The optimal detection, recognition, and identification distances are calculated according to Johnson’s Criteria.
Detection Range: In order to distinguish an object from the background, the object must be covered by 1.5 or more pixels.
Recognition Range: In order to classify the object (animal, human, vehicle, etc.), the object must be covered by 6 or more
pixels.
Identification Range: In order to identify the object and describe it in details, the object must be covered by 12 or more
pixels.
.

Detection Range
(Vehicles: 1.4 x
4.0 m)
Detection Range
(Humans: 1.8 x
0.5 m)
Recognition
Range (Vehicles:
1.4 x 4.0 m)
Recognition
Range (Humans:
1.8 x 0.5 m)
Identification
Range (Vehicles:
1.4 x 4.0 m)
Identification
Range (Humans:
1.8 x 0.5 m)
460 m 150 m 112 m 38 m 56 m 19 m

Smart Function Table
* The table is only for reference and the performance may vary according to different environment.
VCA Range (Vehicles: 1.4 x
4.0 m)
VCA Range (Humans: 1.8 x
0.5 m)
Temperature Measurement
(Object: 0.2 x 0.2 m)
Temperature Measurement
(Object: 1 x 1 m)
75.6 m 28.4 m 11.7 m 58.3 m


 Available Model
DS-2TD1228-3/QA




 Dimension


Unit: mm [Inch]


 Accessory
 Optional


DS-1273ZJ-140
Wall Mount

DS-1280ZJ-DM21
Junction Box

DS-1275ZJ-SUS
Vertical Pole Mount

DS-1276ZJ-SUS
Corner Mount

DS-1273ZJ-140 (BLACK)


DS-1271ZJ-140
Pendant Mount

DS-1273ZJ-140
Wall Mount

COMPLIANCE NOTICE: The thermal series products might be subject to export controls in various countries or regions,
including without limitation, the United States, European Union, United Kingdom and/or other member countries of the
Wassenaar Arrangement. Please consult your professional legal or compliance expert or local government authorities for any
necessary export license requirements if you intend to transfer, export, re-export the thermal series products between
different countries.

Dane techniczne

Wejścia alarmowe 1
Wyjścia alarmowe 1
Wyjście audio 1
Wejście audio 1
Rozmiar przetwornika 1/2.7
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Szczelność IP66
Rozdzielczość wizyjna 4MPIX
Typ kamery Turret, Eyeball, Kulista
Oświetlacz podczerwieni ± 10 m
Oświetlacz światła białego ± 30 m
Zakres dynamiki (WDR) WDR 120dB
Typ obiektywu Stałoogniskowy
Stała ogniskowa ± 3.8 mm
Slot na karty Tak
