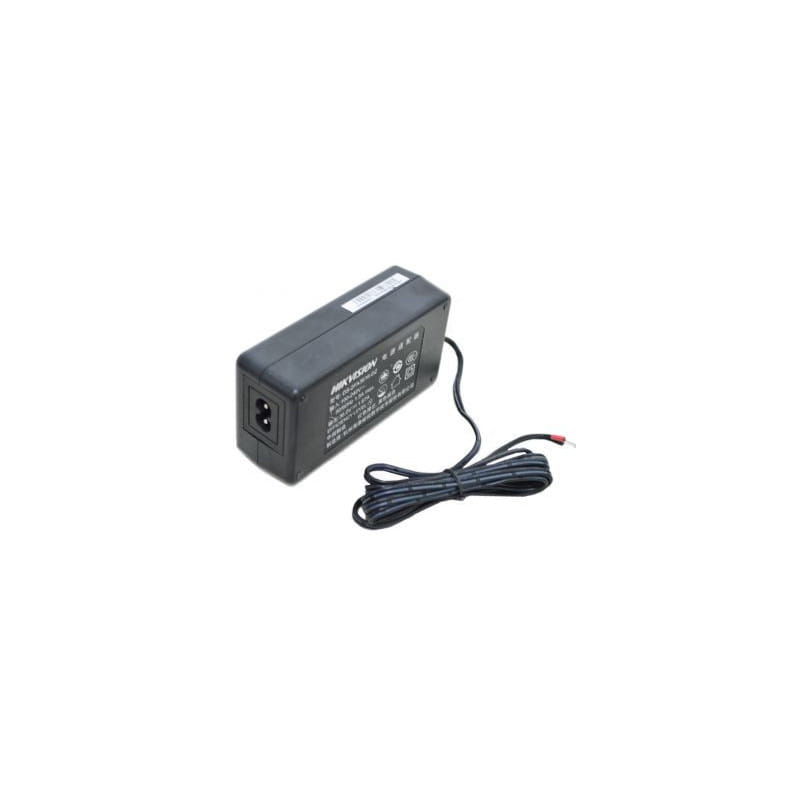

DS-2FA3616-DZ-HW

Zasilacz DC36V do kamery iDS-2CD8426...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Revised in Oct. 2017
DS -2FA3616-DZ -HW
Power Adapter (36 VDC 1.67 A)
Features
 Stabilized DC voltage supplier, input voltage 100 VAC to 240 VAC
 Short circuit protection, overcurrent protection, and output over voltage protection
 Accordance with CE/GS/CCC/RCM/UL/FCC, good EMC performance, environment-friendly
 Applicable to video/audio and data communication products, such as, camera and router
 Table mount
 C8 female connector, supplied power cord of C7 male connector
Available Model
DS -2FA3616-DZ -HW
Dimension 109.8±1
5
6
.
3
±
1
3
5
.
0
±
1
Red +Black -
Unit: mm



Technical Parameter
Model
Parameter

DS -2FA3616-DZ -HW
Power Adapter (36 VDC 1.67 A)
Color Black
Mounting Type Table mount
Input 100 VAC to 240 VAC, 50 Hz , 1.5 A
Output 36 VDC, 1.67 A
Load Regulation ±5%
Ripple & Noise 150 mVp-p
Output Power Max. 60 W



Revised in Oct. 2017
Input Interface C8 female, includes a power cord of C7 male connector
Output Interface Two wire, red for positive
Wire Length Output wire, 1500 mm
Temperature and Humidity 0°C to 40 °C (32°F to 104°F), humidity 10% to 90%, no condensing
Dimension (mm/inch) 109.8 (L) x 57.3 (W) x 36.0 (H)/4.32 " (L) x 2.26 " (W) x 1.42 (H)
Weight (g/lb.) 108 g/0.24 lb.

Note: The full load output power is 60 W at the temperature between 0°C to 40°C (32°F to 104°F). When the adapter is used in
environment of 40°C to 70°C (104°F to 158° F), the full-load output power is max. 40 W.
