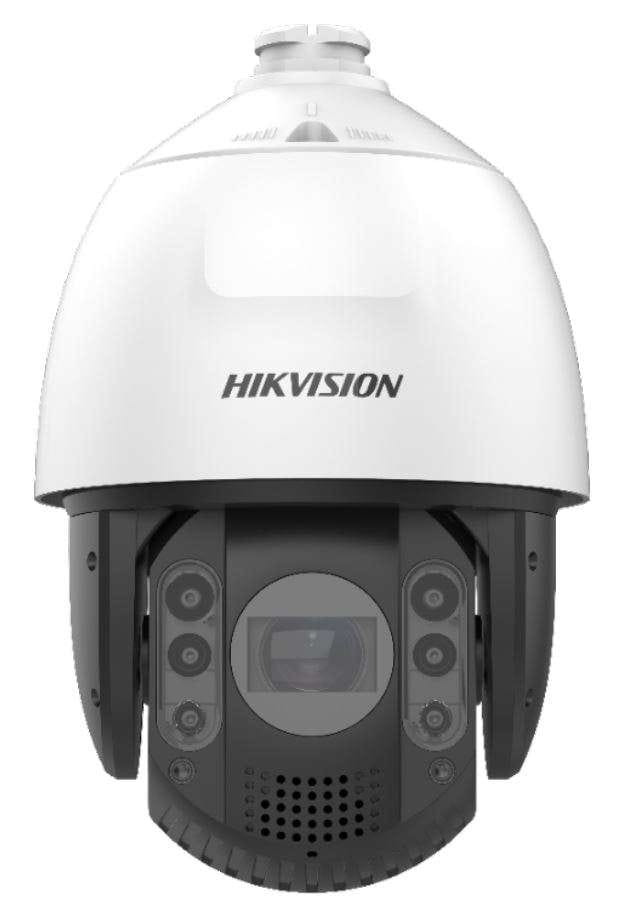

DS-2DE7A432IW-AEB(T5)

Kamera IP PTZ AcuSense, technologia powered-by-DarkFighter, 1/1.8" progressive scan CMOS; Min. Oświetlenie: Kolor 0.005 Lux @ (F1.5, AGC ON); Cz/B: 0.001 Lux @ (F1.5, AGC ON), 0 Lux dla IR, wolna migawka, ICR, Zoom: 32x optyczny, 16x cyfrowy; Ogniskowa: 5.9-188.8 mm, HFOV 50.8° do 2.6° (wide-tele), VFOV: 29.4° do 1.5° (wide-tele), DFOV:57.4° do 3° Zasięg IR do 200m; trzy strumienie; H.265+/H.265/H.264+/H.264; rozdzielczość 2560 × 1440; Pamięć masowa: NAS (NFS, SMB/CIFS), ANR; obraz: BLC, HLC, 3D DNR, WDR 120 dB, cyfrowy Defog, EIS, obszar ekspozycji, obszar ostrości; 24 programowalne maski prywatności; Wbudowany slot na kartę microSD/SDHC/SDXC do 256 GB; 2/1 we/wy alarmowe, 1/1 we/wyj audio, wbudowany głośnik; Zdarzenia podstawowe, zdarzenia smart, smart tracking, funkcje deeplearning (przechwytywanie twarzy, ochrona perymetryczna); zasilanie: 24 VAC, max. 42 W (w tym max. 18 W dla IR i max. 10 W dla grzałki); Hi-PoE; temp.pracy -30 °C do 65 °C; Wymiary: Ø 220 mm × 363.3 mm; Waga ok 5kg; IP66 (IEC 60529-2013), IK10...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2DE7A432IW-AEB(T5)
4 MP 32x IR Network Speed Dome












Hikvision DS-2DE7A432IW-AEB(T5) 4 MP 32x IR Network
Speed Dome adopts 1/1.8" progressive scan CMOS chip.
With the 32x optical zoom lens, the camera offers more
details over expansive areas.
This series of cameras can be widely used for wide ranges of
high-definition, such as the rivers, roads, railways, airports,
squares, parks, scenic spots, and venues, etc.
Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.

 1/1.8" progressive scan CMOS
 High quality imaging with 4 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology
 Audio visual alarm: The white flashing light and audible
warning can be triggered by certain events
 32x optical zoom and 16x digital zoom provide close up
views over expansive areas
 Expansive night view with up to 200 m IR distance
 Focuses on human and vehicle targets classification based
on deep learning
 Face capture: Up to 5 faces captured at the same time





 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:
2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 2046.9 m (6715.5 ft) 812.3 m (2665.0 ft) 409.4 m (1343.2 ft) 204.7 m (671.6 ft)

 Specification
Camera
Max. Resolution 2560 x 1440
Image Sensor 1/1.8" progressive scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux@(F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Slow Shutter Yes
Day & Night IR cut filter
Zoom 32x optical, 16x digital
Lens
Focal Length 5.9 mm to 188.8 mm
Zoom Speed Approx. 4.8 s
FOV
Horizontal field of view: 50.8° to 2.6° (wide-tele),
Vertical field of view: 29.4° to 1.5° (wide-tele),
Diagonal field of view:57.4° to 3° (wide-tele)
Aperture Max. F1.5
Focus Auto, semi-auto, manual, rapid focus
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 200 m
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
Tilt Speed Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
Proportional Pan Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory Yes
Park Action Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, aux output



Video
Main Stream
50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720);
60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288);
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288);
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/16-64 Kbps
(AAC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
Open Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK,
ISUP
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users, 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings,
security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE11, Chrome 57+, Firefox 52+, Safari 11+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) 120 dB
Defog Digital defog
Image Stabilization EIS
Regional Exposure Yes
Regional Focus Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser



Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
SNR > 52 dB
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm 2 inputs, 1 output
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection, unattended baggage detection, object removal detection, audio exception
detection
Smart Tracking Manual tracking, auto-tracking
Alarm Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, audible warning, white light flashing, and PTZ actions (such
as preset, patrol scan, pattern scan)
Deep Learning Function
Face Capture
Detects up to 5 faces simultaneously.
Supports detecting, capturing, grading, selecting of face in motion, and output the best
face picture of the face
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power
24 VAC, max. 42 W (including max. 18 W for IR and max. 10 W for heater);
Hi-PoE
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Demist Yes
Material ADC12
Dimension Ø 220 mm x 363.3 mm (Ø 8.66" x 13.91")
Weight Approx. 5 kg (11.03 lb.)
Approval
Protection
IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection,
surge protection and voltage transient protection
EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2019);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 62368-1:2014+A11:2017);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (SANS IEC60950-1)



Environment
CE-RoHS (2011/65/EU); WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)



 Dimension



 Accessory
 Included
DS-1602ZJ
Wall mount


 Available Model
DS-2DE7A432IW-AEB(T5)



 Optional
DS-1619ZJ DS-1662ZJ DS-1660ZJ DS-1661ZJ DS-1673ZJ


DS-1604ZJ-BOX-
CORNER
DS-1604ZJ-box
DS-1604ZJ-BOX-
POLE
DS-1681ZJ DS-1682ZJ


DS-1667ZJ DS-1663ZJ DS-1604ZJ


*DS-1673ZJ should be used with DS-1661ZJ or DS-1602ZJ.
