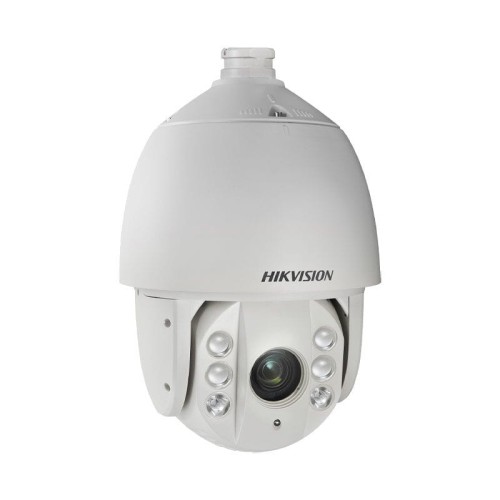

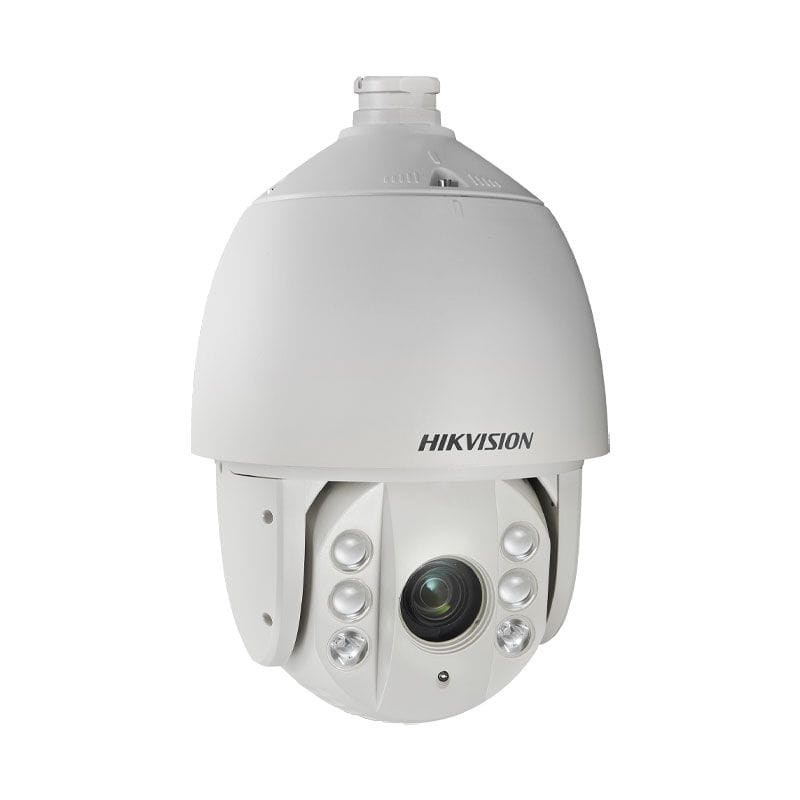

DS-2DE7225IW-AE(B)

Kamera PTZ IP Hikvision, rozdzielczość 2MP (max. 1920x1080@60kl/s), przetwornik: 1/2.8" Progressive Scan CMOS, czułość: tryb kolorowy: 0.005 Lux (F1.6, wł. AGC), CZ/B: 0.001 Lux (F1.6, wł. AGC), 0 Lux z IR, zasięg IR do 150m, dzień/noc ICR, zoom optyczny 25x (ogniskowa 4.8-120mm), zoom cyfrowy 16x, HFOV od 57.6st. do 2.5st., VFOV od 34.4st. do 1.4st., DFOV od 64.5st. do 2.9st., apertura: F1.6-F3.5 Funkcje: EIS, WDR: 120dB, 3D DNR, HLC/BLC, Defog, 8 strefy prywatności, harmonogram. Trzy strumienie, kompresja: H.265+/H.265/H.264+/H.264/MJPEG. Analityka: detekcja intruza, detekcja przekroczenia linii, detekcja wejścia/wyjścia z obszaru, detekcja pozostawienia bagażu, detekcja usuniecia przedmiatu, wykrywanie twarzy, wyjątek audio. Podstawowe zdarzenia: detekcja ruchu, wej/wyj alarmowe, detekcja sabotażu. ROI: 4 strefy. Wbudowany slot kart pamięci (do 256 GB). Prędkość obrotu w poziomie: 0.1st. - 160st./s (240st./s dla presetu), prędkość obrotu w pionie: 0.1st.- 120st./s (200st./s dla presetu), zakres obrotu: 360st. bez punktu krańcowego, zakres wychylenia pionowego: od -15st. do 90st. (z funkcją AutoFlip), Ilość presetów: 300, Ilość patroli: 8 (do 32 presetów na patrol), Pattern: 4 trasy. 1 wejście/1 wyjście audio, kompresja audio G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM, 2 wejścia/1 wyjście alarmowe. Temperatura pracy: -30st.C~65st.C. Stopień ochrony IP66, ochrona przeciwpiorunowa 4000V. Wymiary: śr.220x353.4mm, waga około 4.5kg. Zasilanie 24VAC/High-PoE....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2DE7225IW-AE(S6)

Kod produktu zamiennego: 327000138

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Hikvision DS-2DE7225IW-AE 2 MP 25x Network IR Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With
the 25x optical zoom lens, the camera offers more details
over expansive areas.
This series of cameras can be widely used for wide
ranges of high-definition, such as the rivers, forests,
roads, railways, airports, ports, squares, parks, scenic
spots, stations and large venues, etc.

Key Features
* 1/2.8" progressive scan CMOS
* Up to 1920 x 1080 resolution
* Min. illumination:
Ultra-low light:
Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.001 Lux @(F1.5, AGC ON)
0 Lux with IR
* 25x optical zoom, 16x digital zoom
* 120dB WDR, 3D DNR, HLC, BLC
* Up to 150 m IR distance
* 24 VAC & Hi-PoE
* Support H.265+/H.265 video compression

DS-2DE7225IW-AE
2 MP 25x Network IR Speed Dome


Specification
Camera Module 2 MP 25x Network IR Speed Dome
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination
Ultra-low light: Color: 0.005 Lux @(F1.5, AGC ON)
B/W: 0.001 Lux @(F1.5, AGC ON)
0 Lux with IR
White Balance Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
AGC Auto/Manual
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120dB
Lens
Focal Length 4.8 mm to 120 mm, 25x optical
Zoom Speed Approx. 3.2 s (optical lens, wide-tele)
FOV
Horizontal field of view: 57.6° to 2.5° (wide-tele)
Vertical field of view: 34.4° to 1.4° (wide-tele)
Diagonal field of view: 64.5° to 2.9° (wide-tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F3.8
IR
IR Distance 150 m
Smart IR Support
PTZ
Movement Range (Pan) 360° endless
Pan Speed
Configurable, from 0.1°/s to 160°/s
Preset Speed: 240°/s
Movement Range (Tilt) From -15° to 90° (Auto-flip)
Tilt Speed Configurable, from 0.1°/s to 120°/s
Preset Speed: 200°/s
Proportional Zoom Support
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Support
Park Action
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame
Scan/Panorama Scan
PTZ Position Display Support
Preset Freezing Support
Scheduled Task
Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame
Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output
Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile


H.265+ Support
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722/G.726/MP2L2/PCM
Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps (MP2L2)
SVC Support
Smart Feature
Basic Event Detection Motion Detection, Video Tampering Detection, Alarm Input, Alarm Output, Exception
Smart Detection
Audio Exception Detection, Face Detection, Intrusion Detection, Line Crossing
Detection, Region Entrance Detection, Region Exiting Detection, Unattended Baggage
Detection, Object Removal Detection
ROI encoding Main stream, sub-stream and third stream respectively support four fixed areas.
Smart Tracking Manual Tracking, Auto Tracking, Event Tracking
Smart Record ANR (Automatic Network Replenishment), Dual-VCA
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
50fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
60fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream 50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS,
SMB/ CIPS), ANR
Alarm Linkage Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify
Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
Open-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party
Management Platform
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users.
3 levels: Administrator, Operator and User
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS
encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8+, Firefox 30+, Safari 8.0+ web browser
Interface
Audio Interface 1-ch audio input and 1-ch audio output
Alarm Interface 2-ch alarm input and 1-ch alarm output
Network Interface 1 RJ45 10 M/100 M Ethernet Interface; Hi-PoE
General
Power 24 VAC & Hi-PoE, Max.: 40 W (IR Max.19 W)
Working Temperature -30°C to 65°C (-22°F to 149°F)
Working Humidity ≤ 90%
Protection Level
IP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Material Aluminum Alloy
Dimensions Φ 220 mm x 353.4 mm (Φ 8.66" x 13.91")
Weight Approx. 4.5 kg (9.92 lb)


Order Model
DS-2DE7225IW-AE, 24 VAC & Hi-PoE

Dimensions
Unit: mm
3
5
3
.
4
Φ
2
2
0
Φ47
1
0
2
0




0505111070721
Accessories

DS-1602ZJ Wall Mounting Bracket

DS-1602ZJ-corner Corner Mounting Bracket

DS-1602ZJ-pole Vertical Pole Mounting Bracket

DS-1602ZJ-box Wall Mounting Bracket with Junction Box

DS-1663ZJ Ceiling Mounting Bracket

DS-1661ZJ Pendant Mounting Bracket

DS-1662ZJ Pendant Mounting Bracket

DS-1619ZJ Gooseneck Mounting Bracket

DS-1100KI Network Keyboard

DS-1005KI USB Joy-stick
