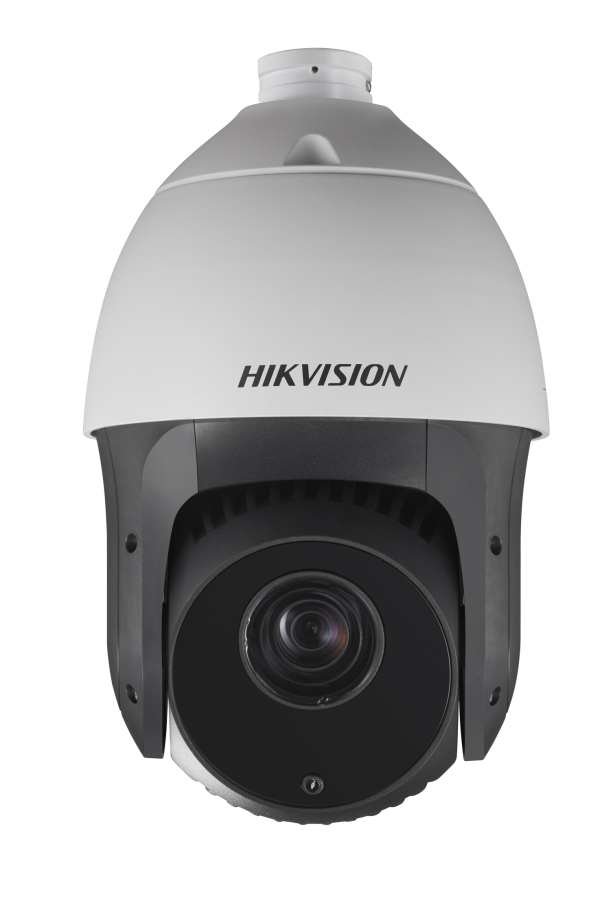

DS-2DE5425IW-AE(T5)

Kamera IP PTZ 4MP, 1/2.8" progressive scan CMOS, powered-by-DarkFighter oraz AcuSens, Kolor: 0.005 Lux @ (F1.6, AGC ON); CZ/B 0.001 Lux @ (F1.6, AGC ON), 0 Lux dla IR; 120 dB WDR, HLC, BLC, 3D DNR, Defog, obszar ekspozycji, obszar ostrości; 16x cyfrowy zoom, 25x optyczny zoom; ogniskowa; od 4.8 mm do 120 mm; HFOV 55° do 2.4° (wide-tele), VFOV: 32° do 1.4° (wide-tele), DFOV: 61.5° do 2.8° (wide-tele); 300 presetów, 8 patroli 4 trasy; Rozdzielczość: 2560 × 1440, trzy strumienie; H.265, H.264, MJPEG; Funkcje: podstawowe zdarzenia, zdarzenia smart (z weryfikacją obiektu człowiek/pojazd), nagrywanie smart.; Sieć: NAS (NFS, SMB/ CIFS), ANR; Interfejs: 2/1 wej./wyj alarmowe; 1/1 wej./wyj audio; Zasięg IR do 150m; Zasilanie: 24 VAC, PoE (802.3at) Temperatura pracy: -30°C do 65°C, reset, Wymiary: Φ 210 mm × 344.6 mm waga 3kg; IP66...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2DE5425IW-AE (S5)
4 MP 25 x IR Network Speed Dome











Hikvision DS-2DE5425IW-AE (S5) 4 MP 25 x IR Network Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With the 25 x
optical zoom lens, the camera offers more details over
expansive areas.
This series of cameras can be widely used for wide ranges of
high-definition, such as the rivers, roads, railways, airports,
squares, parks, scenic spots, and venues, etc.
 Accurate human and vehicle target classification, alarm, and
linked tracking based on deep learning algorithm
 Support face capture. Up to 5 faces captured at the same time
 1/2.8" Progressive Scan CMOS
 Up to 2560 x 1440 @30fps resolution
 Excellent low-light performance with powered-by-DarkFighter
technology
 25 x optical zoom, 16 x digital zoom
 WDR, HLC, BLC, 3D DNR, Defog, Regional Exposure, Regional
Focus
 Up to 150 m IR distance
 24 VAC & Hi-PoE
 Support H.265+/H.265 video compression





 Specification
Camera Module
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30000 s
Slow Shutter yes
Focus semi-auto, manual, auto
Day & Night ICR
Day/Night Switch day, night, auto, scheduled-switch
BLC yes
WDR 120 dB WDR
HLC yes
3D DNR yes
Defog yes
EIS yes
Regional Exposure yes
Regional Focus yes
Image Settings saturation, brightness, contrast, sharpness
White Balance auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Digital Zoom 16 x
Optical Zoom 25 x
Privacy Mask up to 24 masks, polygon region, mosaic mask, mask color configurable
SNR ＞52dB
Lens
Focal Length 4.8 mm to 120 mm, 25 x Optical
Zoom Speed approx. 3.6 s
FOV 57.6° to 2.5° (Wide-Tele)
Aperture F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory yes
Park Action
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan
3D Positioning yes
PTZ Status Display yes
Preset Freezing yes
Scheduled Task
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution 2560 x 1440
Stream Type main stream, sub-stream, third stream
Main Stream
50Hz: 25fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288);
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288);
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type baseline profile, main profile, high profile
H.265 Type main profile
H.264+ yes



H.265+ yes
SVC yes
ROI
dynamic face tracking, fixed region, main stream, sub-stream and third stream
respectively support eight fixed areas
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit rate
MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128
kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling Rate MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering yes
Smart Features
Face Capture yes
Basic Event
audio exception, motion detection, alarm input, alarm output, video tampering alarm,
exception
Smart Event
intrusion detection, line crossing detection, region entrance detection, region exiting
detection, unattended baggage detection, object removal detection
Smart Tracking manual tracking, event tracking, auto-tracking
Smart Record ANR, Dual-VCA
Alarm Linkage
preset, patrol scan, pattern scan, memory card video recording, alarm output, sending
email, notify surveillance center, upload to FTP,smart tracking
Network
Network Storage NAS (NFS, SMB/ CIFS), ANR
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API ISAPI, Hikvision SDK, Hik-Connect, ONVIF (Profile S, Profile G, Profile T), ISUP
Simultaneous Live View 20
User/Host 32
Smooth Streaming yes
Security Measures
Authenticated username and password, MAC address binding, HTTPS encryption,
802.1X authenticated access, IP address filter
Client iVMS-4200
Web Browser ,IE 8 to 11, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage support microSD/microSDHC/microSDXC cards, up to 256 GB ,
Alarm Input 2 alarm inputs
Alarm Output 1 alarm output
Audio Input 1 audio input
Audio Output 1 audio output, line level, impedance: 600 Ω
Supplement Light
IR Distance 150 m
General
Power 24 VAC, Hi-PoE
Power Consumption and Current Max. 30 W, including max. 10 W for IR
Operating Conditions -30°C to 65°C (-22°F to 149°F)
Reset yes
Material ADC 12, PC+10% GF
Dimensions Φ 208 mm x 345 mm (Φ 8.19" x 13.58")
Weight Approx. 3.3 kg (7.28 lb)
Approval
Protection
IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient
Protection


 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:
2015.




DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 2200.0 m (7217.8 ft) 873.0 m (2864.2 ft) 440.0 m (1443.6 ft) 220.0 m (721.8 ft)


 Dimension



 Accessory
 Included




DS-1602ZJ
Wall Mount


 Optional





DS-1604ZJ-Box-Corner
Wall Mount with Junction
Box
DS-1604ZJ-Box
Wall Mount with Junction
Box
DS-1604ZJ
Wall Mount
DS-1619ZJ
Gooseneck Mount







DS-1682ZJ
Extendable Pole for Pendant
Mount
DS-1604ZJ-pole
Vertical Pole Mount
DS-1604ZJ-Box-Pole
Vertical Pole Mount with
Junction Box
DS-1604ZJ-Corner
Corner Mount


DS-1661ZJ
Pendant Mount
DS-1663ZJ
Ceiling Mount
DS-1681ZJ
Installation Adapter
DS-1673ZJ
Horizontal Pole Mount



DS-1660ZJ
Parapet Wall Mount
DS-1662ZJ
Pendant Mount
DS-1667ZJ
Extendable Pole for Pendant
Mount
HKA-A24250-230(EU)
HKKD-12077(USA)
HKA-A24250-230-BS(UK)
PSE-A1525/5060(JP)
Power Adapter







DS-1005KI
USB Joy-stick
LAS60-57CN-RJ45
Hi-PoE midspan
DS-1100KI
Network Keyboard

*DS-1673ZJ should be used with DS-1661ZJ or DS-1602ZJ.

















 Available Model
DS-2DE5425IW-AE (S5)
