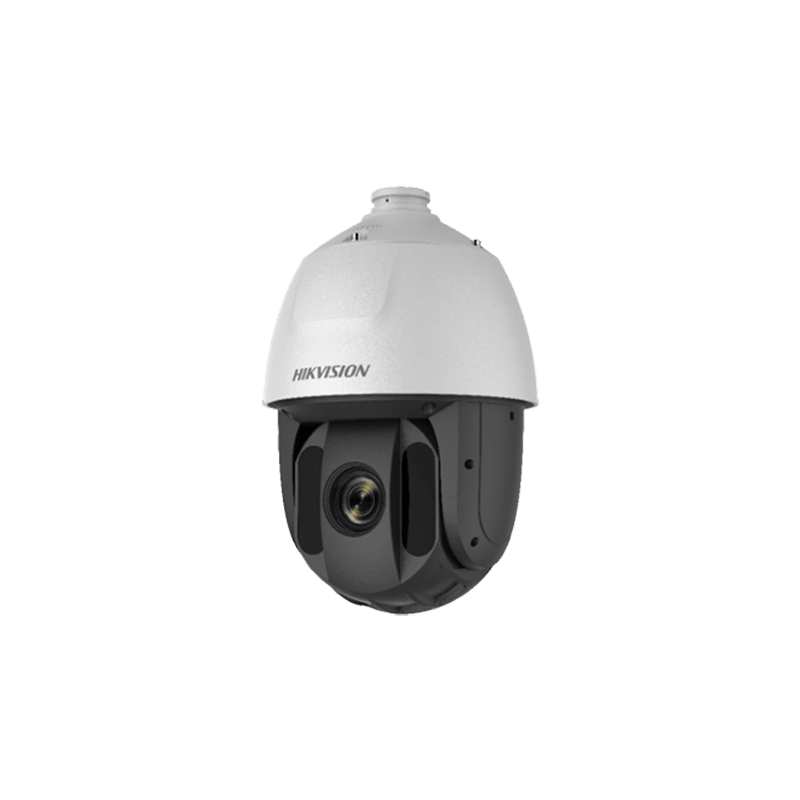

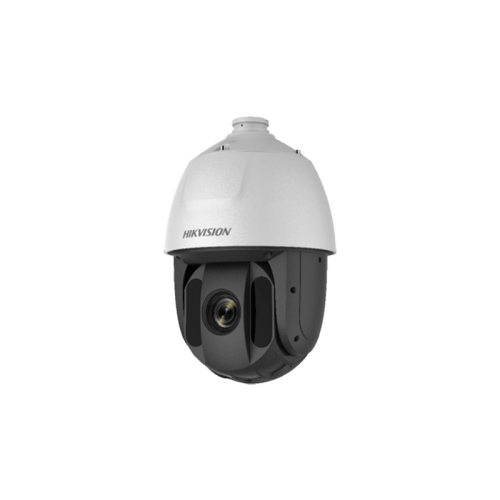

DS-2DE5232IW-AE(S6)

Kamera IP PTZ 2MP z technologią powered-by-DarkFighter, przetwornik 1/2.8" progressive scan CMOS, Min. oświetlenie: Kolor: 0.005Lux @ (F1.6, AGC ON), Cz/B: 0.001Lux @ (F1.6, AGC ON), 0 Lux dla IR, wolna migawka, ICR; Zoom: 16x cyfrowy; 32 optyczny; Ogniskowa: 4.8 mm do 153.6 mm, HFOV 58.6° do 2.4° (wide-tele),VFOV: 33.6° do 1.4° (wide-tele), DFOV: 67.0° do 2.8° (wide-tele); Zasięg IR do 150m; Rozdzielczość: 1920 × 1080, trzy strumienie; H.265+/H.265/H.264+/H.264; Obraz: BLC, HLC, 3D DNR, 120 dB WDR, obszar ekspozycji, obszar ostrości; 24 programowalne maski prywatności; Funkcje Smart (podstawowe zdarzenia, zdarzenia smart); Pamięć masowa: NAS (NFS, SMB/ CIFS), ANR; slot na kartę pamięć do 256GB; 2/1 we/wyj alarmowe; 1/1 we/wyj audio;; Zasilanie: 24 VAC, Max. 24 W (w tym max. 9 W dla IR i max. 1.6 W dla grzałki); PoE (802.3at)Temp.pracy: -30°C do 65°C; Wymiary: Ø 210 mm × 344.7 mm; Waga ok 3kg, IP66...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Produkt zamienny: DS-2DE7A232IW-AEB(T5)

Kod produktu zamiennego: 327000238

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2DE5232IW-AE(S6)
2 MP 32 x Network IR Speed Dome











Hikvision DS-2DE5232IW-AE(S6) 2 MP 32 x Network IR Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With the
32 x optical zoom lens, the camera offers more details over
expansive areas.
This series of cameras can be widely used for wide ranges of
high-definition, such as rivers, roads, railways, airports,
squares, parks, scenic spots, and venues, etc.

 1/2.8" Progressive Scan CMOS
 High quality imaging with 2 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology
 32 x optical zoom and 16 x digital zoom provide close up
views over expansive areas
 WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional
focus
 Expansive night view with up to 150 m IR distance
 24 VAC & PoE (802.3at)
 Efficient H.265+/H.265 compression technology





 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 1600.0 m (5249.3 ft) 634.9 m (2083.1 ft) 320.0 m (1049.9 ft) 160.0 m (524.9 ft)

 Specification
Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Max. Resolution 1920 x 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 32 x optional, 16 x digital
Slow Shutter Yes
Lens
Focus Auto, semi-auto, manual
Aperture Max. F1.6
Zoom Speed Approx. 3.6 s
Focal Length 4.8 mm to 153.6 mm
FOV
Horizontal field of view: 58.6° to 2.4° (wide-tele),
Vertical field of view: 33.6° to 1.4° (wide-tele),
Diagonal field of view: 67.0° to 2.8° (wide-tele)
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 150 m
PTZ
Pan Speed Pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Tilt Speed Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Pan Yes
Park Action
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan
Scheduled Task
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, aux output
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans, record time over 10 minutes for each scan
Power-off Memory Yes
3D Positioning Yes
PTZ Status Display Yes



Preset Freezing Yes
Video
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile/Main profile/High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Main Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps
(PCM)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP
Simultaneous Live View Up to 20 channels
API
Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK,
ISUP
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2,
host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE 10-11, Chrome 57+, Firefox 52+, Safari 12+
Image Parameters Switch Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ＞52 dB
Defog Digital Defog
Image Enhancement BLC, HLC, 3D DNR



Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Alarm 2 inputs, 1 output
Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event
Face detection, line crossing detection, intrusion detection, region entrance detection,
region exiting detection, unattended baggage detection, object removal detection,
audio exception detection
Alarm Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
General
Power
24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE
(802.3at)
Material Metal
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Demist Yes
Dimension Ø 210 mm x 344.7 mm (Ø 8.27" x 13.57")
Weight Approx. 3.0 kg (6.61 lb.)
Approval
EMC
FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN
50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 7);
KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 62368-1)
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014+A11:2017),
BIS (IS 13252(Part 1):2010/ IEC 60950-1: 2005);
LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection
IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage
transient protection

 Available Model
DS-2DE5232IW-AE(S6)



 Dimension




 Accessory
 Included
DS-1602ZJ
Wall mount


 Optional
DS-1682ZJ DS-1604ZJ-pole DS-1663ZJ DS-1673ZJ DS-1604ZJ





DS-1681ZJ-2 DS-1100KI DS-1661ZJ DS-1662ZJ
DS-1604ZJ-BOX-
CORNER




DS-1667ZJ DS-1604ZJ-box
DS-1604ZJ-BOX-
POLE
DS-1660ZJ DS-1619ZJ


DS-1005KI DS-1681ZJ DS-1604ZJ-corner
