DS-2DE5225W-AE(T5)

Dostępność: 51-100
Cena: 3 404,00 zł 3404.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 327000463

Opis

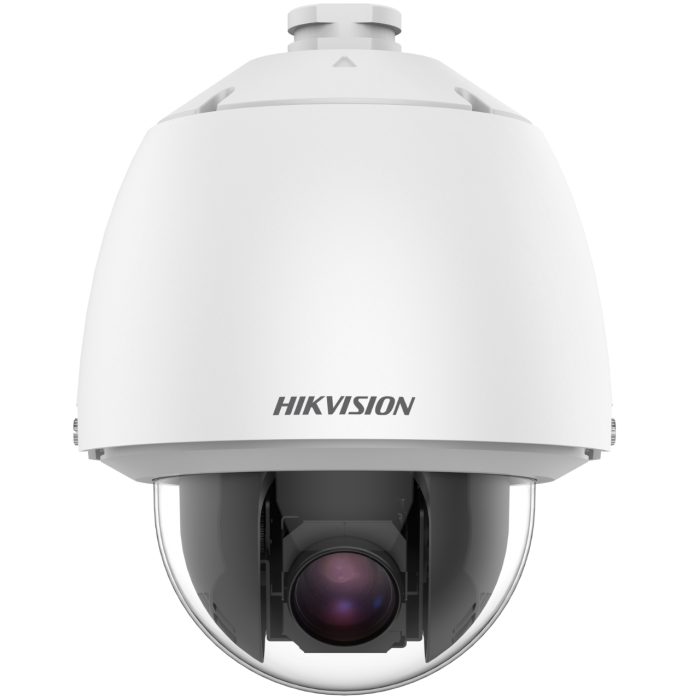

Kamera IP szybkoobrotowa PTZ, posiada przetwornik obrazu 1/2.8" progressive scan CMOS, generując obraz w rozdzielczości 1920 × 1080@60fps; Min. Oświetlenie : Kolor: 0.005 Lux @(F1.6, AGC ON) Cz/B: 0.001Lux @(F1.6, AGC ON), ICR, cyfrowy zoom 16x, 24 programowalne maski prywatności, 120 dB WDR; Ogniskowa: 4.8 mm do 120 mm, 25× optyczny zoom; Kąt widzenia: HFOV 57.6° do 2.5° (Wide-Tele) VFOV: 34.4° do 1.4° (Wide-Tele) DFOV: 64.5° do 2.9° (Wide-Tele); zakres apertury: F1.6 do F3.5; Kompresja obrazu: główny strumień: H.265+/H.265/H.264+/H.264, Dodatkowy strumień: H.265/H.264/MJPEG, Trzeci strumień: H.265/H.264/MJPEG; Technologia Acusense. Funkcje SMART: podstawowe zdarzenia, zdarzenia typu SMART, nagrywanie typu SMART, ROI, Auto-tracking; Trzy strumienie; Poprawa obrazu: HLC, BLC, defog, 3D DNR, EIS, obszar ekspozycji, obszar ostrości; Pamięć: wbudowany slot na kartę Micro SD/SDHC/SDXC, do 256 GB; NAS (NFS, SMB/ CIFS), ANR; Jednoczesny podgląd na żywo do 20 kanałów; Interfejs: 1/1 wejście/wyjście audio, 2/1 wejście/wyjście alarmowe, 1 RJ45 10 M/100 M Ethernet, PoE (802.3 at, class4); Zasilanie: 24 VAC, 1.5 A, 50/60 Hz i PoE (802.3 at), 42.5 do 57 VDC, 0.6 A, class4 Max.: 22 W; Temperatura pracy: -30°C do 65°C; IP66, IK10, Materiał: ADC 12, PC+ABS, PC/PMMA; Wymiary: Φ 220 mm × 280 mm ; Waga w przybliżeniu: 3kg...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2DE5225W-AE(S6)
2 MP 25x Network Speed Dome











Hikvision DS-2DE5225W-AE(S6) 2 MP 25 x Network Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With the
25 x optical zoom lens, the camera offers more details over
expansive areas.
This series of cameras can be widely used for wide ranges of
high-definition, such as rivers, roads, railways, airports,
squares, parks, scenic spots, and venues, etc.

 1/2.8" Progressive Scan CMOS
 High quality imaging with 2 MP resolution
 Excellent low-light performance with
powered-by-DarkFighter technology
 25x optical zoom and 16x digital zoom provide close up
views over expansive areas
 WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional
focus
 24 VAC & PoE (802.3at)
 Efficient H.265+/H.265 compression technology





 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 1600.0 m (5249.3 ft) 634.9 m (2083.1 ft) 320.0 m (1049.9 ft) 160.0 m (524.9 ft)

 Specification
Camera Module
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON)
Shutter Speed 1 s to 1/30,000 s
Slow Shutter Yes
Day & Night IR cut filter
Zoom 25x optional, 16x digital
Max. Resolution 1920 x 1080
Lens
Focus Auto, semi-auto, manual
Focal Length 4.8 mm to 120 mm
Zoom Speed Approx. 3.6 s
FOV
Horizontal field of view: 57.6° to 2.5° (wide-tele),
Vertical field of view: 34.4° to 1.4° (wide-tele),
Diagonal field of view: 64.5° to 2.9° (wide-tele)
Aperture Max. F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -5° to 90° (auto flip)
Pan Speed Pan speed: configurable from 0.1° to 250°/s; preset speed: 300°/s
Tilt Speed Tilt speed: configurable from 0.1° to 150°/s, preset speed 200°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory Yes
Park Action
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan
3D Positioning Yes
PTZ Status Display Yes
Preset Freezing Yes
Scheduled Task
Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, aux output



Video
Main Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline profile/Main profile/High profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate
64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps
(PCM)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering yes
Network
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP
API
Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK,
ISUP
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2,
host authentication (MAC address)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE 10-11, Chrome 57+, Firefox 52+, Safari 12+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) 120 dB
Defog Digital Defog
Regional Exposure Yes
Regional Focus Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser
Image Parameters Switch Yes



Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
SNR >52 dB
Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Alarm 2 inputs, 1 output
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Event
Smart Tracking Manual tracking, auto-tracking
Basic Event Motion detection, video tampering alarm, exception, alarm input and output
Smart Event
Face detection, line crossing detection, intrusion detection, region entrance detection,
region exiting detection, unattended baggage detection, object removal detection,
audio exception detection
Alarm Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
General
Operating Condition -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
Power 24 VAC, Max. 20 W; PoE (802.3at)
Material Metal
Dimensions Ø 220 mm x 280 mm (Ø 8.66" x 11.02")
Weight Approx. 3.0 kg (6.61 lb.)
Approval
Protection
IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage
transient protection


 Available Model
DS-2DE5225W-AE(S6)



 Dimension





 Accessory
 Included
DS-1602ZJ





 Optional
DS-1604ZJ-pole
DS-1604ZJ-BOX-
POLE
DS-1663ZJ DS-1619ZJ DS-1660ZJ


DS-1604ZJ-box DS-1662ZJ DS-1100KI DS-1661ZJ DS-1005KI


DS-1673ZJ DS-1682ZJ
DS-1604ZJ-BOX-
CORNER
DS-1604ZJ-corner DS-1604ZJ


DS-1681ZJ DS-1667ZJ


*DS-1673ZJ should be used with DS-1661ZJ or DS-1602ZJ.

Dane techniczne

Zoom optyczny ± 25x
Wejścia alarmowe 2
Wyjścia alarmowe 1
Wyjście audio 1
Wejście audio 1
Rozmiar przetwornika 1/2.8
Zasilanie PoE PoE+ 802.3at 30W
Zasilanie AC 24VAC
Szczelność IP66
Odporność mechaniczna IK10
Rozdzielczość wizyjna 2MPIX
Typ kamery PTZ, Obrotowa
Zakres dynamiki (WDR) WDR 120dB
Typ obiektywu Zmiennoogniskowy motozoom
Zmienna ogniskowa (od) ± 4.8 mm
Zmienna ogniskowa (do) ± 100 mm
Wbudowany głośnik Nie
Slot na karty Tak
Wbudowany mikrofon Nie
