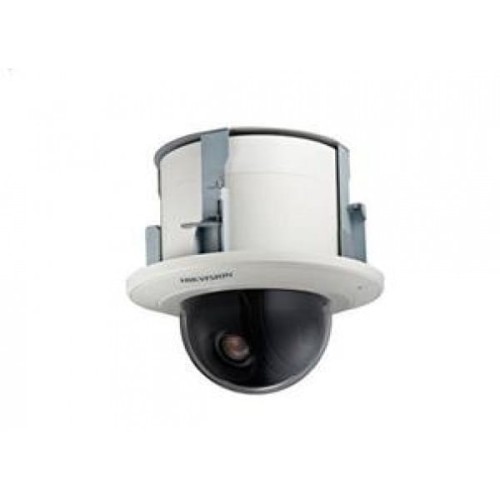

DS-2DE5184-AE3

Kamera PTZ IP Hikvision, rozdzielczość 2 MP - 1920×1080@30kl/s, przetwornik: 1/2.8" Progressive Scan CMOS, czułość: 0.05Lux @ (F1.6, wł. AGC), CZ/B: 0.01Lux @ (F1.6, wł. AGC), wbudowany slot kart pamięci (do 64 GB), obiektyw: 4.7-94.0mm, zoom optyczny: 20x, prędkość obrotu w poziomie - sterowanie ręczne: 0.1° -250°/s, preset: 300°/s, prędkość obrotu w pionie - sterowanie ręczne: 0.1° -150°/s, preset: 200°/s, dwa strumienie, 3D DNR, DWDR, IK09, kompresja: H.264/MJPEG, detekcja intruza, detekcja przekroczenia linii, temperatura pracy -10°C~50°C, zasilanie 24VAC/POE+....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Hikvision USA Inc., 908 Canada Court, City of Industry, CA 91748, USA • Hikvision Canada, 4485 Dobrin, St-Laurent, Quebec, Canada, H4R 2L8
Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com
© 2015-2016 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. 042516NA
DS-2DE5184-AE Series
2 MP Network PTZ Dome Camera
DS-2DE5184-AE Series
Camera
Image ensor1/2.8" progressive scan CMOS
a mage esolution
Minimum lluminationColor: 0.05 lux @ 1.6, AGC on; B/W: 0.01 lux @ 1.6, AGC on
White alanceAuto/manual/ATW/indoor/outdoor/daylight lamp/sodium lamp
AGC Auto/manual
S/N atio d
3D DNR, , digital
Shutter peed1 to 1/10,000 s
DayNight IR cut ilter
Digital oom16
Privacy asking2 privacy masks programmable
Focus odeAuto/semiautomatic/manual
Lens
Focal ength4.7 to 94 mm, 20x
Zoom peedApproximately 3 s (optical ide to tele)
Angle of iew58.3 to 3.2 ( ide to tele)
Min. orking istance10 mm to 1000 mm ( ide to tele)
Aperture ange1.6 to 3.5
Pan and Tilt
Pan/Tilt rangePan: 360° endless; tilt: 5° to 90° (auto lip)
Pan/Tilt peed
Pan manual speed: 0.1° to 250°/s, pan preset speed: 300°/s Tilt manual speed: 0.1° to 150°/s, tilt
preset speed: 200°/s
Proportional oomRotation speed can be adjusted automatically according to zoom multiples
Number of Presets256
Park ctionsPattern/pan scan/tilt scan/ rame scan/panorama scan/random scan
Patrols 8 patrols, up to 32 presets per patrol
Power-ff emorySupported
PTZ Position isplaySupported
Preset FreezingSupported
Scheduled Tasks
Preset/patrol/pattern/pan scan/tilt scan/random scan/ rame scan/panorama scan/dome
reboot/self-test action/alarm output
Input/Output
Audio Inpututput
micline in, to p-p output impedance , output, line le el, impedance larm nputOutput
Network
Ethernet 10Base-T/100Base-TX, RJ-45 connector
Frame Rate30 fps (1920 x 1080), 30 fps (1280 x 960) , 30 fps (1280 x 720)
Image CompressionH.264/MJPEG
Audio CompressionG.711u/G.711a/G.726/MP2L2
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
Simultaneous Live ViewsUp to users
Streams Dual streams
On-Board StorageMicroSD slot, up to 128 GB
User/Host LevelsUp to 32 users, 3 levels: administrator, operator, user
Security Measuresser autentication and P, ost autentication address, P address iltering
Integration
Application ProgrammingOpen-ended API, supports O F, PSIA, ISAPI, and CGI
Web BrowserIE 7+, Chrome 18+, Firefox 5.0+, Safari 5.02+
General
Power
24 VAC, PoE+ (802.3at), maximum 22 W (outdoor)
24 VAC, PoE (802.3af), maximum 14 W (indoor)
Working Temperature
-10° C to 50° C (14° F to 122° F) (indoor)
-30° C to 65° C (-22° F to 149° F) (outdoor)
Humidity or less
Protection Level
IP66 (outdoor dome), TVS 4,000 V lightning protection, surge protection and
voltage transient protection, IK10
Dimensions
Φ220 mm x 305 mm ( Φ8.66" x 12.02") (outdoor)
Φ183.4 mm x 243 mm ( Φ7.22 x 9.56) (ceiling)
Φ245 mm x 236 mm ( Φ9.65 x 9.29) (in-ceiling)
Weight (approximately)5 kg (11.02 Ibs )
Key Features
egapixel ig esolution
p Full esolution
ptical oom, igital oom
True ayigt, , igital
ntelligent Positioning
IP66 and IK10 Protection (Outdoor)
Dimensions

NOTE: Indoor models support ceiling and in-ceiling mount.
Order Models
(includes PoE injector)
DS-2DE5184-AE: PoE+ and 24 VAC, outdoor
DS-2DE5184-AE3: PoE+ and 24 VAC, indoor

ICR
Intelligent
Positioning
BLC
CMOS
1/2.8”
WDR
DIGITAL
MASK
mage n ancements
input to relay output, alarm response actions con igurale
larm Triggers
ntrusion detection, line crossing detection motion detection, audio e ception detection, dynamic
analysis, tampering alarm, net ork disconnect, P address con lict, storage e ception
larm ctions Preset, patrol, pattern, recording, relay output, upload center, upload FTP, e-mail linkage

Smart Feature Set
Smart Detection Line crossing, intrusion detection
Accessories
WMP
ount on
P
Pn nt ount ot
P
Pn nt ount on

P
ount ot

PP
Po ount
P
on ount
JBP
Junction Box
