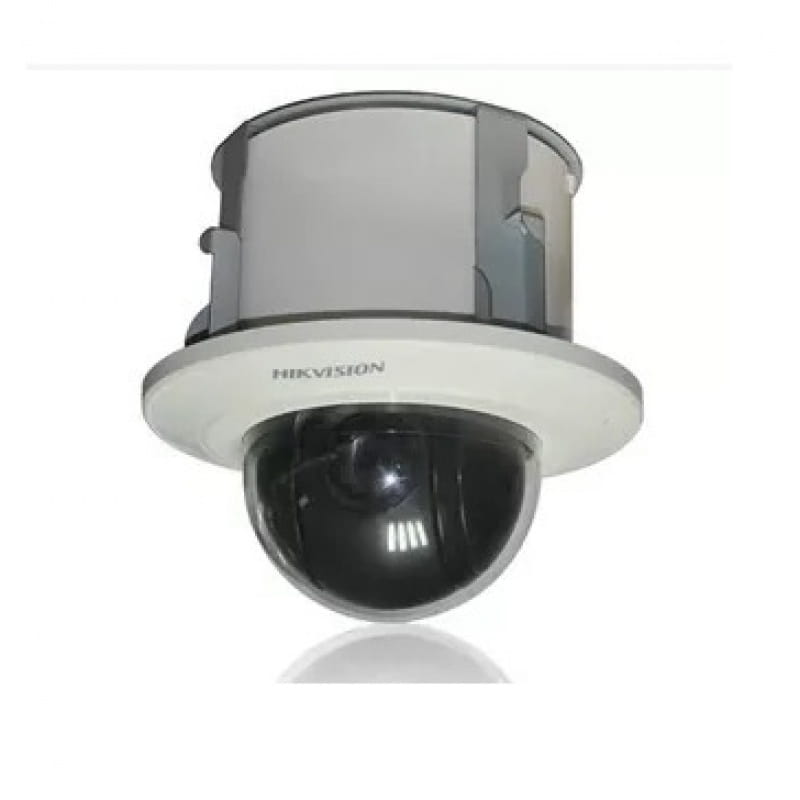

DS-2DE5130W-AE3

Kamera 1.3MP, 1/3" CMOS, 3D DNR, ICR, Color: 0.05lux/F1.6, B/W:0.01lux/F1.6, Optical Zoom:30x, Focus:4.3-129.0mm, Digital Zoom:16X, 1280*960:30fps, HD720p:30fps, Pan Speed: 0.1° -250°/s, Tilt Speed: 0.1° -150°/s...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
* 1/3" Progressive Scan CMOS
* 1280 x 960@60fps
* 30X Optical Zoom
* DWDR
* 3D intelligent positioning function
* Support cloud P2P
* PoE(802.3at) / 24VAC power supply


DS-2DE5130W-AE(3)
1.3MP 30X Network PTZ Dome Camera

Hikvision DS-2DE5130W-AE(3) PTZ Dome Cameras are
able to capture high quality images in low light
environment with its black anti-reflective glass.
Embedded with 1/3’’ progressive scan CMOS chip makes
DWDR and 1280 x 960 real-time resolution possible.
With the 30X optical zoom lens, the camera offers more
details over expansive areas.
Hikvision DS-2DE5130W-AE(3) PTZ Dome Cameras also
features a wide range of functions, including intrusion
detection, line crossing detection and audio exception,
benefitting users with great improvement on security
efficiency, more importantly, with key events / objects
being recorded for further forensic needs.






Basic function
 High performance CMOS, up to 1280 x 960 resolution.
 ±0.1° Preset Accuracy.
 ONVIF(Open Network Video Interface Forum), CGI(Common Gateway Interface), PSIA(Physical Security
Interoperability Alliance), to ensure greater interoperability between different platforms and compatibility.
 3D intelligent positioning function.
 3D DNR.
 IP66, IK10 standard (Only for –AE outdoor dome).
 2 alarm inputs and 1 alarm outputs.
 1 audio input and 1 audio output.
Smart Function
 Smart image processing: support defog, HLC/BLC.
 Smart codec: low bit rate, ROI.
 Smart detection: support intrusion detection, line crossing detection, audio exception detection.
Camera function
 Auto iris, auto focus, auto white balance, backlight compensation and auto day & night switch.
 Min. Illumination: Color：0.05Lux @ (F1.6, AGC ON), B/W：0.01Lux @ (F1.6, AGC ON).
 Support 8 privacy masks.
PTZ functions
 360° endless pan range and -5°-90° tilt range
 300°/s Pan Preset Speed and 200°/s Tilt Preset Speed
 0.1°-250°/s Manual Pan Speed and 0.1°-150°/s Manual Tilt Speed
 300 presets programmable; preset image freezing capability
 8 patrols, up to 32 presets per patrol Park action.
 Power-off memory: restore PTZ & Lens status after reboot.
Network function
 H.264/MJPEG video compression.
 H.264 encoding with Baseline/Main/High profile.
 ROI(Region of Interest) encoding.
 Built-in Web server.
 Onboard storage, up to 128GB.
 Support up to 8 NAS storage; Edge recording (transmit the videos from SD card to the NAS after network resumed).
 HTTPS encryption and IEEE 802.1X port-based network access control.
 Support three streams.
 Multiple network protocols supported: IPv4/Ipv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS,
NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE.


Function Description



Specifications
Model DS-2DE5130W-AE(3)
Camera Module
Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux,
Max. Image
Resolution
1280 x 960
Focal Length 4.3-129.0mm, 30x
Digital Zoom 16X
Zoom Speed Approx.3s(Optical Wide~Tele)
Angle of View 57.4-2.8 degree (Wide~Tele)
Min. Working
Distance
10~1,500mm(Wide~Tele)
Aperture Range F1.6-F5.0
Focus Mode Auto / Semiautomatic / Manual
DWDR Support
Shutter Time 1-1/10,000s
AGC Auto / Manual
White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
Privacy Mask 8 privacy masks programmable
Enhancement 3D DNR, BLC
Pan and Tilt
Range Pan:360° endless; Tilt: -5°~90°(Auto Flip)
Speed
Pan Manual Speed: 0.1°~250°/s, Pan Preset Speed: 300°/s
Tilt Manual Speed: 0.1°~150°/s, Tilt Preset Speed: 200°/s
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Scheduled Task
Auto scan / Frame scan / Random scan / Patrol / Pattern / Preset / Panorama scan / Tilt scan /
Dome reboot / Dome adjust / Aux output
Features
Detection Intrusion detection, Line crossing detection, Audio exception detection, Motion detection
ROI encoding Support
Alarm
Alarm I/O 2/1
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Alarm Action Preset, Patrol, Pattern, Recording, Relay output, Upload center, Upload FTP, Email linkage








Input/Output
Audio Input 1 Mic in/Line in interface, line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 Audio output interface, line level, impedance: 600Ω
Network
Ethernet 10Base-T / 100Base-TX, RJ45 connector
Stream Support three streams
Main Stream
50Hz:25fps (1280x960,1280x720), 50fps (1280x960,1280x720) ;
60Hz: 30fps(1280x960,1280x720), 60fps (1280x960,1280x720)
Sub Stream 50Hz:25fps(704x576,640x480,352x288);60Hz:30fps(704x480,640x480,352x240)
Three Stream
50Hz:25fps (1280x960,1280x720,704x576,640x480,352x288);
60Hz: 30fps(1280x960,1280x720,704x480,640x480,352x240)
Image Compression H.264/MJPEG
Audio Compression G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live
View
Up to 20 users
Mini SD Memory Card Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures User authentication (ID and PW); Host authentication (MAC address); IP address filtering
System Integration
Application
programming
Open-ended API, support ONVIF, PSIA and CG , Support cloud P2P
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Power
AC 24V and PoE (802.3at, class4)
Max.: 18W
Working Temperature
-AE: -30°C to 65°C (-22°F to 149°F)
-AE3: -10°C to 50°C (14°F to 122°F)
Humidity 90% or less
Protection Level
IP66, IK10 Standard (–AE outdoor camera);
TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Certification FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950-1
Dimensions
Φ220x305mm(Outdoor)
Φ183.4x243mm(Indoor)
Φ245x236mm (In-ceiling)
Weight (approx.) 3kg (6.61lbs)
Mount Option
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;
Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box;







Order Models
* DS-2DE5130W-AE, AC24V, PoE (802.3at, class4), Outdoor, IP66, IK10
* DS-2DE5130W-AE3, AC24V, PoE (802.3at, class4), Indoor
NOTE: indoor models support ceiling or in-ceiling mount.










Dimensions


Accessories





DS-1602ZJ
Wall Mount

DS-1602ZJ-Conner
Conner Mount

DS-1602ZJ-Pole
Pole Mount

DS-1602ZJ-Box
Box Mount
