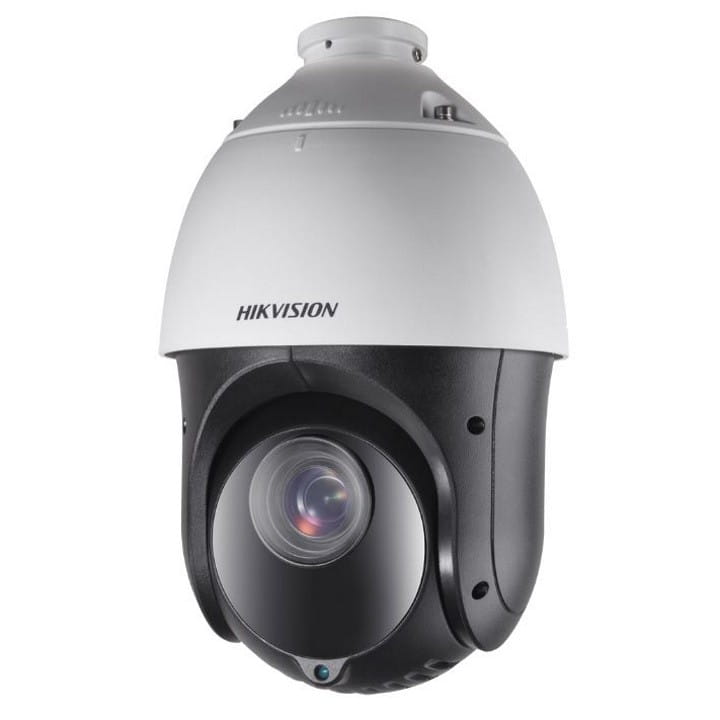

DS-2DE4225IW-DE(T5)

Kamera PTZ IP Hikvision, rozdzielczość 2MP (max 1920x1080;30kl/s), przetwornik: 1/2.8” Progressive Scan CMOS, czułość: tryb kolorowy: 0.005 Lux (F1.6, wł. AGC), CZ/B: 0.001 Lux (F1.6, wł. AGC), 0 Lux IR ON, zasięg IR do 100m, dzień/noc ICR, zoom optyczny 25x (ogniskowa 4.8-120mm), zoom cyfrowy 16x, kąt widzenia od 57.6° do 2.5°, apertura: F1.6-F3.5. Funkcje: WDR: 120dB, 3D DNR, HLC/BLC, EIS, Defog, 24 programowalne maski prywatności. Trzy strumienie, kompresja: H.265+/H.265/H.264+/H.264/MJPEG. Technologia Acusense. Podstawowe zdarzenia: detekcja ruchu, sabotaż wideo, wyjątki. Zdarzenia SMART: detekcja twarzy, detekcja intruza, detekcja przekroczenia linii, detekcja wejścia w obszar, detekcja wyjścia z obszaru, detekcja usunięcia przedmiotu, detekcja pozostawienia bagażu, detekcja wyjątku audio. ROI: 4 strefy. Wbudowany slot kart pamięci (do 256 GB). Prędkość obrotu w poziomie: 0.1° - 80°/s, prędkość obrotu w pionie: 0.1°- 80°/s, zakres obrotu: 360° bez punktu krańcowego, zakres wychylenia pionowego: od -15° do 90° (z funkcją AutoFlip), Ilość presetów: 300, ilość patroli: 8 (do 32 presetów na patrol), trasa (Pattern). Wejście/wyjście audio: 1/1, kompresja audio G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM. Temperatura pracy: -30°C~65°C. Klasa szczelności IP66. Wymiary: Φ164.5×290mm, waga około 2kg. Zasilanie 12VDC/PoE+....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS -2DE4225IW-DE(S6)
2 MP 25x Network IR Speed Dome









Hikvision DS-2DE4225IW-DE(S6) 2MP 25x Network IR Speed
Dome adopts 1/2.8" progressive scan CMOS chip. With the
25x optical zoom lens, the camera offers more details over
expansive areas. This series of cameras can be widely used
for wide ranges of high-definition, such as the rivers, roads,
railways, airports, squares, parks, scenic spots, and venues,
etc.

◼ 1/2.8" progressive scan CMOS
◼ High quality imaging with 2 MP resolution
◼ Excellent low-light performance with
powered-by-DarkFighter technology
◼ 25x optical zoom and 16x digital zoom provide close up
views over expansive areas
◼ WDR, HLC, BLC, 3D DNR, defog, EIS, regional exposure,
regional focus
◼ Expansive night view with up to 100 m IR distance
◼ Support H.265+/H.265 video compression







◼ DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 1600.0 m (5249.3 ft) 634.9 m (2083.1 ft) 320.0 m (1049.9 ft) 160.0 m (524.9 ft)

◼ Specification
Camera Module
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005Lux @ (F1.6, AGC ON), B/W: 0.001Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30,000 s
Slow Shutter yes
Focus semi -auto, manual, auto
Day & Night ICR
Day/Night Switch day, night, auto, scheduled -switch
BLC yes
WDR 120 dB WDR
HLC yes
3D DNR yes
Defog yes
EIS yes
Regional Exposure yes
Regional Focus yes
Image Settings saturation, brightness, contrast, sharpness
Image Parameters Switch yes
White Balance auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Digital Zoom 16 x
Optical Zoom 25 x
Privacy Mask up to 24 masks,mask color configurable
SNR > 52dB
Lens
Focal Length 4.8 mm to 120 mm, 25x Optical
Zoom Speed approx. 3.6 s
FOV
Horizontal field of view: 57.6° to 2.5° (wide -tele),
Vertical field of view: 34.4° to 1.4° (wide-tele),
Diagonal field of view: 64.5° to 2.9° (wide-tele)
Aperture F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)



Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory yes
Park Action
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan
3D Positioning yes
PTZ Status Display yes
Preset Freezing yes
Scheduled Task
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution 1920 x 1080
Stream Type main stream,sub -stream,third stream
Main Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50 Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60 Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type baseline profile, main profile, high profile
H.265 Type main profile
H.264+ yes
H.265+ yes
SVC yes
ROI
fixed region , main stream, sub-stream and third stream respectively support eight
fixed areas
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
Audio Bit rate
MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128
kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling Rate MP2L2: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering yes
Smart Features
Basic Event motion detection, alarm input, alarm output, video tampering alarm, exception
Smart Event
face detection, intrusion detection, line crossing detection, region entrance detection,
region exiting detection, unattended baggage detection, object removal detection,
audio exception detection
Smart Record ANR, Dual-VCA



Alarm Linkage
memory card video recording, alarm output, sending email, notify surveillance center,
upload to FTP, NAS video recording
Network
Network Storage NAS (NFS, SMB/ CIFS)
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP
API
Open -ended API, ISAPI, Hikvision SDK, Third-party management platform, Hik-Connect,
ISUP, Open Network Video Interface, CGI
Simultaneous Live View 20
User/Host 32
Security Measures
Authenticated username and password, MAC address binding, HTTPS encryption,
802.1X authenticated access, IP address filter
Client iVMS -4200, Hik-Connect
Web Browser IE10 -11, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface RJ45, self -adaptive 10M/100M Ethernet port
On -board Storage support microSD/microSDHC/microSDXC cards,up to 256 GB
Alarm Input 1 alarm input
Alarm Output 1 alarm output
Audio Input 1 audio input, 2.0 to 2.4Vp -p, 1k Ohm±10%
Audio Output 1 audio output, line level, impedance: 600 Ω
Supplement Light
IR Distance 100 m
General
Power 12 VDC, PoE (802.3at)
Power Consumption and Current Max. 18 W, including max. 1.6 W for heater and 9 W for IR
Operating Conditions -30°C to 65°C (-22°F to 149°F), humidity lower than 90%RH
Reset yes
Demist yes
Material ADC12
Dimensions Ø 164.5 mm x 290 mm (Ø 6.48" x 11.42")
Weight Approx. 2 kg (4.41 lb.)
Approval
Protection
IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient
Protection



◼ Available Model
DS -2DE4225IW-DE (S6)



◼ Dimension



◼ Accessory
◼ Included
DS -1618ZJ
ASW0081 -122000
2W


◼ Optional
DS -1673ZJ DS -1602ZJ DS -1604ZJ-corner DS -1660ZJ DS -1604ZJ-pole




DS -1100KI(B) DS -1663ZJ
DS -1604ZJ-BOX-
CORNER
DS -1604ZJ-box DS -1661ZJ

DS -1005KI DS -1681ZJ DS -1662ZJ DS -1671ZJ-SDM9 DS -1682ZJ

DS -1667ZJ DS -1604ZJ DS -1619ZJ
DS -1604ZJ-BOX-
POLE

*DS-1673ZJ should be used with DS-1661ZJ or DS-1602ZJ.
