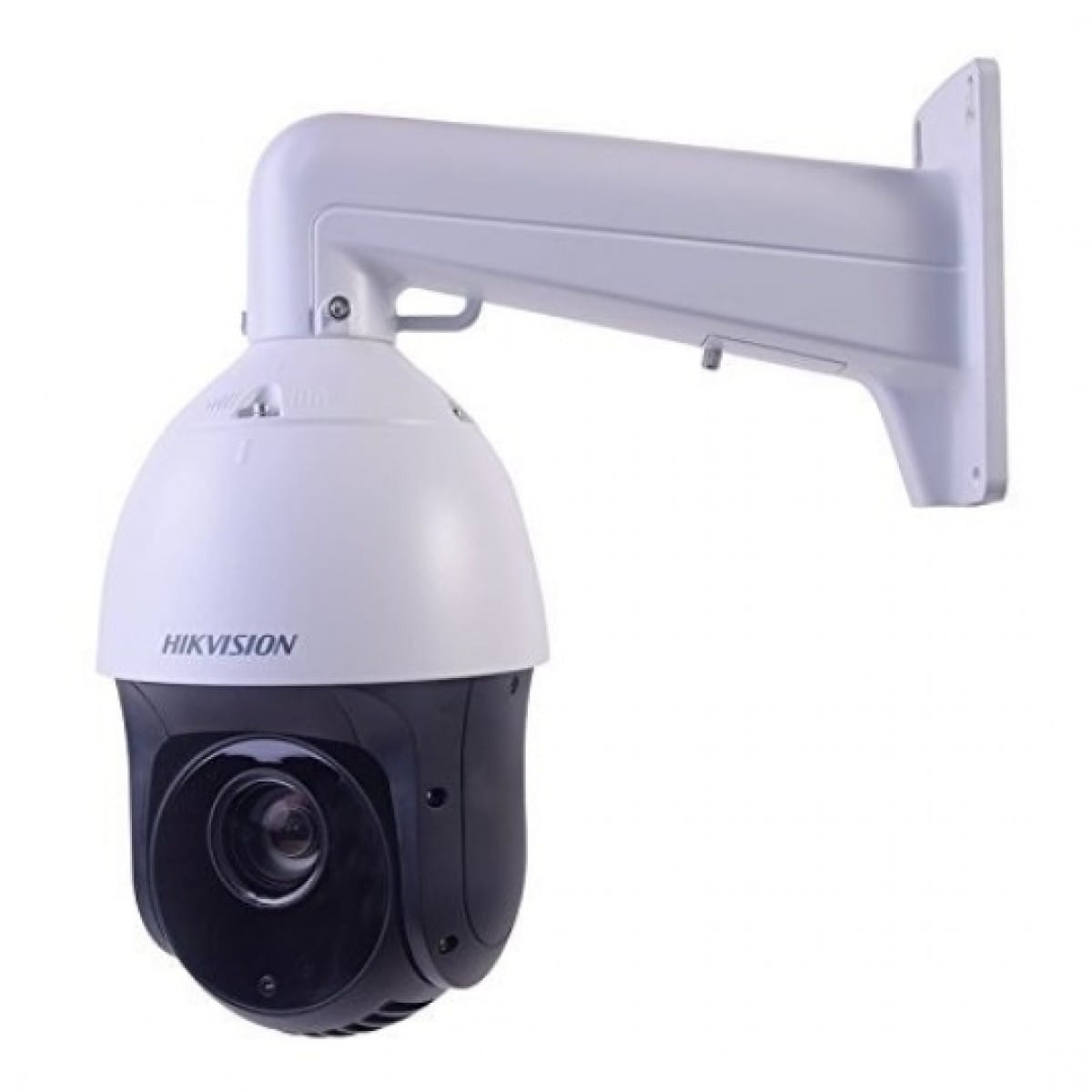

DS-2DE4220IW-DE

Kamera PTZ IP Hikvision, rozdzielczość 2MP (max. 1920x1080@30kl/s), przetwornik: 1/2.8" Progressive Scan CMOS, czułość: tryb kolorowy: 0.05 Lux (F1.6, wł. AGC), CZ/B: 0.01 Lux (F1.6, wł. AGC), 0 Lux IR ON, zasięg IR do 100m, dzień/noc ICR, zoom optyczny 20x (ogniskowa 4.7-94mm), zoom cyfrowy 16x, kąt widzenia od 58.3st. (zoom blisko) do 3.2st. (zoom daleki), światłosiła obiektywu: F1.6-F3.5. Funkcje: DWDR, 3D DNR, HLC/BLC, EIS, Defog, 8 strefy prywatności, harmonogram. Trzy strumienie, kompresja: H.264/MJPEG, detekcja intruza, detekcja przekroczenia linii, detekcja wyjątku audio, ROI: 4 strefy. Wbudowany slot kart pamięci (do 128 GB). Prędkość obrotu w poziomie: 0.1st. - 80st./s, prędkość obrotu w pionie: 0.1st.- 80st./s, zakres obrotu: 360st. bez punktu krańcowego, zakres wychylenia pionowego: od -15st. do 90st. (z funkcją AutoFlip), Ilość presetów: 300, Ilość patroli: 8 (do 32 presetów na patrol), Pattern. Wejście/wyjście audio: 1/1, kompresja audio G.711/G.722/G.726/MP2L2. Temperatura pracy: -30st.C~65st.C. Klasa szczelności IP66. Wymiary: śr.164.5x295mm, waga około 2kg. Zasilanie 12VDC/PoE+....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS -2DE4220IW-DE
2MP 20X Network IR PTZ Dome Camera
Key Features
* 1/2.8" Progressive Scan CMOS
* 1920 x 1080
* 20X Optical Zoom
* DWDR
* 3D intelligent positioning function
* Support cloud P2P
* Up to 100m IR distance
* 12VDC & POE(802.3at)
Hikvision DS-2DE4220IW-DE PTZ Dome Cameras are
able to capture high quality images in low light
environment with its black anti-reflective glass. The
black anti-reflective glass increase the luminousness
which can reach up to 100m IR distance.
Embedded with 1/2.8’’ progressive scan CMOS chip
makes DWDR and 2MP real-time resolution possible.
With the 20X optical zoom Day/Night lens, the camera
offers more details over expansive areas.
Hikvision DS-2DE4220IW-DE PTZ Dome Cameras also
features a wide range of functions, including intrusion
detection, line crossing detection benefitting users
with great improvement on security efficiency, more
importantly, with key events / objects being recorded
for further forensic needs.



Function Description
Basic function
 High performance sensor, up to 1920 x 1080 resolution
 ±0.1° Preset Accuracy
 ONVIF(Open Network Video Interface Forum), CGI(Common Gateway Interface), PSIA(Physical Security
Interoperability Alliance), to ensure greater interoperability between different platforms and compatibility
 3D intelligent positioning function
 Power -off memory function: restore PTZ & Lens status after reboot
 IP66 standard
 Support cloud P2P
Functions
 Detections: intrusion detection, line crossing detection, audio exception, motion detection
 Recording: edge recording, support smart search in smart NVR
 Support low bit rate, ROI
Camera function
 Auto iris, auto focus, auto white balance, backlight compensation and auto day & night switch
 Min. Illumination: 0.05Lux@(F1.6,AGC ON)(Color), 0.01Lux@(F1.6,AGC ON)(B/W), 0 Lux with IR
 Support 8 privacy masks
PTZ functions
 360° endless pan range and -15°-90° tilt range
 80°/s Pan Preset Speed and 80°/s Tilt Preset Speed
 0.1° -80°/s Manual Pan Speed and 0.1°-80°/s Manual Tilt Speed
 300 presets programmable;
 8 patrols, up to 32 presets per patrol
Network function
 H.264/ MJPEG video compression and the latest processing chip and platform
 Built -in Web server
 Micro SD card local storage, up to 128GB
 Support up to 8 NAS storage; Transmit the videos from SD card to the NAS after network resumed
 HTTPS encryption and IEEE 802.1x port -based network access control
 Support three streams; H.264/MJPEG video compression; Basic and advanced video configuration; Real time video
at 1080P or 720P
 Multiple network protocols supported: IPv4/IPv6, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP,
UPnP, SNMP, FTP, 802.1x, QoS, HTTPS
 1 audio input and 1 audio output.
IR function
 0 Lux minimum illumination
 Up to 100m IR distance
 IR light MTBF reaching up to 30,000 hours
 Smart IR mode





Specifications
Model DS -2DE4220IW-DE
Camera Module
Image Sensor 1/2.8’’ Progressive Scan CMOS
Min. Illumination F1.6, AGC On: Color: 0.05 lux, B/W : 0.01 lux, 0 lux with IR
Max. Image
Resolution
1920 x 1080
Focal Length 4.7 -94.0mm, 20x
Digital Zoom 16X
Zoom Speed Approx.3s(Optical Wide~Tele)
Angle of View 58.3 -3.2 degree (Wide~Tele)
Min. Working
Distance
10~1,000mm(Wide~Tele)
Aperture Range F1.6~F3.5
Focus Mode Auto / Semiautomatic / Manual
DWDR Support
Shutter Time 1-1/10,000s
AGC Auto / Manual
White Balance Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Day & Night IR Cut Filter
Privacy Mask 8 privacy masks programmable
Enhancement 3D DNR, Defog, HLC/BLC, EIS
Pan and Tilt
Range Pan:360° endless; Tilt: -15°~90°(Auto Flip)
Speed
Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s
Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s
Number of Preset 300
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 pattern scans, record time over 10 minutes for each scan
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
Scheduled Task
Auto scan / Frame scan / Random scan / Patrol / Pattern / Preset / Panorama scan / Tilt scan /
Dome reboot / Dome adjust
Features
Detection Intrusion detection, Line crossing detection, Motion detection
ROI encoding Support 4 areas with adjustable levels
Infrared
IR Distance Up to 100m
IR Intensity Automatically adjusted, depending on the zoom ratio
Network
Ethernet 10Base -T / 100Base-TX, RJ45 connector
Stream Support three Stream s







Main Stream
50Hz:25fps (1920x1080,1280x960,1280x720), 50fps (1280x960,1280x720) ;
60Hz: 30fps(1920x1080,1280x960,1280x720), 60fps (1280x960,1280x720)
Sub Stream 50Hz:25fps(704x576,640x480,352x288);60Hz:30fps(704x480,640x480,352x240)
Three Stream
50Hz:25fps (1920x1080,1280x960,1280x720,704x576,640x480,352x288);
60Hz: 30fps(1920x1080,1280x960,1280x720,704x480,640x480,352x240)
Image Compression H.264/MJPEG
Audio Input 1 audio input (Mic/Line in), 2 -2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output 1 output, Line level, impedance: 600Ω
Audio Compression G.711/G.722/G.726/MP2L2
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP,
TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Simultaneous Live
View
Up to 20 users
Mini SD Memory
Card
Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures User authentication (ID and PW); Host authentication (MAC address); IP address filtering
System Integration
Application
programming
Open -ended API, support ONVIF, PSIA and CG , Support cloud P2P
Web Browser IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
Power 12 VDC &POE(802.3at, class4), Max.20W
Working Temperature -30°C ~ 65°C (-22°F ~ 149°F)
Humidity 90% or less
Protection Level IP66, TVS 4,000V lightning protection, surge protection and voltage transient protection
Certification FCC, CE, UL, RoHS, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC /EN60950 -1
Dimensions Φ164.5(mm)x295(mm)
Weight (approx.) 2kg (4.41lbs)
Mount Option
Long -arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-
1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ


Ordel Models
DS -2DE4220IW-DE, 12VDC&POE(802.3at, class4)













DS -1602ZJ-Conner
Conner Mount
DS -1602ZJ-Pole
Pole Mount
DS -1602ZJ-Box
Box Mount
DS -1005KI
USB Joy-stick
DS -1100KI
Network Keyboard
DS -1618ZJ
Short arm wall
Mount
DS -1662ZJ
Pendant mount
DS -1661ZJ
Pendant mount
DS -1663ZJ
Celling mount
DS -1602ZJ
Wall Mount
Dimensions Accessories
