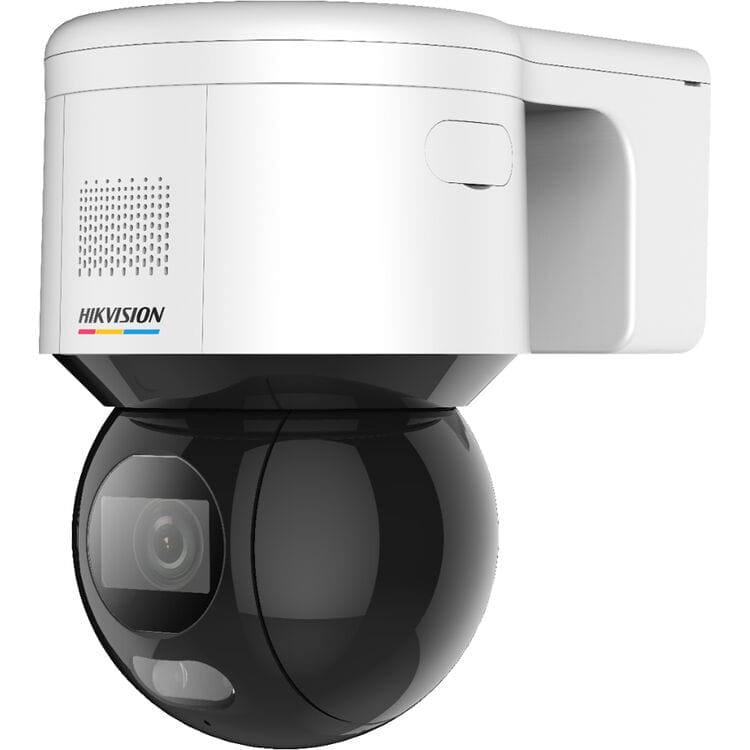

DS-2DE3A400BW-DE/W(F1)(T5)

Kamera IP PTZ 4MP, 1/1.8" progressive scan CMOS, Acusense, ColorVU, Kolor: 0.0005 Lux @ (F1.0, AGC ON); 120 dB WDR, HLC, BLC, 3D DNR, Defog, obszar ekspozycji, obszar ostrości; 16x cyfrowy zoom; ogniskowa; 4mm; HFOV 88.7°, VFOV: 46.5°, DFOV: 105°; 300 presetów, 8 patroli ; Rozdzielczość: 2560 × 1440, trzy strumienie; H.265, H.264, MJPEG; Funkcje: podstawowe zdarzenia, zdarzenia smart, nagrywanie smart.; Sieć: NAS (NFS, SMB/ CIFS), ANR; Interfejs: 1/1 wej./wyj alarmowe; 1/1 wej./wyj audio; Wi-Fi, zakres Wi-Fi max. 50m; Zasilanie: 12 VDC, PoE (802.3at) Temperatura pracy: -30°C do 65°C, reset; Wymiary: 179.3 mm × 120 mm x 182 mm; waga 1125g; IP66...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2DE3A400BW-DE/W(T5)
4 MP Network PTZ Camera










Hikvision DS-2DE3A400BW-DE/W(T5) 4MP Network PTZ
Camera can be widely used in multiple indoor and outdoor
scenes, such as malls, stores, parks, factories, scenic areas,
entrances and exits.
Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.

 Accurate human and vehicle target classification and
alarm, and face capture based on deep learning hardware
and algorithm
 Face capture: automatic selection of best shot; up to 5
faces detected and captured at the same time
 Linked audible and visual alarm. Built-in microphone and
speaker
 Up to 2560 x 1440 @ 30 fps
 Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0
Lux with white light
 24/7 colorful imaging with low power consumption. Up to
30 m white light distance
 120 dB WDR, 3D DNR, HLC
 IP66; PoE






 Specification
Camera
Image Sensor 1/1.8" progressive scan CMOS
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
Shutter Speed 1/1 to 1/30,000 s
Day & Night 24/7 colorful imaging
Zoom 16x digital
Max. Resolution 2560 x 1440
Lens
Focal Length 4 mm
FOV
Horizontal field of view: 88.7°
Vertical field of view: 46.5°
Diagonal field of view: 105.0°
Aperture F1.0
Illuminator
Supplement Light Type White Light
Supplement Light Range White Light Distance: up to 30 m
PTZ
Movement Range (Pan) 350°
Movement Range (Tilt) 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
Tilt Speed Tilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional Pan Yes
Presets 300
Power-off Memory Yes
Park Action Preset, patrol scan
3D Positioning Yes
Preset Freezing Yes
Scheduled Task Preset, patrol scan, dome reboot, dome adjust, aux output
Video
Main Stream
50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720);
60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288);
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288);
60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Environment Noise Filtering Yes



Network
Network Storage NAS (NFS, SMB/ CIFS)
Protocols
IPv4/IPv6, HTTP, HTTPS, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP,
RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
API
ISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G,
Profile T), ISUP
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 levels: Administrator, Operator and User
Security
Authenticated username and password, MAC address binding, HTTPS encryption, IP
address filter
Web Browser IE 10+, Chrome 57+, Firefox 52+, Safari 12+
Wireless (Wi-Fi)
Wi-Fi Protocols IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz -2.4835 GHz
Channel Bandwidth 20/40 MHz
Modulation
802.11b: CCK, DQPSK, DBPSK
802.11g: OFDM/64-QAM, 16-QAM, QPSK, BPSK
802.11n: OFDM/64-QAM, 16-QAM, QPSK, BPSK
Encryption Mode 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rate 11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps
Wireless Range Up to 50 m
Day/Night Switch Day, night, auto, scheduled-switch
Image Enhancement BLC, HLC, 3D DNR
Wide Dynamic Range (WDR) 120 dB WDR
Defog Digital defog
Regional Exposure Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser
Image Parameters Switch Yes
Privacy Mask Up to 24 masks (8 masks for each scene)
SNR > 52 dB
Interface
Built-in Speaker 1 built-in speaker
Power Output 12 VDC; < 60 mA
Ethernet Interface 1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
On-board Storage Built-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
Alarm 1 input, 1 output
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Yes
Event
Basic Event Video tampering alarm, motion detection, alarm input, alarm output, exception



Smart Event
Line crossing detection, region entrance detection, unattended baggage detection,
object removal detection, intrusion detection, region exiting detection, audio
exception detection
Alarm Linkage
Preset, memory card video recording, alarm output, sending email, notify surveillance
center, upload to FTP, audible warning, white light flashing
Deep Learning Function
Face Capture
Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting
of face in motion, and outputs the best face picture
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
General Function Mirror, password protection, watermark, IP address filter
Power
12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A
Max. 16 W (including max. 4 W for white light)
Operating Condition Humidity: ≤ 90%, temperature: -30°C to 65°C (-22°F to 149°F)
Demist Yes
Dimension 179.3 mm x 120 mm x 182 mm (7.06" x 4.72" x 7.71")
Weight Approx. 1.125 kg (2.48 lb.)
Approval
Protection IP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection


 Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.


 Available Model
DS-2DE3A400BW-DE/W(F1)(T5)



 Dimension
