DS-2DE2A404IW-DE3(C0)(S6)(C)

Dostępność: 11-50
Cena: 1 455,00 zł 1455.00
bez 23.00% VAT i kosztów dostawy
ilość szt.

towar niedostępny

dodaj do przechowalni
Producent: HIKVISION
Kod produktu: 327000399

Opis

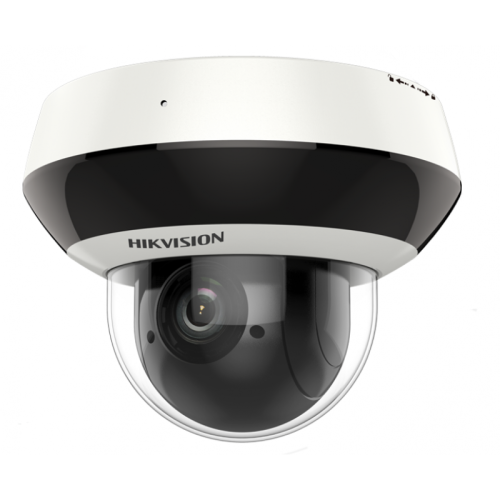

Kamera IP PTZ 4MP, powered-by-DarkFighter, 1/2.8" Progressive Scan CMOS, 2560 × 1440, Kolor: 0.005 Lux @ (F1.5, AGC ON), Cz/B: 0.001 Lux @ (F1.5, AGC ON), 0 Lux dla IR; 4 x zoom optyczny, 16 x zoom cyfrowy; Obiektyw: 2.8-12mm; HFOV 96.7° do 31.6°, VFOV 51.1° do 17.7°, DFOV 115.1° do 36.3°; Zasięg IR do 20m, trzy strumienie, H.265+/H.265/H.264+/H.264; Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP; NAS (NFS, SMB/CIFS), (ANR); BLC, HLC, 3D DNR, WDR 120 dB; cyfrowy defog; 24 konfigurowalne maski prywatności; obszar ostrości, obszar ekspozycji; slot na kartę pamięci do 256 GB, wbudowany mikrofon, 1/1 we/wyj audio, wyjście zasilające; Zdarzenia podstawowe: detekcja ruchu, sabotaż wideo, wyjątki, Zdarzenia Smart: (Wykrywanie twarzy, wykrywanie przekroczenia linii, wykrywanie wtargnięcia, wykrywanie wejścia do regionu, wykrywanie wyjścia z obszaru, wykrywanie bagażu bez nadzoru, wykrywanie usunięcia obiektu, wykrywanie wyjątków dźwiękowych); Zasilanie: 12 VDC, Max. 9.2 W; PoE (802.3af); Wymiary: Ø 130.7 mm ×101.7 mm; Waga: 530 g; Temperatura pracy: -20 °C do 60 °C; IP66 (IEC 60529-2013), IK10,...

Gwarancja: 36 mies.

Karta katalogowa PDF


Tekstowa zawartość karty katalogowej PDF:

DS-2DE2A404IW-DE3(S6)
4 MP 4x IR PTZ Network Camera









Hikvision DS-2DE2A404IW-DE3(S6) 4 MP 4x IR PTZ Network
Camera can be widely used in indoor scenes, such as
corridor, office, factory, convenience store, and restaurant.

 High quality imaging with 4 MP resolution
 Excellent low-light performance via
powered-by-DarkFighter technology
 Clear imaging against strong back lighting due to 120 dB
WDR technology
 Pan and tilt ability enables camera to monitor zones of
interest
 4x optical zoom allows for closer viewing of subjects in
expansive areas
 Up to 20m IR range ensures safety at night
 Water and dust resistant (IP66) and vandal proof (IK10)





 DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 180 m (590.6 ft) 71.4 m (234.3 ft) 36 m (118.1 ft) 18 m (59.1 ft)

 Specification
Camera Module
Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 2560 x 1440
Min. Illumination Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR cut filter
Zoom 4x optical, 16x digital
Slow Shutter Yes
Lens
Focal Length 2.8 to 12 mm
FOV Horizontal FOV 96.7° to 31.6°, vertical FOV 51.1° to 17.7°, diagonal FOV 115.1° to 36.3°
Focus Auto, semi-auto, manual
Aperture Max. F1.5
Zoom Speed Approx. 2 s
Illuminator
Supplement Light Type IR
Supplement Light Range IR Distance: up to 20 m
Smart Supplement Light Yes
IR Wavelength 850 nm
PTZ
Movement Range (Pan) 0° to 355°
Movement Range (Tilt) 0° to 90°
Pan Speed Pan speed: configurable from 0.1° to 100°/s; preset speed: 100°/s
Tilt Speed Tilt speed: configurable from 0.1° to 100°/s, preset speed 100°/s
Proportional Zoom Yes
Presets 300
Preset Freezing Yes
Park Action Preset
3D Positioning Yes
PTZ Status Display Yes
Scheduled Task Preset, dome reboot, dome adjust
Power-off Memory Yes
Video
Main Stream
50 Hz: 25 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720);
60 Hz: 30 fps (2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720)



Sub-Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288);
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50 Hz: 25 fps (704 x 576, 640 x 480, 352 x 288);
60 Hz: 30 fps (704 x 480, 640 x 480, 352 x 240)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main profile
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 8 fixed regions for each stream
Audio
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit rate
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/16
-64Kbps(AAC)
Audio Sampling Rate
AAC: 16 kHz, 32 kHz, 48 kHz; MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32
kHz, 64 kHz
Environment Noise Filtering Yes
Network
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
API
Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK,
ISUP
User/Host Up to 32 users; 3 user levels: administrator, operator, and user
Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2,
host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, HikCentral Pro, Hik-Connect
Web Browser IE 10-11, Chrome 57+, Firefox 52+, Safari 11+
Image Parameters Switch Yes
Image Settings
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by
client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR >52dB
Defog Digital defog
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable polygon privacy masks, mask color or mosaic configurable
Regional Focus Yes
Regional Exposure Yes



Interface
Ethernet Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Microphone 1 built-in microphone, picking up sounds in the radius up to 5 meters
Audio
1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%;
1 output (line out), line level, output impedance: 600 Ω
Reset Yes
Power Output 12 VDC, max. 60 mA
Event
Basic Event Motion detection, video tampering alarm, exception
Smart Event
Face detection, line crossing detection, intrusion detection, region entrance detection,
region exiting detection, unattended baggage detection, object removal detection,
audio exception detection
Alarm Linkage
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger
recording, and PTZ actions (such as preset)
General
Power 12 VDC, Max. 9.2 W; PoE (802.3af)
Dimension Ø 130.7 mm x101.7 mm (Ø 5.15" x 4.00")
Weight Approx. 530 g (1.17 lb.)
Operating Condition -20 °C to 60 °C (-4 °F to 140 °F). Humidity 90% or less (non-condensing)
General Function Mirror, password protection
Approval
Protection
IP66 (IEC 60529-2013), IK10, TVS 4000V lightning protection, surge protection and
voltage transient protection


 Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.

 Available Model
DS-2DE2A404IW-DE3(C0) (S6)(C)



 Dimension



 Accessory
Optional





DS-1294ZJ-PT
Wall Mount
DS-1297ZJ
Pendant Mount
(extendable)
DS-1299ZJ
Pendant Mount
DS-1297ZJ-ES
Pendant Mount
(extendable)




DS-1297ZJ-M
Pendant Mount
(extendable)
MSA-C1500IC12.0-18P-US
MSA-C1500IC12.0-18P-GB
MSA-C1500IC12.0-18P-JP
Power adapter
LAS60-57CN-RJ45
Hi-PoE Midspan

Dane techniczne

Zoom optyczny ± 5x
Wyjście audio 1
Wejście audio 1
Rozmiar przetwornika 1/2.8
Zasilanie PoE PoE 802.3af 15.4W
Zasilanie DC 12VDC
Szczelność IP66
Odporność mechaniczna IK10
Rozdzielczość wizyjna 4MPIX
Typ kamery PTZ, Obrotowa
Oświetlacz podczerwieni ± 20 m
Zakres dynamiki (WDR) WDR 120dB
Typ obiektywu Zmiennoogniskowy motozoom
Zmienna ogniskowa (od) ± 2.8 mm
Zmienna ogniskowa (do) ± 12 mm
Slot na karty Tak
Wbudowany mikrofon Tak
