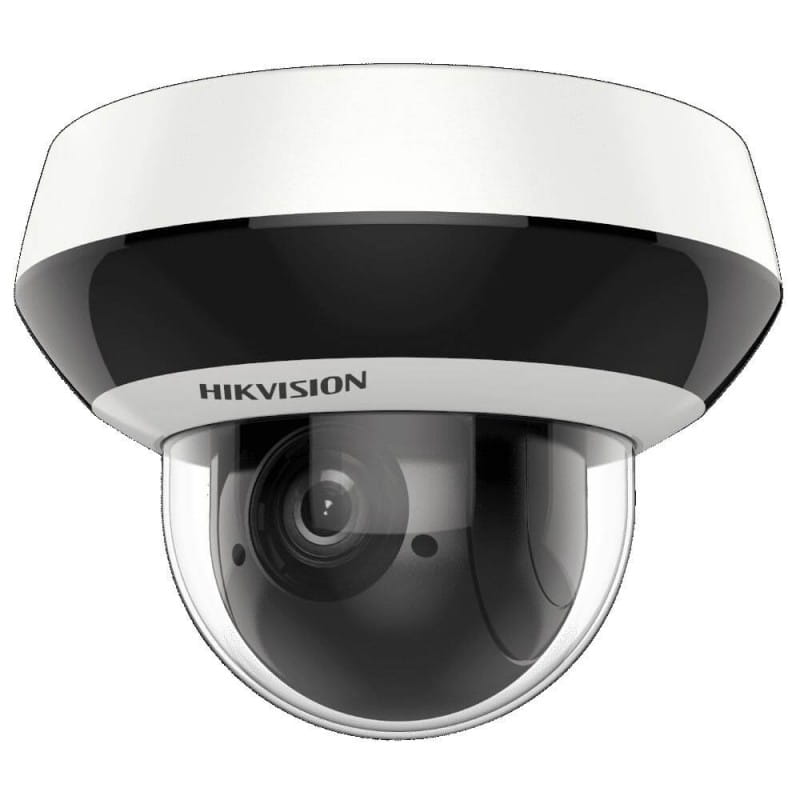

DS-2DE2A204IW-DE3(2.8-12mm)(C)

Kamera mini PTZ IP Hikvision, rozdzielczość 2MP (max. 1920x1080@30kl/s), przetwornik: 1/3" Progressive Scan CMOS, czułość: tryb kolorowy: 0.005 Lux (F1.6, wł. AGC), CZ/B: 0.001 Lux (F1.6, wł. AGC) 0 Lux IR ON, zasięg IR do 20m, dzień/noc ICR, zoom optyczny 4x (2.8-12mm), zoom cyfrowy 16x, kąt widzenia od 100.5st. do 32.6st., apertura F1.8-F2.5. Poprawa obrazu: 120dB WDR, 3D DNR, EIS, 24 programowalne maski prywatności. Trzy strumienie, kompresja wideo: H.264+/H.264/MJPEG, kompresja audio: G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM. Podstawowe zdarzenia: detekcja ruchu, sabotaż wideo, wyjątki. Zdarzenia SMART: detekcja twarzy, detekcja intruza, detekcja przekroczenia linii, detekcja wejścia w obszar, detekcja wyjścia z obszaru, detekcja usunięcia przedmiotu, detekcja pozostawienia bagażu, detekcja wyjątku audio. ROI: 4 strefy. Wbudowany slot kart pamięci (do 256 GB). Prędkość obrotu w poziomie: 0.1st. - 100st./s, prędkość obrotu w pionie: 0.1st.- 100st./s, zakres obrotu: 355st., zakres wychylenia pionowego od 0st. do 90st., Ilość presetów: 300. Wejście/wyjście audio: 1/1, wbudowany mikrofon, IP66, IK10. Temperatura pracy: -20st.C~60st.C. Wymiary: śr. 130.7 mm x 101.7 mm, waga: 0,53 kg. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Hikvision DS-2DE2A204IW-DE3(2.8-12MM)(B) 2MP 4x IR
Network PTZ Camera can be widely used in multiple
scenes, such as the corridor, office, convenience store,
and restaurant, etc.
Key Features
* 1/3" progressive scan CMOS
* Up to 1920 x 1080@30fps resolution
* Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
* 4x optical zoom, 16x digital zoom
* 120 dB WDR, 3D DNR, EIS, Regional Exposure,
Regional Focus
* 12 VDC & PoE
* Up to 20 m IR distance
* IK10, IP66
* Support H.265+/H.265 video compression
* Built-in microphone


DS-2DE2A204IW-DE3(2.8-12MM)(B)
2MP 4x IR PTZ Network Camera



05060020190302
Specification
Camera Module
Image Sensor 1/3" progressive scan CMOS
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask 24 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
WDR 120 dB WDR
Lens
Focal Length 2.8 mm to 12 mm, 4x optical zoom
Zoom Speed Approx. 2 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 100.5° to 32.6° (Wide-Tele)
Vertical field of view: 52.8° to 18.3° (Wide-Tele)
Diagonal field of view: 120.2° to 37.5° (Wide-Tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.6 to F2.7
PTZ
Movement Range (Pan) 0° to 355°
Pan Speed
Configurable, from 0.1°/s to 100°/s,
Preset speed: 100°/s
Movement Range (Tilt) From 0° to 90°
Tilt Speed Configurable, from 0.1°/s to 100°/s
Preset Speed: 100°/s
Proportional Zoom Yes
Presets 300
Power-off Memory Yes
Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Yes
H.265+ Yes
Video Bitrate 32 Kbps to 16384 Kbps
Audio Compression G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 160 Kbps(MP2L2)
SVC Yes
Smart Features
Basic Event Motion Detection, Video Tampering Detection, Exception
Smart Event
Face Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection,
Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio
Exception Detection
Smart Record ANR (Automatic Network Replenishment), Dual-VCA



05060020190302
ROI Main stream, sub-stream, and third stream respectively support four fixed areas.
IR
IR Distance 20 m
Smart IR Yes
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream 50Hz: 25fps (1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement 3D DNR, EIS, Regional Exposure, Regional Focus
Network
Network Storage
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/
CIFS), ANR
Alarm Linkage
Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance
Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Security Measures User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption;
IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Interface
Audio Interface 1-ch audio input (mic in/line in) and 1-ch audio output (line out)
1 built-in microphone
Network Interface 1 RJ45 10 M/100 M Ethernet, PoE
Power Output 12VDC, max. 60 mA
General
Language (Web Browser
Access )
32 languages.
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power 12 VDC (Max. 10.9 W, including Max. 4.2 W for IR)
PoE 802.3af (Max. 12.2 W, including Max. 4.2 W for IR)
Working Temperature -20°C to 60°C (-4°F to 140°F)
Working Humidity ≤ 90%
Protection Level IP66 Standard, IK 10, Surge Protection, ±2kV Line to Gnd, ±1kV Line to Line, IEC61000-4-5
Material Aluminum alloy, PC, PC+ABS
Dimensions Φ 130.7 mm x 101.7 mm (Φ 5.15" x 4.00")
Weight Approx. 0.53 kg (1.17 lb)





05060020190302
DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish
persons or objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.
DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 130.9 m (429.5 ft) 51.9 m (170.4 ft) 26.2 m (85.9 ft) 13.1 m (42.9 ft)

Available Model
DS-2DE2A204IW-DE3(2.8-12MM)(B), 12 VDC & PoE

Dimensions
101
.7
mm
(4
.00
")
φ80.7mm(3.18")
Φ120mm(4.72")
φ130.7mm(5.15")
83.5mm(3.29")
46
mm
(1
.81
")
6-φ4.5mm(0.18")
1/4-20UNC






05060020190302
Accessory
Optional:




DS-1294ZJ-PT
Wall Mount
DS-1297ZJ
Pendant Mount (extendable)
DS-1299ZJ
Pendant Mount
DS-1297ZJ-ES
Pendant mount (extendable)



DS-1297ZJ-M
Pendant Mount (extendable)
MSA-C1500IC12.0-18P-US
MSA-C1500IC12.0-18P-GB
MSA-C1500IC12.0-18P-JP
Power adapter
LAS60-57CN-RJ45
Hi-PoE midspan
