DS-2DE2204IW-DE3/W(S6)

Kamera IP mini PTZ DS-2DE2204IW-DE3(S6), 1/2.8" progressive scan CMOS, Min. Oświetlenie: Kolor: 0.05 Lux @ (F1.8, AGC ON); Cz/B: 0.005 Lux @ (F1.8, AGC ON); 0 Lux dla IR, BLC, WDR 120dB, HLC, 3D DNR, DEFOG, obszar ekspozycji, przełączalne parametry obrazu, balanas bieli, cyfrowy zoom 16x, 24 programowalne maski prywatności, Obiektyw: 2.8 do 12 mm, 4 × Optyczny, HFOV 96° do 46° (Wide-Tele) VFOV: 51° do 26° (Wide-Tele) DFOV: 112° do 55° (Wide-Tele), trzy strumienie, H.265, H.264, MJPEG; Zdarzenia podstawowe, zdarzenia smart, nagrywanie smart, encoding smart; 1/1 we/wyj alarmowe, 1 wbudowany mikrofon, 1 wej audio, 1 głośnik, 1 wyj audio; Zasięg IR do 30m; Zasilanie: 12 VDC, PoE (802.3at); Temp pracy: -10°C do 50°C; Wymiary: Ø 125 × 136.7 mm; Waga: Ø 125 × 136.7 mm, Model z Wi-Fi: IEEE802.11b, 802.11g, 802.11n;...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2DE2204IW-DE3/W

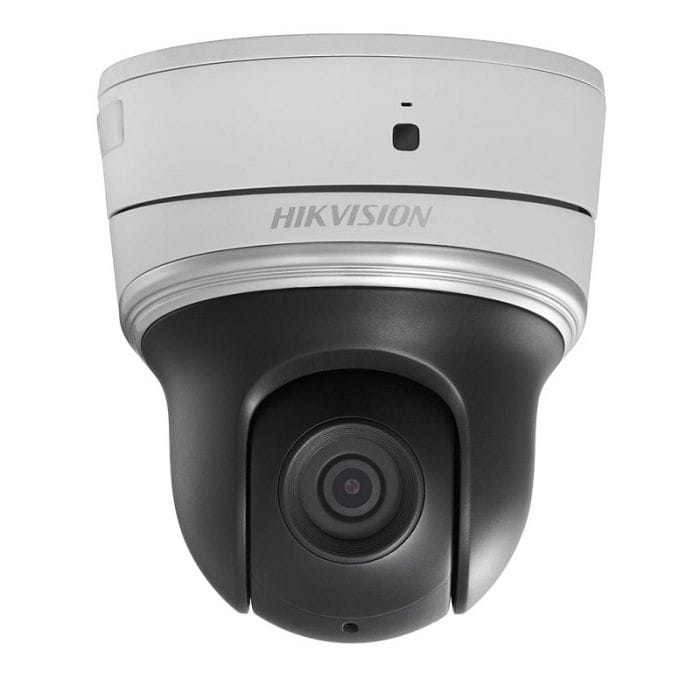

2 MP 4 x Network IR Wi-Fi PTZ Camera









Hikvision DS-2DE2204IW-DE3/W 2 MP 4 x Network IR Wi-Fi
PTZ Network Camera adopts 1/2.8" progressive scan CMOS
chip. With the 4 x optical zoom lens, the camera offers
more details in the indoor environments.
This series of cameras feature a wide range of functions,
including intrusion detection, line crossing detection, audio
exception detection, motion detection, and video
tampering detection, benefitting users with great
improvement on security efficiency.
● 1/2.8" progressive scan CMOS
● Up to 1920 x 1080@30fps resolution
● Min. illumination
Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.005 Lux @(F2.0, AGC ON)
0 Lux with IR
● 4 x optical zoom, 16 x digital zoom
● Digital WDR, 3D DNR, HLC, BLC, Smart IR
● Up to 20 m IR distance
● 12 VDC & PoE (802.3af, class3)
● Support Wi-Fi
● Support H.265+/H.265
● Built-in microphone with 1 audio input and 1 audio
output






Specifications

Camera Module
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination
Color: 0.05 Lux @(F2.0, AGC ON)
B/W:0.005 Lux @(F2.0, AGC ON)
0 Lux with IR
White Balance
Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent
Lamp/Sodium Lamp
Gain Auto/Manual
Shutter Time 1 to 1/30,000 s
Day & Night IR Cut Filter
Digital Zoom 4 x
Privacy Mask 8 programmable privacy masks
Focus Mode Auto/Semi-automatic/Manual
Digital WDR Yes
Lens
Focal Length 2.8 mm to 12 mm, 4 x optical zoom
Zoom Speed Approx. 2 s (optical lens, wide-tele)
Field of View
Horizontal field of view: 100° to 25° (Wide-Tele)
Vertical field of view: 56.3° to 14.1° (Wide-Tele)
Diagonal field of view: 114.7° to 28.7° (Wide-Tele)
Working Distance 10 mm to 1500 mm (wide-tele)
Aperture Range F1.8 to F2.5
IR
IR Distance Up to 20 m
IR Intensity Automatically adjusted, depending on the zoom ratio
PTZ
Movement Range (Pan) 0° to 350°
Pan Speed Configurable, from 0.1°/s to 60°/s. Preset speed: 60°/s
Movement Range (Tilt) 0° to 90°
Tilt Speed Configurable, from 0.1°/s to 50°/s. Preset speed: 50°/s
Proportional Zoom Yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Power-off Memory Yes
Park Action Preset/Patrol Scan
PTZ Position Display Yes
Preset Freezing Yes
Scheduled Task Preset/Patrol /Dome Reboot/Dome Adjust/Aux Output



Compression Standard
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
H.264 Type Baseline profile/main profile/high profile
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Video Bitrate 32 Kbps to 16384 Kbps
SVC Yes
Smart Features
Basic Event Motion Detection, Video Tampering Detection
Smart Event Intrusion Detection, Line Crossing Detection, Audio Exception Detection
ROI Main stream, sub-stream, and third stream respectively support two fixed areas.
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-Stream
50Hz: 25fps (704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (704 x 480, 640 x 480, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 576, 640 x 480, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720, 704 x 480, 640 x 480, 352 x 240)
Image Enhancement HLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
SVC Yes
Network
Network Storage
Built-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB; NAS (NFS,
SMB/ CIFS), ANR
Alarm Linkage
Alarm actions, such as Memory Card Video Record, Trigger Recording, Notify
Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 user levels, administrator, operator and user
Security Measures
User authentication (ID and PW), Host authentication (MAC address); HTTPS
encryption; IEEE 802.1x port-based network access control; IP address filtering
Client iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser IE 8 to 11,Chrome 31.0+, Firefox 30.0+, Edge 16.16299+
Wi-Fi Yes
Interface
Alarm 1-ch alarm input and 1-ch alarm output
Audio 1-ch audio input and 1-ch audio output



Network Interface 1 RJ45 10 M/100 M Ethernet Interface, PoE (802.3af, class3)
General
Language (Web Browser Access )
32 languages.
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power
12 VDC, 0.75 A and PoE (802.3af), 36 to 57 VDC, 0.35 A, Class3
Max. 9 W, including max. 3 W for IR
Working Environment Temperature: -10°C to 50°C (14°F to 122°F), humidity: ≤ 90%
Protection Level 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Material ADC12 PC PC+ABS SUS304 POM
Dimension Φ 125 mm x 136.7 mm (Φ 4.92" x 5.38")
Weight Approx. 0.65 kg (1.43 lb.)

DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view. It is calculated based on the camera sensor specification and the criteria given by EN 62676-4:
2015.

DORI Detect Observe Recognize Identify
Definition 25 px/m 63 px/m 125 px/m 250 px/m
Distance (Tele) 120.0 m (393.7 ft) 47.6 m (156.2 ft) 24.0 m (78.7 ft) 12.0 m (39.4 ft)

Available Model
DS-2DE2204IW-DE3/W, 12 VDC & PoE (802.3af, class3)
Dimensions





05060020200218
Accessory
Optional




DS-1294ZJ
Wall Mount
DS-1100KI
Network Keyboard
DS-1005KI
USE Joy-stick
MSA-C1500IC12.0-18P-US
MSA-C1500IC12.0-18P-GB
MSA-C1500IC12.0-18P-JP
Power adapter


LAS60-57CN-RJ45
Hi-PoE Midspan
