DS-2CV2U21FD-IW(2.8mm)

Kamera IP 1 / 2,8 "Progresywny CMOS, ICR, 0lux z IR, 1920x1080: 25fps (P) / 30fps (N), obiektyw 2,8 mm, H.264 / MJPEG, dual-stream, 3D DNR, 5m IR, wsparcie na pokładzie do 128 GB, obsługa mobilnego monitorowania przez chmurę HIK-connect, wbudowany mikrofon i głośnik, obsługę dwukierunkowego dźwięku, wbudowany Wi-Fi, zasilanie 12VDC. Domyślnie: brak karty SD. / 16GB-T: Dołącz kartę SD 16GB. / 32 GB-T: Dołącz kartę SD 16 GB. / 64GB-T: Dołącz kartę SD 16 GB....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CV2U21FD-IW/(16G-T/32G-T/64G-T)

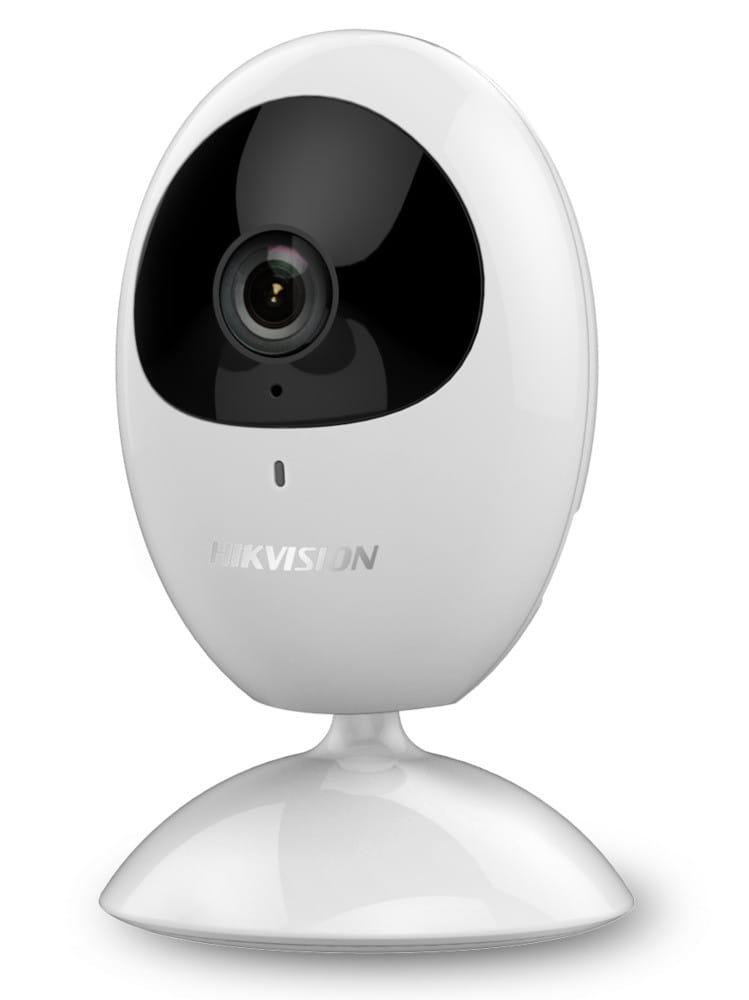

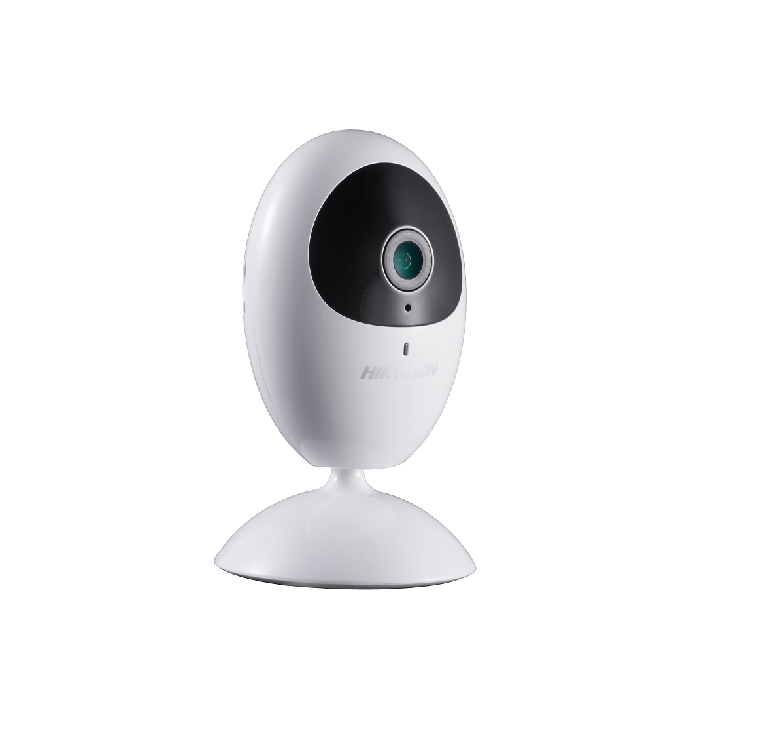

2.0 MP Network Cube Camera
Key Features

Up to 2.0 megapixel high resolution
Two video streams
2.8mm fixed lens
Digital Wide Dynamic Range
3D Digital Noise Reduction
Build-in microphone and speaker, support
two-way audio
Support on-board storage, up to 128GB
Up to 10 m IR range
Built-in Wi-Fi
DC 5V ± 15 %, micro USB interface
Mobile Monitoring via Hik-Connect or
iVMS-4500





Specifications
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Iris F2.0
Lens 2.8mm, horizontal field of view 105.8°
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR
Wide Dynamic Range Digital WDR
Compression Standard
Video Compression
Main stream: H.264
Sub stream: H.264
H.264 Type Baseline Profile/Main Profile
Video Bit Rate 32 Kbps – 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Max. Resolution 1920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps (1920 x 1080, 1280 x720)
60Hz: 30fps (1920 x 1080, 1280 x720)
Sub Stream
Max. Frame Rate
50Hz: 25fps (704 x 576, 352 x 288, 640 x 480, 320 x 240)
60Hz: 30fps (704 x 480, 352 x 240, 640 x 480, 320 x 240)
Image Settings Brightness, saturation, sharpness, contrast are adjustable via client software
Day/Night Switch Support auto/scheduled
Backlight Compensation Support, zone optional
Region of Interest Support 1 fixed region for each stream
Audio
Environment Noise Filter Support
Audio Input/Output Support mono soundtrack
Audio Sampling Rate Max. 16 kHz
Network
Network Storage Support microSD/SDHC/SDXC card, up to 128 GB local storage
Detection Motion Detection
Alarm Trigger
Video Tampering Alarm, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted, Illegal
Login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv6, Bonjour,
SMTP, 802.1x
Standard ISAPI, CGI
General Function One-key reset, Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark
Interface
On-board Storage Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Audio Interface 1 build-in microphone, 1 build-in speaker
Reset Yes


Wi-Fi
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz - 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters (The performance varies based on actual environment)
General
Operating Conditions -10 °C to 40°C (14 °F to 104 °F), Humidity 95% or less (non-condensing)
Power Supply DC 5V ± 15 %, micro USB interface
Current Max. 0.9A
Power Consumption Max. 4.5W
IR Range Up to 10 meters
Material Plastic
Memory Card
DS-2CV2U21FD-IW: no memory card included
DS-2CV2U21FD-IW/16G-T: includes a 16 GB memory card
DS-2CV2U21FD-IW/32G-T: includes a 32 GB memory card
DS-2CV2U21FD-IW/64G-T: includes a 64 GB memory card
Dimensions Φ 64 x 106.9 mm (Φ 2.52'' x 4.21'')
Weight 115 g (0.25 lbs)







UNIT: mm [inch]
60.1[2.37]
Ø64[2.52]
41.5[1.63]
1
0
6
.
9
[
4
.
2
1
]
8
0
.
5
[
3
.
1
7
]




Ordering Models

DS-2CV2U21FD-IW, DS-2CV2U21FD-IW/16G-T, DS-2CV2U21FD-IW/32G-T, DS-2CV2U21FD-IW/64G-T
Dimensions
