DS-2CE79U1T-IT3ZF(2.7-13.5mm)

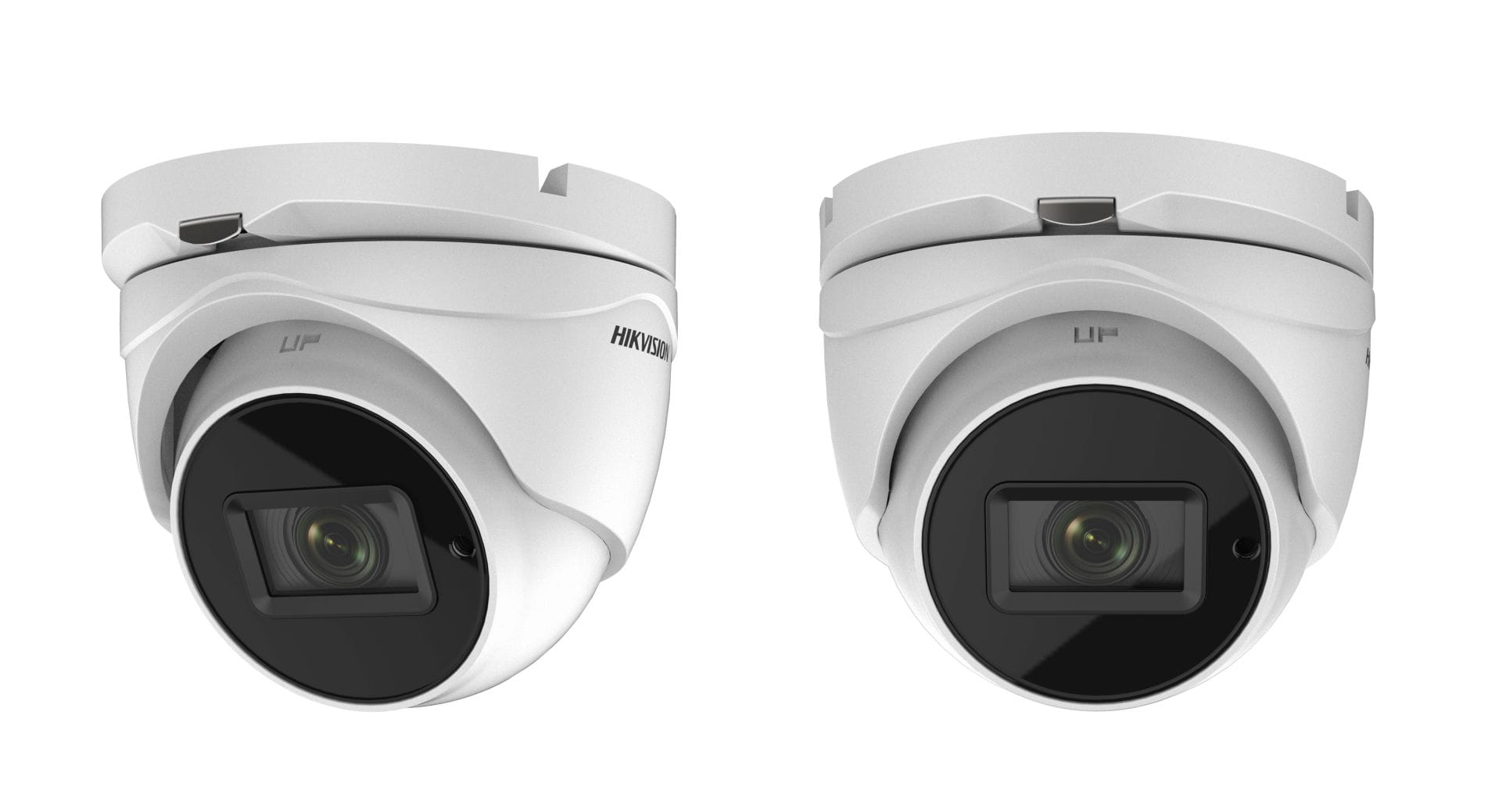

Kamera Turbo-HD Hikvision w obudowie typu turret. Rozdzielczość 8.3MP @12.5fps, Przetwornik 8MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, promiennik typu EXIR 2.0, dzień/noc ICR, WDR 120dB, Smart IR, AGC, 3D DNR, WB (ATW/MWB), BLC/HLC, 4 maski prywatności, 4 strefy detekcji ruchu, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI), obiektyw motoryzowany: 2.8-12mm. IP67, 3-osiowa regulacja położenia. Wbudowana czyjka PIR, zasięg 11m, kąt: 110st.. Białe światło alarmowe. Wymiary: śr.109.8x93.2mm, waga 350g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 8.29 MP high performance CMOS
 Auto focus
 3840 x 2160 resolution
 2.7 mm to 13.5 mm motorized vari-focal lens
 EXIR 2.0, smart IR, up to 60 m IR distance
 OSD menu, DNR
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

DS-2CE79U1T-IT3ZF
8 MP Turret Camera






Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,
2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 5MP@20fps
CVBS: 960H P/N
Resolution 3840 (H) x 2160 (V)
Min. illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5s to 1/50, 000 s
NTSC: 1/15 s to 1/50, 000 s
Lens 2.7 mm to 13.5 mm motorized vari-focal lens
Horizontal Field of View 108.1° to 45.6°
Lens Mount Φ 14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Synchronization Internal synchronization
DWDR (Digital Wide Dynamic Range) 105 dB
Menu
AGC Yes
D/N Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC Yes
DWDR (Digital Wide Dynamic Range) Yes
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 9 VDC to 15 VDC
Power Consumption Max. 8.6W
Protection Level IP67
Material Metal
IR Range Up to 60 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 134.3 mm x 123.86 mm x 110.24 mm (5.29" x 4.88" x 4.34")
Weight Approx. 580 g (1.28 lb.)


Order Model
DS-2CE79U1T-IT3ZF
Dimension
123.86 mm (4.88" )
1
1
0
.
1
1

m
m

(
4
.
3
8
"

)
123.86 mm (4.88" )
1
3
4
.
3

m
m

(
5
.
2
9
"

)
Ø 90 mm (3.54" )
3-Ø 4.5 mm
(0.18" )
120°



















Accessory













DS-1273ZJ-130-TRL
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-M
Junction Box






DS-1281ZJ-M
Inclined Ceiling Mount
