DS-2CE79H0T-IT3ZF(2.7-13.5mm)(C)

Kamera analogowa Turret 5MP, przetwornik 5 MP CMOS, rozdzielczość 2560 (H) × 1944 (V); Min. Oświetlenie: 0.01 Lux @ (F1.2, AGC ON), 0 Lux dla IR; Obiektyw: 2.7 mm do 13.5 mm HFOV: 95° do 26°, VFOV: 72° do 20°, DFOV: 126° do 33°; Cyfrowy WDR, BLC, HLC, 2D DNR; Przełączalne wyjścia wideo TVI/AHD/CVI/CVBS; Zasięg IR do 40m, Temp pracy - 40°C do 60°C; IP67, Wymiary: 123.87 mm × 110.24 mm × 134.3 mm; Waga 555 g...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE79H0T-IT3ZF(C)

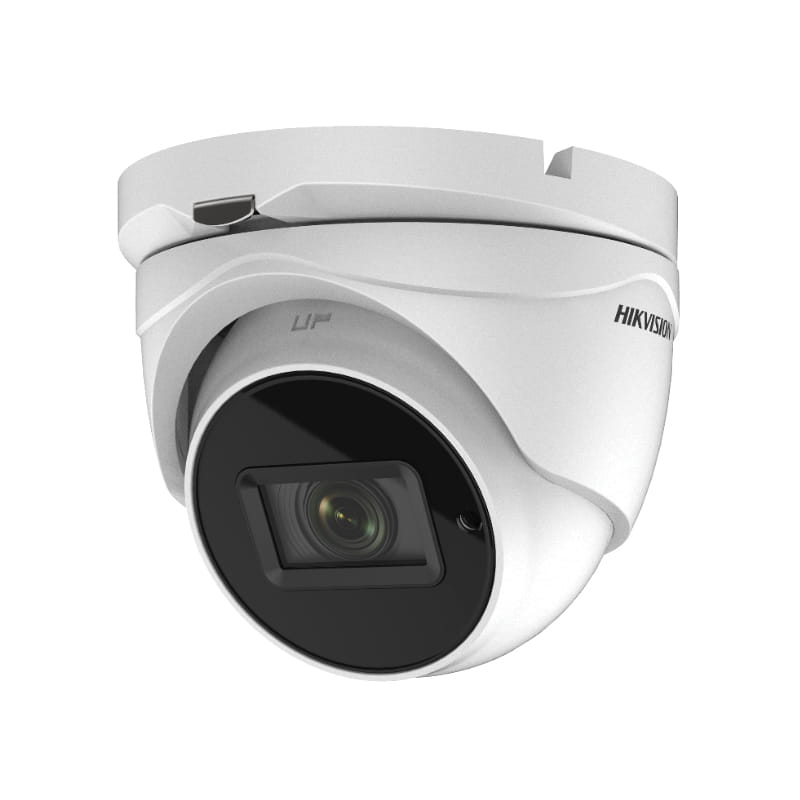

5 MP Motorized Varifocal Turret Camera









 High quality imaging with 5 MP, 2560 x 1944 resolution
 2.7 mm to 13.5 mm motorized varifocal lens
 Up to 40 m IR distance for bright night imaging
 One port for four switchable signals (TVI/AHD/CVI/CVBS)
 Water and dust resistant (IP67)







 Specification
Camera
Image Sensor 5 MP CMOS
Signal System PAL/NTSC
Resolution 2560 (H) x 1944 (V)
Frame Rate
TVI: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080p @ 30 fps, 1080p @ 25 fps
AHD: 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps
CVI: 4 M @ 30 fps, 4 M @ 25 fps
CVBS: PAL/NTSC
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Lens 2.7 mm to 13.5 mm motorized varifocal lens
Field of View horizontal FOV: 95° to 26°, vertical FOV: 72° to 20°, diagonal FOV: 126° to 33°
Lens Mount Φ14
Day & Night IR Cut Filter
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Day/Night Mode Auto/Color/BW (Black and White)
Image Mode STD/HIGH-SAT
AGC Yes
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR, BLC, HLC, Global
Noise Reduction 2D DNR
Language English
Function Brightness, Smart IR, Sharpness
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
IR Range Up to 40 m
Operating Conditions -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Power Supply
12 VDC±15%
*You are recommended to use one power adapter to supply the power for one camera.
Consumption Max 6.2 W
Protection Level IP67
Material Metal
Communication HIKVISION-C
Dimension 123.87 mm x 110.24 mm x 134.3 mm (4.87" x 4.34" x 5.29")
Weight Approx. 555 g (1.22 lb.)



 Available Model
DS-2CE79H0T-IT3ZF(C)



 Dimension



 Accessory
 Optional
DS-1280ZJ-M
Junction box
DS-1273ZJ-130-TRL
Wall mount
DS-1276ZJ-SUS
Corner mount
DS-1281ZJ-M
Inclined ceiling
mount
DS-1275ZJ-SUS
Vertical pole
mount
