DS-2CE78U1T-IT3(8mm)

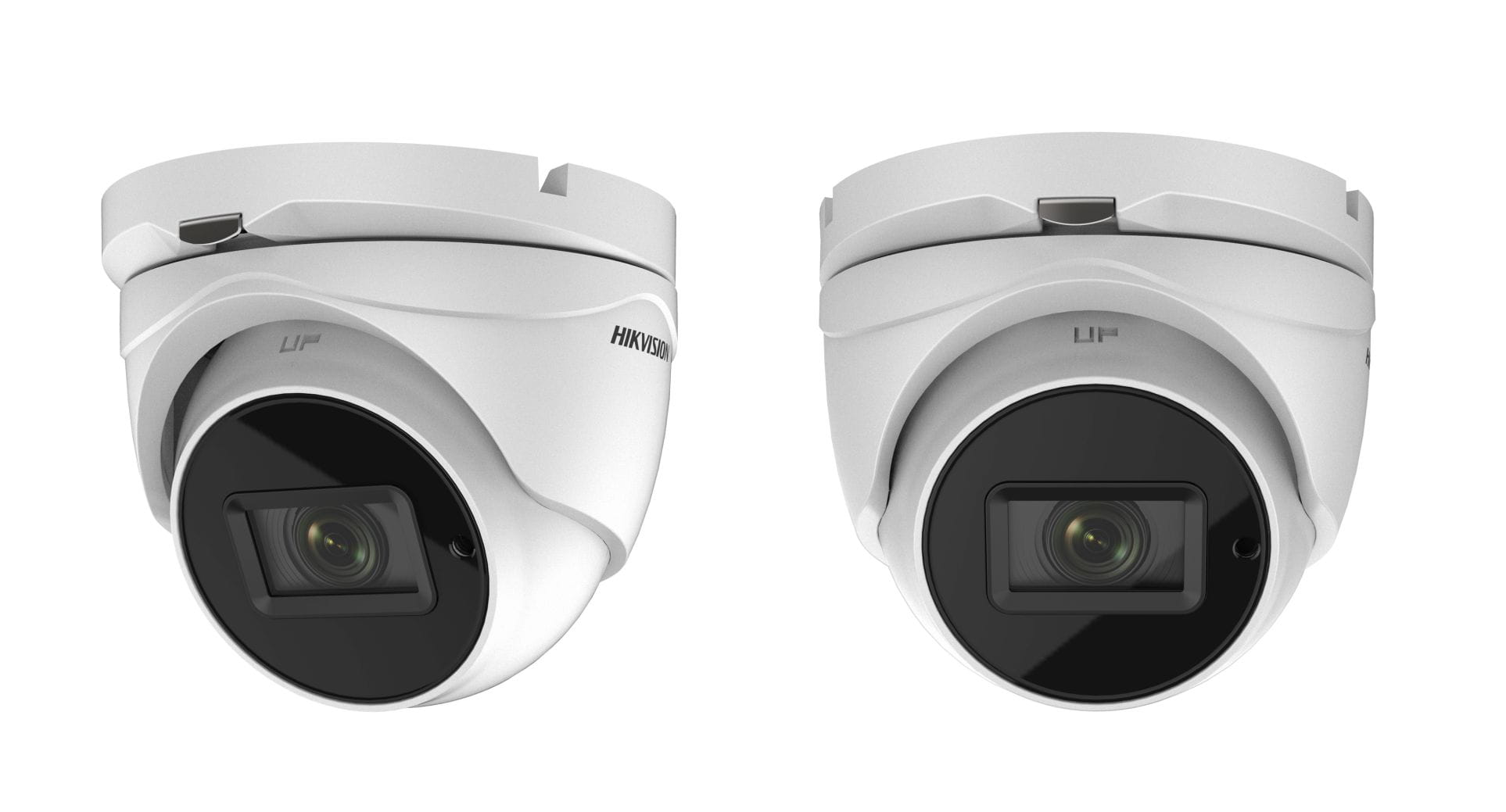

Kamera Turbo-HD Hikvision w obudowie typu turret. Rozdzielczość 8.3MP @12.5fps, Przetwornik 8MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, promiennik typu EXIR 2.0, dzień/noc ICR, WDR 120dB, Smart IR, AGC, 3D DNR, WB (ATW/MWB), BLC/HLC, 4 maski prywatności, 4 strefy detekcji ruchu, sterowanie po kablu koncentrycznym Hikvision-C (HD-TVI), obiektyw: 8mm, kąty: 103.5. IP67, 3-osiowa regulacja położenia. Wbudowana czyjka PIR, zasięg 11m, kąt: 110st.. Białe światło alarmowe. Wymiary: śr.109.8x93.2mm, waga 350g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 8.29 MP high performance CMOS
 3840 x 2160 resolution
 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
 EXIR 2.0, smart IR, up to 60 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67
 Up the coax (HIKVISION-C)

DS-2CE78U1T-IT3F
8 MP Turret Camera



Camera
Image Sensor 8.29 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 2MP@25fps,
2MP@30fps
CVI: 8MP@12.5fps, 8MP@15fps
AHD: 5MP@20fps
CVBS: 960H P/N
Resolution 3840 (H) x 2160 (V)
Min. Illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm), 37.73° (8 mm), 23.96° (12 mm)
Lens Mount M16
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
DWDR (Digital Wide Dynamic Range) 105 dB
Menu
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
BLC (Backlight Compensation) Yes
Language English
Functions Brightness, Sharpness, DNR, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply 12 VDC ±25%
Power Consumption Max. 5.3 W
Protection Level IP67
Material
Enclosure: Plastic
Main body: Metal
IR Range Up to 60 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions Ø 109.82 mm x 91.03 mm (Ø 4.32" x 3.6" )
Weight Approx. 320 g (0.71 lb.)
Specification



Order Models
DS-2CE78U1T-IT3F
Dimension
91
.03
mm
(
3
.6
" )





Accessory









DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1281ZJ-S
Inclined Ceiling Mount






DS-1280ZJ-S
Junction Box
