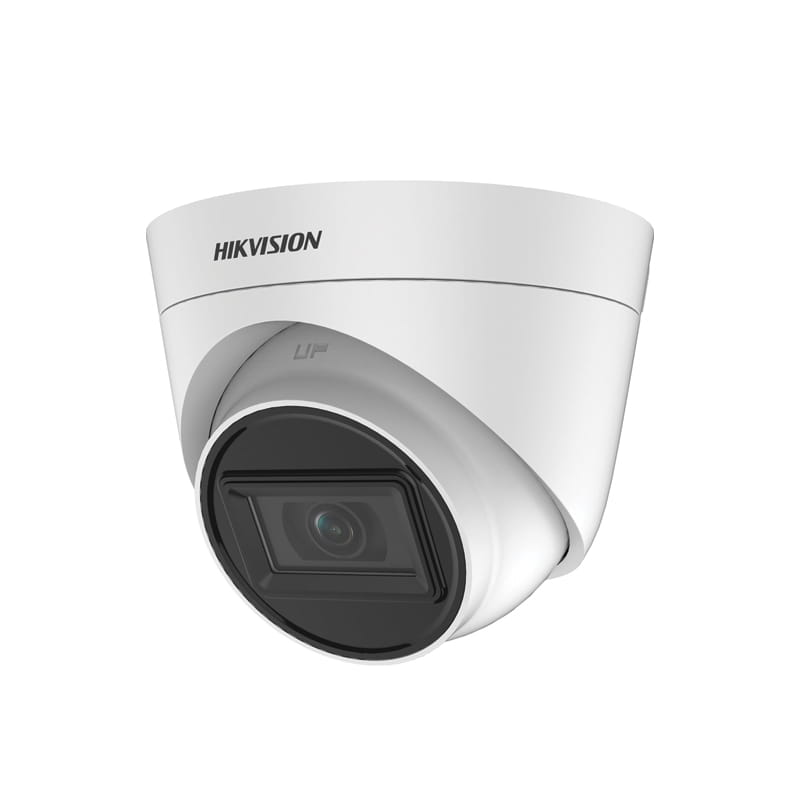

DS-2CE78H0T-IT3E(3.6mm)(C)

Kamera analogowa Turret 5MP PoC, przetwornik 5 MP CMOS, rozdzielczość 2560 (H) × 1944 (V); Min. Oświetlenie: 0.01 Lux @ (F2.0, AGC ON), 0 Lux dla IR; Obiektyw: 3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°; Cyfrowy WDR, BLC, HLC, 2D DNR; 1 wyjście analogowe HD; Zasięg IR do 40m, Temp pracy - 40°C do 60°C; Zasilanie 12 VDC±15%/PoC.at; IP67, Wymiary: 91.0 mm × Ø 109.8 mm; Waga 320 g...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE78H0T-IT3E(C)
5 MP PoC Fixed Turret Camera









 High quality imaging with 5 MP, 2560 x 1944 resolution
 2.8 mm and 3.6 mm fixed focal lens
 Up to 40 m IR distance for bright night imaging
 Water and dust resistant (IP67)







 Specification
Camera
Image Sensor 5 MP CMOS
Max. Resolution 2560 (H) x 1944 (V)
Min. Illumination 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm and 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV: 110°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 105°
Lens Mount M12
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, Smart IR
Frame Rate 5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR, BLC, HLC, Global
Noise Reduction 2D DNR
White Balance Auto/Manual
AGC Yes
Interface
Video Output 1 HD analog output
General
Material
Front Cover: Plastic
Main Body: Metal
Dimension 91.0 mm x Ø109.8 mm (3.58" x Ø4.32")
Weight Approx. 326 g (0.72 lb.)
Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply
12 VDC ±25%/PoC.af
*You are recommended to use one power adapter for one camera, and use 2-pin
power supply for long-distance power supply.
Consumption Max. 3 W
IR Range Up to 40 m
Approval
Protection IP67

 Available Model
DS-2CE78H0T-IT3E(C)



 Dimension




 Accessory
 Optional
DS-1280ZJ-TR13
Junction Box
DS-1275ZJ-SUS
Vertical pole
mount
DS-1280ZJ-S
Junction Box
DS-1272ZJ-110-TRS
Wall mount
DS-1276ZJ-SUS
Corner mount









DS-1281ZJ-S
Inclined ceiling
mount
