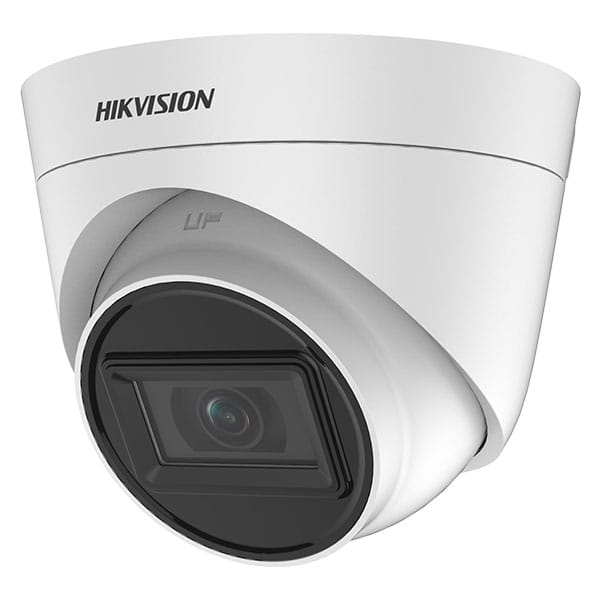

DS-2CE78H0T-IT1F(2.8mm)(C)

Kamera typu Turret 5 MP CMOS, rozdzielczość: 2560 (H) x 1944 (V); TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps; Min. Oświetlenie: 0.01 Lux@(F1.2, AGC ON), 0 Lux z IR, Obiektyw 2.8mm,, HFOV: 85st., VFOV: 63st., DFOV: 110st.; Cyfrowy WDR, AGC,BLC, HLC; Przełączalne wyjścia wideo: TVI/AHD/CVI/CVBS; Temperatura pracy -40 st.C do 60 st.C; Zasilanie: 12 VDC +/- 25%; IP67; Zasięg IR 30 m; Wymiary: śr. 109.82 mm x 91.03 mm Waga: 303g...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE78H0T-IT1F(C)
5 MP Camera




• 5 MP, 2560 x 1944 resolution
• 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Smart IR, up to 30 m IR distance
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67



Specification

Camera
Image Sensor5 MP CMOS
Signal SystemPAL/NTSC
Resolution2560 (H) x 1944 (V)

Frame Rate
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps
AHD: 5M@20fps, 4M@30fps, 4M@25fps
CVI: 4M@30fps, 4M@25fps
CVBS: PAL/NTSC

Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Lens2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens

Field of View
2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°
2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°
3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°
6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°

Lens MountM12
Day & NightICR
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
AE (Auto Exposure) ModeDWDR/BLC/HLC/Global
Noise Reduction2D DNR
LanguageEnglish
FunctionBrightness, Sharpness, Mirror, Smart IR
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply12 VDC ± 25%
Power ConsumptionMax. 4.3 W
Protection LevelIP67

Material
Front Cover: Plastic
Main Body: Metal


General
IR RangeUp to 30 m
CommunicationHIKVISION-C
DimensionsΦ 109.82 mm x 91.03 mm (Φ 4.32" x 3.60")
WeightApprox. 303 g (0.67 lb.)

Available Model
DS-2CE78H0T-IT1F(C)
Dimension

Accessory

DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount


DS-1280ZJ-S
Junction Box
DS-1281ZJ-S
Inclined Ceiling Mount
DS-1280ZJ-TR13
Junction Box
