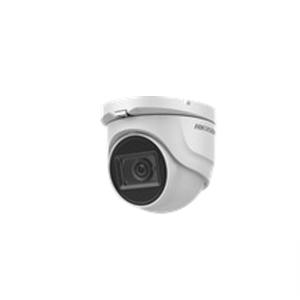

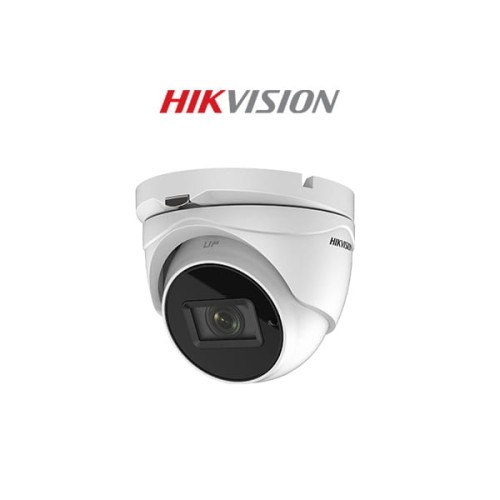

DS-2CE76U7T-ITMF(6mm)

Kamera TurboHD w obudowie typu turret, rozdzielczość 8.3MP @ 12.5fps (domyślnie), 5MP @ 20fps, 4MP @ 25fps (P) / 30fps (N), 2MP @ 25fps (P) / 30fps (N), EXIR, 30m IR, zewnętrzna wieża EXIR, ICR, 0,003 Lux /F1.2, 12VDC, Smart IR, 130dB True WDR, 3D DNR, Menu OSD (Up Coax), obiektyw IP67,6mm, obsługa wyjścia sygnału wideo TVI / AHD / CVI / CVBS...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Feature
 8.29 MP, 3840 x 2160 resolution
 Ultra-low light
 130 dB true WDR, 3D DNR
 2.8 mm, 3.6 mm, 6 mm fixed lens
 Smart IR, up to 30 m IR distance
 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
 IP67

DS-2CE76U7T-ITMF
8 MP Ultra-Low Light Camera




Camera
Image Sensor 8.29 MP CMOS
Signal System PAL/NTSC
Frame Rate
TVI: 8MP@12.5fps, 8MP@15fps, 5MP@20fps, 4MP@25fps, 4MP@30fps, 1080P@25fps,
1080P@30fps
AHD: 8MP@12.5fps, 8MP@15fps
CVI: 8MP@12.5fps, 8MP@15fps
CVBS: P/N
Resolution 3840 (H) x 2160 (V)
Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/12.5 s to 1/50,000 s
NTSC: 1/15 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 102° (2.8 mm), 79° (3.6 mm), 51° (6 mm)
Lens Mount M16
Day & Night ICR
WDR (Wide Dynamic Range) ≥130 dB
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Menu
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode Global/BLC/HLC/WDR
Noise Reduction 3D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply
12 VDC ± 25%
*You are recommended to use one power adapter to supply the power for one camera.
Power Consumption Max. 4.2 W
Protection Level IP67
Material Metal
IR Range Up to 30 m
Communication HIKVISION-C
Dimensions 90 mm x 79.37 mm (3.54" x 3.12")
Weight Approx. 310 g (0.68 lb.)
Specification


Order Model
DS-2CE76U7T-ITMF
Dimension
79
.37
mm
(3
.12
" )
90
mm
(3
.54
" )
Ø 60 mm (2.36" )
3-Ø 4.5 mm
(0.18" )
Ø 82.6 mm
(3.25" )
120°





Accessory









DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-XS
Junction Box
