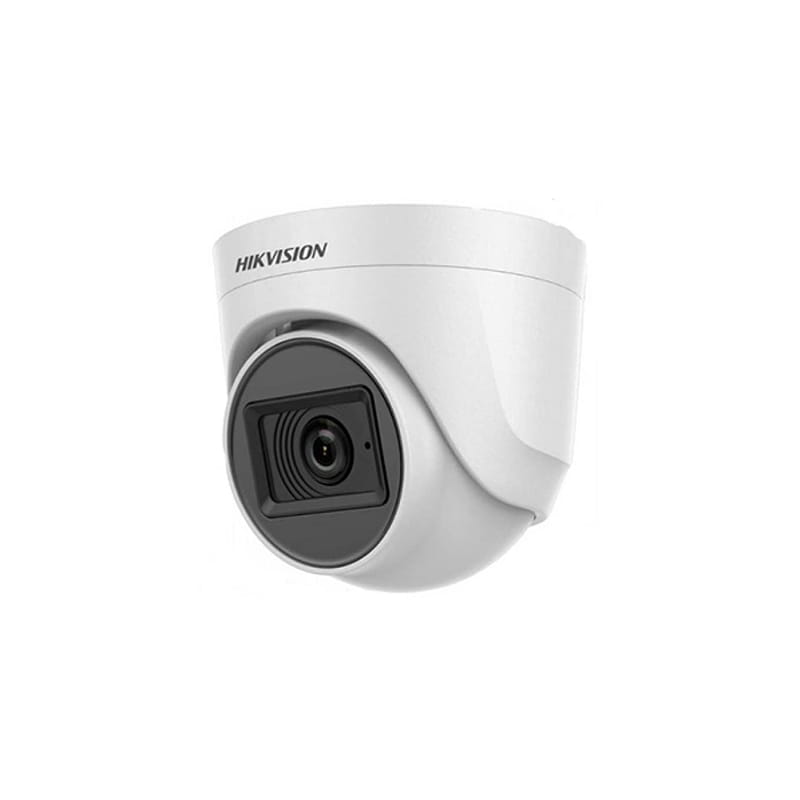

DS-2CE76D0T-ITPF(2.8mm)(C)

Kamera analogowa Turbo-HD 4w1 (HD-TVI, HD-CVI, AHD, CVBS) Turret 2MP, przetwornik CMOS, Kolor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux dla IR, Cyfrowy WDR, BLC, HLC, 2D DNR, AGC; Obiektyw 2.8mm HFOV 101°, VFOV: 60°, DFOV: 122°; Menu OSD (po koncentryku), Zasięg IR do 20m; Zasilanie: 12 VDC, Temperatura pracy: -40°C do 60°C, Wymiary: Φ 84.6 mm × 78.9 mm waga 135g, Materiał: Plastik....

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE76D0T-ITPF (C)
2 MP Camera




• 2 MP, 1920 x 1080 resolution
• 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• Smart IR, up to 20 m IR distance



Specification

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Resolution1920 (H) x 1080 (V)

Frame Rate
TVI: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC

Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Lens2.8 mm, 3.6 mm, 6 mm fixed lens

Field of View
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens MountM12
Day & NightICR
WDR (Wide Dynamic Range)Digital WDR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
AE (Auto Exposure) ModeDWDR/BLC/HLC/Global
Noise Reduction2D DNR
LanguageEnglish
FunctionBrightness, Sharpness, Smart IR
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply12 VDC ± 25%
Power ConsumptionMax. 2.2 W
MaterialPlastic
IR RangeUp to 20 m
CommunicationHIKVISION-C


General
DimensionsΦ 84.6 mm x 78.9 mm (Φ 3.33" x 3.11")
WeightApprox. 135 g (0.30 lb.)

Available Model
DS-2CE76D0T-ITPF (C)
Dimension

Accessory

DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-XS
Junction Box
