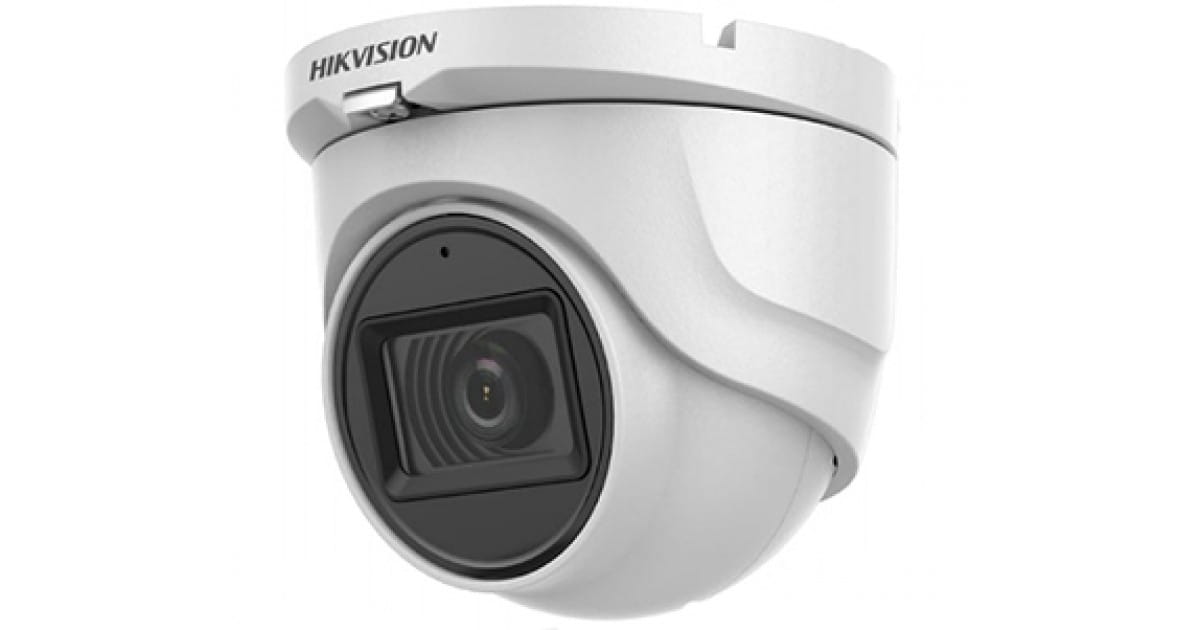

DS-2CE76D0T-ITMFS(3.6mm)

Kamera analogowa Hikvision typu Turret. Rozdzielczość 1920x1080@25kl/s, przetwornik 2MP CMOS, czułość: 0.01Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 30m, dzień/noc ICR, Smart IR, WDR cyfrowy, AGC, 2D DNR, BLC/HLC, protokół komunikacji Hikvision-C, obiektyw: 3.6mm, kąt widzenia: 79.6st.. IP67, 3-osiowa regulacja położenia, format wideo 4w1: TVI/AHD/CVI/CVBS. Wbudowany mikrofon, audio coaxial. Wymiary: 82.690x79.37 mm , waga 289.5g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC...

Gwarancja: 36 mies.

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

DS-2CE76D0T-ITMFS
2 MP Audio Camera




• 2 MP, 1920 x 1080 resolution
• 2.8 mm, 3.6 mm, 6 mm fixed focal lens
• Smart IR, up to 30 m IR distance
• Audio over coaxial cable, built-in mic
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67



Specification

Camera
Image Sensor2 MP CMOS
Signal SystemPAL/NTSC
Resolution1920 (H) x 1080 (V)

Frame Rate
TVI: 1080P@30fps, 1080P@25fps
AHD: 1080P@30fps, 1080P@25fps
CVI: 1080P@30fps, 1080P@25fps
CVBS: PAL/NTSC

Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR

Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s

Lens2.8 mm, 3.6 mm, 6 mm fixed lens

Field of View
2.8 mm, horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
6 mm, horizontal FOV: 51.9°, vertical FOV: 30°, diagonal FOV: 58.8°

Lens MountM12
Day & NightICR
WDR (Wide Dynamic Range)Digital WDR
AudioBuilt-in mic
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Menu
Image ModeSTD/HIGH-SAT
AGCYes
Day/Night ModeAuto/Color/BW (Black and White)
White BalanceAuto/Manual
AE (Auto Exposure) ModeDWDR/BLC/HLC/Global
Noise Reduction2D DNR
LanguageEnglish
FunctionBrightness, Sharpness, Mirror, Smart IR
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
Power Supply12 VDC ± 25%
Power ConsumptionMax. 3.7 W
Protection LevelIP67
MaterialMetal
IR RangeUp to 30 m


General
CommunicationHIKVISION-C
Dimensions82.6 mm x 90 mm x 79.37 mm (3.25" x 3.54" x 3.12")
WeightApprox. 289.5 g (0.64 lb.)

Available Model
DS-2CE76D0T-ITMFS
Dimension

Accessory

DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-XS
Junction Box
