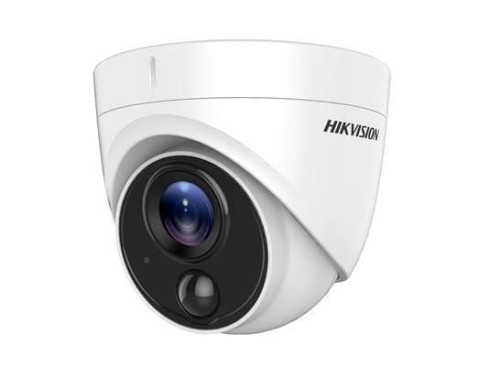

DS-2CE71D0T-PIRLPO(3.6mm)

Kamera Turbo-HD Hikvision w obudowie typu Turret. Rozdzielczość 1920x1080, Przetwornik 2MP CMOS, 0.01 Lux/F1.2, zasięg IR do 20m, promiennik typu EXIR 2.0, dzień/noc ICR, Smart IR, OSD menu, obiektyw: 2.8mm. IP67, 3-osiowa regulacja położenia. Wbudowana czyjka PIR, alarm stroboskopowy, wyjście alarmowe. Zasilanie 12VDC....

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Feature
 2 MP CMOS
 1920 x 1080 resolution
 2.8 mm, 3.6 mm fixed focal lens
 PIR detection, strobe light alarm, alarm out
 Smart IR, up to 20 m IR distance
 IP67
 HIKVISION-C

DS-2CE71D0T-PIRLPO
2 MP PIR Turret Camera




Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. Illumination 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm fixed lens
Horizontal Field of View 103° (2.8 mm), 82.2° (3.6 mm)
Lens Mount M12
Strobe Light Alarm Yes
Day & Night ICR
WDR Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
Menu
White Light Alarm/Off
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto/Manual
AE (Auto Exposure) Mode DWDR/BLC/HLC/Global
Noise Reduction 2D DNR
Language English
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
Alarm 1 alarm out
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 25%
Power Consumption Max. 2.9 W
Ingress Protection IP67
Material
Enclosure: Plastic
Main body: Plastic
IR Range Up to 20 m
PIR Angle and Range Angle: 110°, Range:11 m
White Light Range Up to 20 m
Communication HIKVISION-C
Dimensions Φ 109.8 mm x 89.75 mm (Φ 4.32" x 3.53")
Weight Approx. 237 g (0.52 lb.)

Specification



Dimension
Ø

1
0
9
.
8
2

m
m

(
4
.
3
2"

)
Ø

8
5

m
m

(
3
.
3
5"

)
8
9.
7
5

m
m

(
3
.
5
3"

)
Ø

4
.
2

m
m

(
0
.
1
6
5
"

)


Accessary




DS-1272ZJ-110-TRS Wall Mount


DS-1275ZJ-SUS Vertical Pole Mount


DS-1276ZJ-SUS Corner Mount


DS-1280ZJ-S Junction Box





DS-1281ZJ-S Inclined Ceiling Mount




Order Model
DS-2CE71D0T-PIRLPO
010000181220
