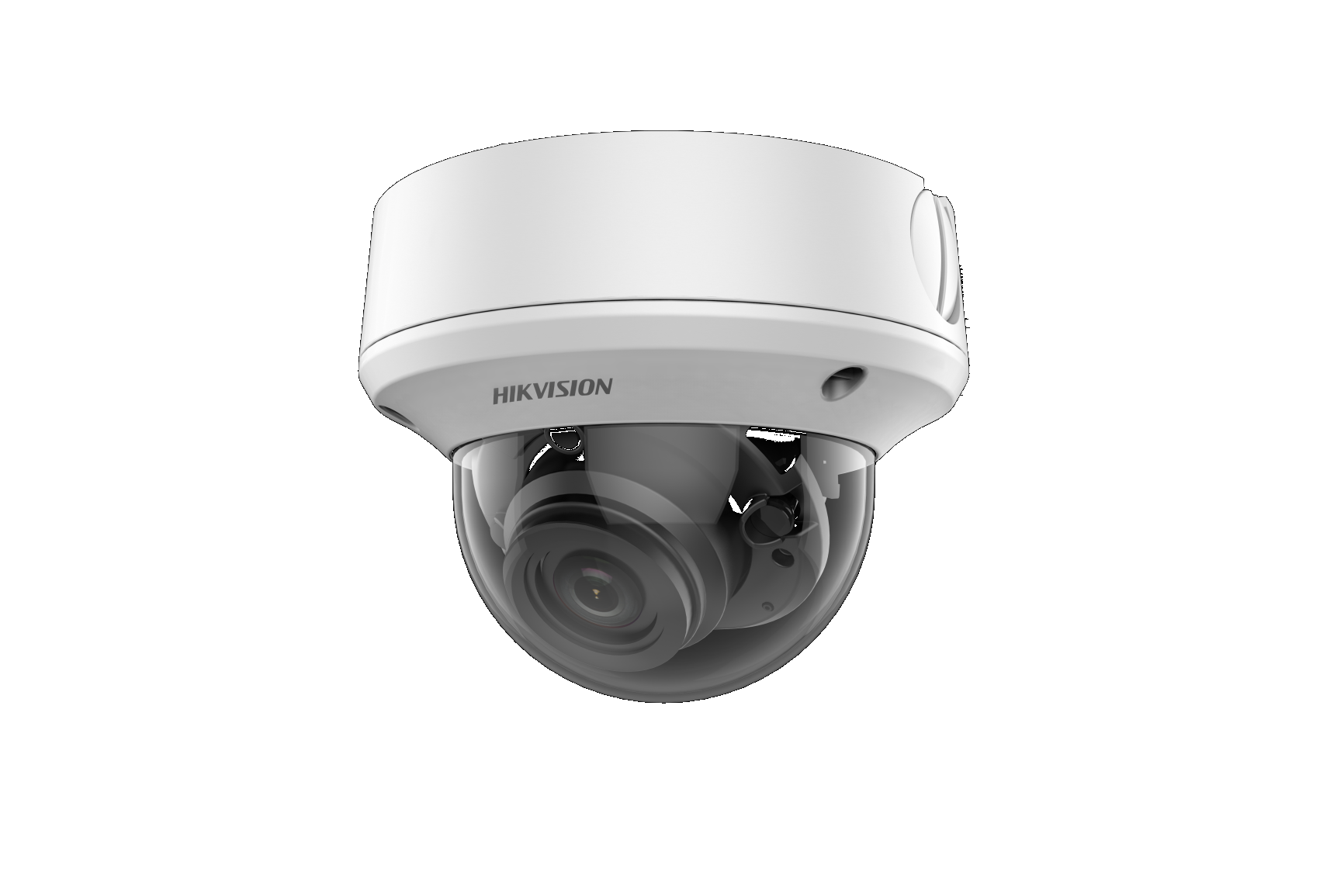

DS-2CE5AD8T-VPIT3Z(2.8-12mm)

Kamera Turbo-HD Hikvision w obudowie kopułowej. Rozdzielczość PAL:1080p@25kl/s, NTSC: 1080p@30kl/s Przetwornik 2MP CMOS, czułość: 0.005Lux (F1.2, wł. AGC), 0 Lux z IR, zasięg IR do 40m, promiennik typu EXIR, dzień/noc ICR, Smart IR, 120dB true WDR, AGC, DNR, WB, BLC, obiektyw: 2.8-12mm, kąt widzenia 103-32.1st.. IP67, IK10, 3-osiowa regulacja położenia. Wymiary: Ø 141 mm x 99.9 mm , waga 800g. Temperatura pracy -40st.C~60st.C. Zasilanie 12VDC...

Gwarancja: 36 mies.

Uwaga! Produkt wycofany z produkcji!

Karta katalogowa

Tekstowa zawartość karty katalogowej PDF:

Key Features
 2 MP high performance CMOS
 Ultra-Low Light
 1920 x 1080 resolution
 Auto focus, 2.8 mm to 12 mm motorized vari-focal lens
 120 dB true WDR, 3D DNR
 EXIR 2.0, Smart IR, up to 40 m IR distance
 IP67
 Up the Coax (HIKVISION-C)

DS-2CE5AD8T-IT3Z
2 MP Ultra-Low Light VF Turret Camera



Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Min. illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shutter Max. 16 times
Lens 2.8 mm to 12 mm motorized vari-focal lens
Horizontal Field of View 32.1° to 103°
Lens Mount Φ14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range) > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (Black and White)
White Balance ATW/MANUAL
Privacy Mask ON/OFF, 4 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
3D DNR (Digital Noise Reduction) Level 1 to 10
Language English, Chinese
Functions Brightness, Sharpness, Mirror, Smart IR
Interface
Video Output 1 HD analog output
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Power Supply
12 VDC ±25%
-A: 12 VDC ±25%, 24 VDC ±25%
Power Consumption Max. 7.5 W
Ingress Protection IP67
Material Metal & Plastic
IR Range Up to 40 m
Communication Up the coax, Protocol: HIKVISION-C (TVI output)
Dimensions 134.3 mm x 123.9 mm x 111.4 mm (5.29" x 4.88" x 4.39")
Weight Approx. 750 g (1.57 lb.)
Specification



Order Models
DS-2CE5AD8T-IT3Z
Dimension
Φ 90 mm(3.54")
3-Φ4.5 mm
(0.18")
120°
123.86 mm (4.88")
123.86 mm
(4.876")
1
1
1
.
3
5

m
m

(
4
.
3
8
4
"
)
1
3
4
.
3

m
m

(
5
.
2
9
"
)


Accessory

DS-1273ZJ-130-TRL
Wall Mounting Bracket

DS-1275ZJ
Vertical Pole Mounting Bracket

DS-1276ZJ
Corner Mounting Bracket

DS-1280ZJ-M
Junction Box

DS-1281ZJ-S
Inclined Ceiling Mounting Bracket

DS-1H18
Video Balun
